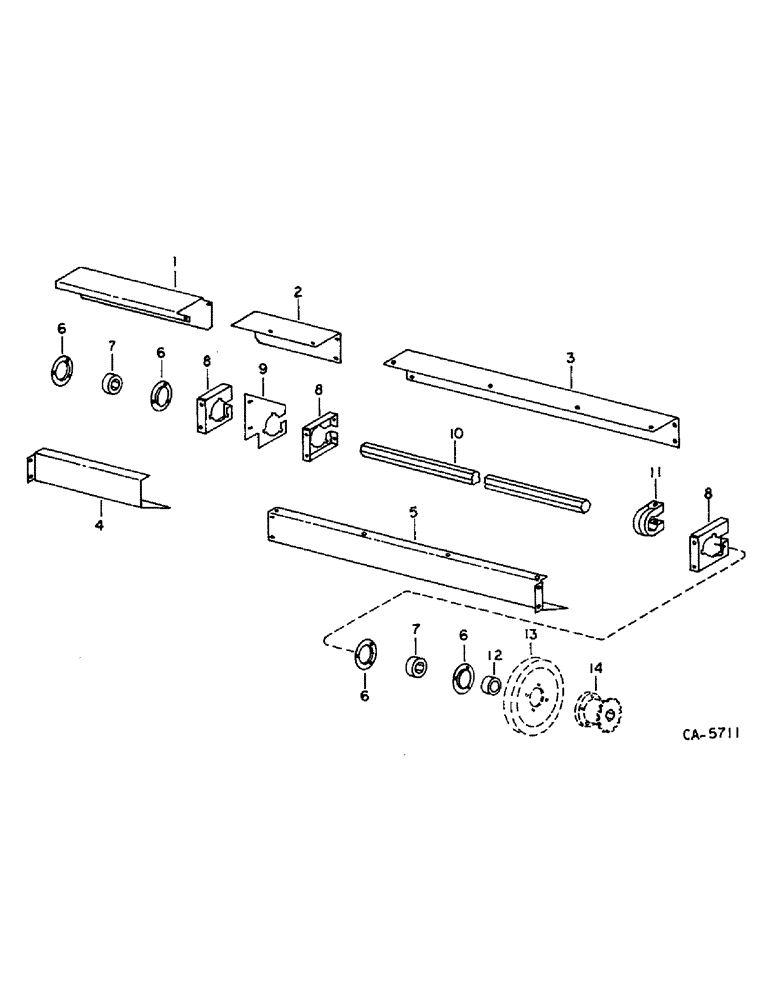

Запчасти Case IH 820 (D-35) - HEADER JACKSHAFT, HEADER, JACKSHAFT DRIVE (58) - ATTACHMENTS/HEADERS

1

178253C1

COVER

jackshaft coupling

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

546766R1

HEADED PIN,3/8" x 5 1/2"

PIN, 3/8 x 5.500 hd type 1

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

2

178252C1

SHIELD

jackshaft rear inner, for 20 and 22.5 ft

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

5шт.

3

197399C2

GUARD

SHIELD, jackshaft upper, 13.0 ft

1шт.

3

197400C2

SHIELD

jackshaft upper, 15.0 ft

1шт.

3

197401C2

SHIELD

jackshaft upper, 16.5 ft

1шт.

3

197402C2

SHIELD

jackshaft upper, 17.5 ft

1шт.

3

178247C3

GUARD

SHIELD, jackshaft upper, 20.0 ft

1шт.

3

197172C3

GUARD

SHIELD, jackshaft upper, 22.5 ft

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

4

179256C1

GUARD ASSY.

SHIELD ASSY, front inner, for 20 and 22.5 ft

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

5

197389C1

GUARD ASSY.

SHIELD ASSY, jackshaft lower, 13.0 ft

1шт.

5

197390C1

GUARD ASSY.

SHIELD ASSY, jackshaft lower, 15.0 ft

1шт.

5

197391C1

GUARD ASSY.

SHIELD ASSY, jackshaft lower, 16.5 ft

1шт.

5

197392C1

GUARD ASSY.

SHIELD ASSY, jackshaft lower, 17.5 ft

1шт.

5

178241C2

SHIELD

ASSY, jackshaft lower, 20.0 ft

1шт.

5

197171C2

SHIELD

ASSY, jackshaft lower, 22.5 ft

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

6

180955C1

FLANGED BEARING,0.375"

FLANGE, outboard bearing, 2 for 13, 15, 16.5 and 17.5 ft, 4 for 20 and 22.5 ft

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

7

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, outboard, 1 for 13, 15, 16.5 and 17.5 ft, 2 for 20 and 22.5 ft

1шт.

8

178254C1

SUPPORT

jackshaft shield, 2 for 13, 15, 16.5 and 17.5 ft, 4 for 20 and 22.5 ft

1шт.

9

189953C1

SUPPORT

BRACKET, jackshaft bearing, for 20 and 22.5 ft

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

2шт.

10

176880C1

JACKSHAFT

13.0 ft

1шт.

10

176881C1

JACKSHAFT

15.0 ft

1шт.

10

197167C1

JACKSHAFT

16.5 ft

1шт.

10

176882C1

JACKSHAFT

17.5 ft

1шт.

10

176883C1

JACKSHAFT

20.0 ft

1шт.

10

197168C1

JACKSHAFT

22.5 ft

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

608085R1

WASHER

1.406 x 2.000 x .054

1шт.

11

225265R1

CLAMP

COLLAR, jackshaft, replaces 177961C1

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 znd type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

12

24475R1

SPACER

1-1/4 x 1-3/48 std pipe

1шт.

13

PULLEY ASSY, drive, refer to this section group 4 under auger and knife drive

1шт.

14

SPROCKET, auger drive, 18T, refer to this section group 4 under auger and knife drive

1шт.
