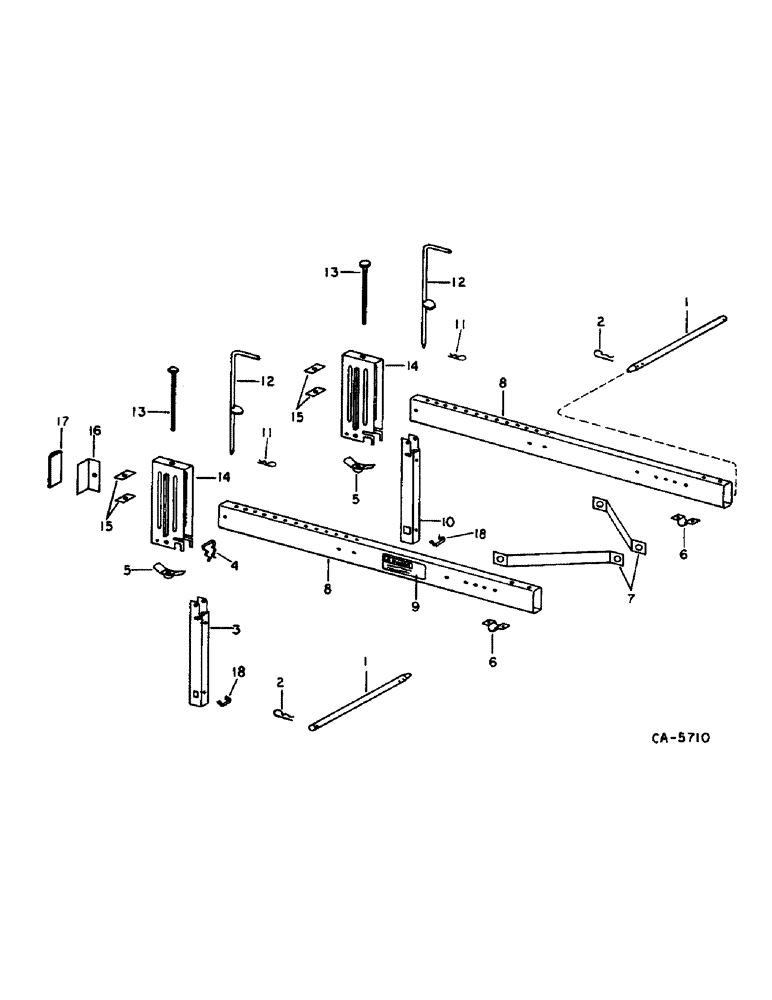

Запчасти Case IH 820 (D-34) - REEL, REEL SUPPORT ARMS (58) - ATTACHMENTS/HEADERS

1

197959C2

AXLE PIN

ROD, upper pivot

2шт.

21885R1

WASHER

1.031 x 2.000 x .054

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

2

517843R1

COTTER PIN

PIN, 3/16 QA cot

2шт.

3

187320C2

SUPPORT

safety cylinder LH

1шт.

4

184875C1

CLIP

safety stand support

2шт.

5

177531C1

FLANGE NUT

NUT ASSY, wing

2шт.

6

187483C1

CLAMP

reel arm

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

4шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 znd type 5

4шт.

7

176786C1

BRACE

reel support arm

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

8

184593C91

ARM

reel support, includes ref no. 9

2шт.

9

185944C1

PRODUCT GRAPHIC

caution

1шт.

10

187320C2

SUPPORT

safety cylinder RH

1шт.

11

585614R1

PIN

.072 QA cot

2шт.

12

176788C2

ROD ASSY.

ROD ASSY, reel locking

2шт.

13

565171R1

BOLT,Hex, 1/2" - 13 x 10"

reel lift arm

2шт.

14

185747C1

YOKE

ASSY, reel lift

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

460908R1

WASHER

.531 x 1.500 x .105

10шт.

15

584813R1

STRIP

yoke stop

4шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 type 1

2шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 CAD p/t lock type 8

2шт.

16

185973C1

ANGLE

reflector support

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

17

174732C1

REFLECTOR

amber

1шт.

18

184876C1

CLAMP

CLIP, safety stand retaining

2шт.
