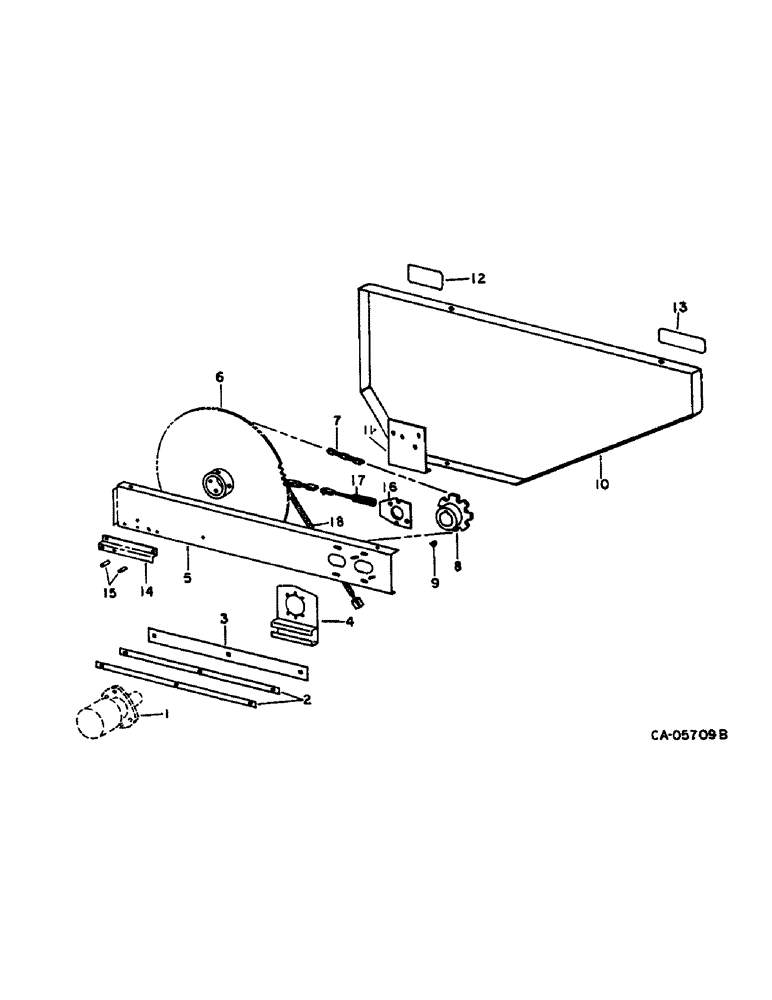

Запчасти Case IH 820 (D-32) - REEL, HYDRAULIC REEL DRIVE AND SHIELD (58) - ATTACHMENTS/HEADERS

1

173828C91

MOTOR, HYDRAULIC

MOTOR ASSY, hydraulic reel drive, refer to this section group 6 under hydraulic reel drive motor

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

607895R1

WASHER

.531 x 1.000 x .105

2шт.

2

189321C1

BAR

motor slider inner

2шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 crg type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

3

189320C1

BAR

motor slider outer

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 crg type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

4

189317C1

SUPPORT ASSY.

SUPPORT ASSY, hyd reel drive motor

1шт.

5

185511C2

SUPPORT ASSY.

SUPPORT ASSY, Serial Range: reel-motor

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

6

185517C1

DRIVE SPROCKET

SPROCKET ASSY, reel driven, 100T

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

16883D

CLEVIS PIN,7/16" x 2.781"

PIN, 7/16 x 2.781 pln clevis

2шт.

7

CHAIN ASSY, reel drive, serial no. 15000 and below or for use w/combine w/o electro hydraulic control system, use 79 links from 10 ft roll marked 569089R91, 1 connecting link 587372R91

1шт.

7

CHAIN ASSY, reel drive, serial no. 15001 and above or for use w/combine w/elector hydraulic control system, use 79 links from 10 ft roll marked 569089R1, 1 connecting link 587372R1 and 1 offset link, 456929R91

1шт.

8

164961C2

SPROCKET ASSY.

SPROCKET, reel drive, 7T, serial no. 15000 and below or for use w/combine w/o electro hydraulic control system

1шт.

8

1305993C2

SPROCKET

ASSY, drive, 17T, serial no. 15001 and above or for use w/combine w/electro hydraulic control system

1шт.

23236R1

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW, 3/8NF X3/8 znp c/pt hdl/hs set

1шт.

9

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

10

184743C91

GUARD ASSY.

SHIELD ASSY, reel drive, includes ref nos. 12 and 13

1шт.

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

1/4-20 x 1/2 thumb

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

11

185513C1

SUPPORT

shield

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

274993

SHIELD

3/8 CAD p/t lock type 1

2шт.

12

179749C2

PRODUCT GRAPHIC

danger

1шт.

13

185944C1

PRODUCT GRAPHIC

danger

1шт.

14

(Not used in this application)

1шт.

15

(Not used in this application)

1шт.

16

1301575C2

SUPPORT

reel speed

1шт.

17

1301241C1

SENSOR

CONVERTOR, reluctance

1шт.

107827

NUT,Stamped, 3/4"-16

3/4 C-Z stamped

1шт.

18

1301584C1

WIRE HARNESS

HARNESS ASSY, reel speed

1шт.
