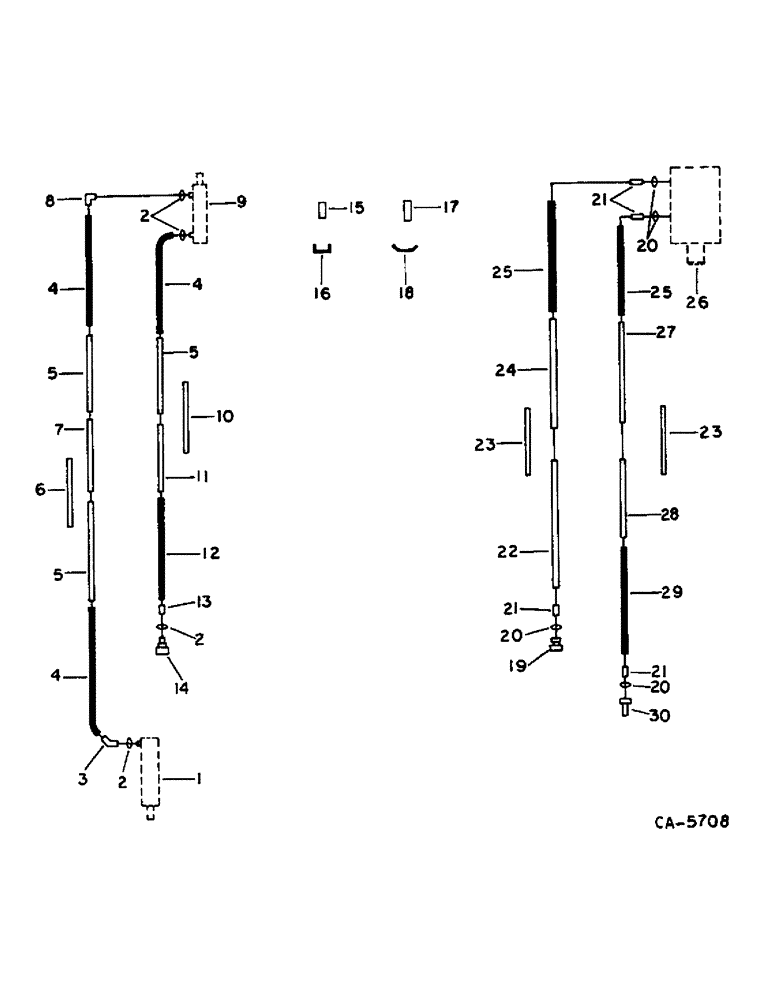

Запчасти Case IH 820 (D-29) - REEL, HYDRAULIC DIAGRAM, REEL DRIVE AND REEL LIFT (58) - ATTACHMENTS/HEADERS

1

532763R92

CYLINDER ASSY.

CYLINDER ASSY, hydraulic reel lift slave

1шт.

532531R92

SEAL KIT

KIT, o-ring and seal service, for components see cyl-1 parts catalog

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2.250 hd type 5

1шт.

23173R1

CLEVIS PIN

PIN, 1/2 x 2.750 hd type 5

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

3

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 45D

1шт.

4

336081R91

HOSE

ASSY, reel lift

3шт.

5

178812C1

HYD TUBE

TUBE ASSY, outer end

3шт.

6

172015C1

TUBE

ASSY, spacer, 36 in., 914.4 mm, for 13.0 ft

1шт.

6

178819C1

TUBE

ASSY, spacer, 60 in., 1524.0 mm, 1 for 15.0 ft, 2 for 20.0 ft

1шт.

6

197530C1

TUBE,0.375" OD

ASSY, spacer, 39 in., 990.6 mm, 2 for 16.5 ft

1шт.

6

178818C1

TUBE

ASSY, spacer, 45 in., 1143.0 mm, 2 for 17.5 ft

1шт.

6

197531C1

TUBE,75 mm Length

ASSY, spacer, 75 in., 1905.0 mm, 2 for 22.5 ft

1шт.

7

178811C1

HYD TUBE

TUBE ASSY, master to slave cylinder center

1шт.

8

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd tube 90 deg

1шт.

9

547358R94

CYLINDER BLOCK

CYLINDER ASSY, hydraulic reel lift master

1шт.

547388R94

SEAL KIT

KIT, o-ring and seal service, for components see cyl-1 parts catalog

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2.250 hd type 5

1шт.

23173R1

CLEVIS PIN

PIN, 1/2 x 2.750 hd type 5

1шт.

10

178817C1

TUBE,0.375" OD, 18" Length

ASSY, spacer, 18 in., 457.2 mm, for 13.0 ft

1шт.

10

162377C91

TUBE,30" Length

ASSY, spacer, 30 in., 762.0 mm, for 15.0 ft

1шт.

10

197530C1

TUBE,0.375" OD

ASSY, spacer, 39 in., 990.6 mm, for 16.5 ft

1шт.

10

178818C1

TUBE

ASSY, spacer, 45 in., 1143.0 mm, for 17.5 ft

1шт.

10

178819C1

TUBE

ASSY, spacer, 60 in., 1524.0 mm, for 20.0 ft

1шт.

10

197531C1

TUBE,75 mm Length

ASSY, spacer, 75 in., 1905.0 mm, for 22.5 ft

1шт.

11

178813C1

HYD TUBE,.375" OD, 35, 1.25" Length

TUBE ASSY, pressure to master cylinder center

1шт.

12

196856C1

HOSE ASSY.

HOSE ASSY, header to combine, for 1420, 1440 and 1460 combine w/47 in. feeder

1шт.

12

178962C1

HOSE ASSY.

HOSE ASSY, header to combine, for 1440, 1460 and 1480 combine w/54 in. feeder

1шт.

12

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

ASSY, header to combine, for 1480 combine w/60 in. feeder

1шт.

13

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short

1шт.

14

187563C1

COUPLING, QUICK, FEM

COUPLING ASSY, self sealing female

1шт.

15

61851V

SPACER,1/4" Pipe x 3/4"

Pipe 1/4" Pipe x 3/4"

4шт.

16

178816C1

CLIP

hose

4шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

17

163491C1

RUBBER INSULATOR

CUSHION, tube clamp, for reel drive

1шт.

17

163490C1

RUBBER INSULATOR

CUSHION, tube clamp, for reel lift

1шт.

18

165601C1

CLAMP

hydraulic tube, for reel drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd flange

1шт.

18

165602C1

CLAMP

hydraulic tube, for reel lift

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 znp slt-truss-hd

1шт.

19

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self sealing female

1шт.

20

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

4шт.

21

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 3/4-16 x 7/8-14 37 deg

4шт.

22

178853C1

HYD TUBE

TUBE, inner pressure

1шт.

23

935666R11

PIPE

TUBE, spacer, 12 in., 304.8 mm, for 15.0 ft

2шт.

23

172062C1

TUBE

spacer, 21 in., 533.4 mm, for 16.5 ft

2шт.

23

178856C1

TUBE

spacer, 27 in., 685.8 mm, for 17.5 ft

2шт.

23

178857C1

TUBE

spacer, 42 in., 1066.8 mm, for 20.0 ft

2шт.

23

175340C1

TUBE

spacer, 56.6 in., 1437.6 mm, for 22.5 ft

2шт.

24

178854C1

HYD TUBE

TUBE, outer pressure

1шт.

25

185853C1

HOSE

ASSY, hyd motor, 33 in., 838.2 mm

2шт.

26

173828C91

MOTOR, HYDRAULIC

MOTOR ASSY, hydraulic reel drive, refer to this section group 6 under hydraulic reel drive motor

1шт.

27

178852C1

HYD TUBE

TUBE, outer return

1шт.

28

178851C1

HYD TUBE

TUBE, inner return

1шт.

29

196858C1

HOSE ASSY.

HOSE ASSY, reel drive return, for 1420, 1440 and 1460 combine w/47 in. feeder

1шт.

29,

196878C1

HOSE

ASSY, reel drive return, for 1440, 1460 and 1480 combine, w/54 in. feeder

1шт.

29

179411C1

HOSE

ASSY, reel drive return, for 1480 combine w/60 in. feeder

1шт.

30

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self sealing male

1шт.
