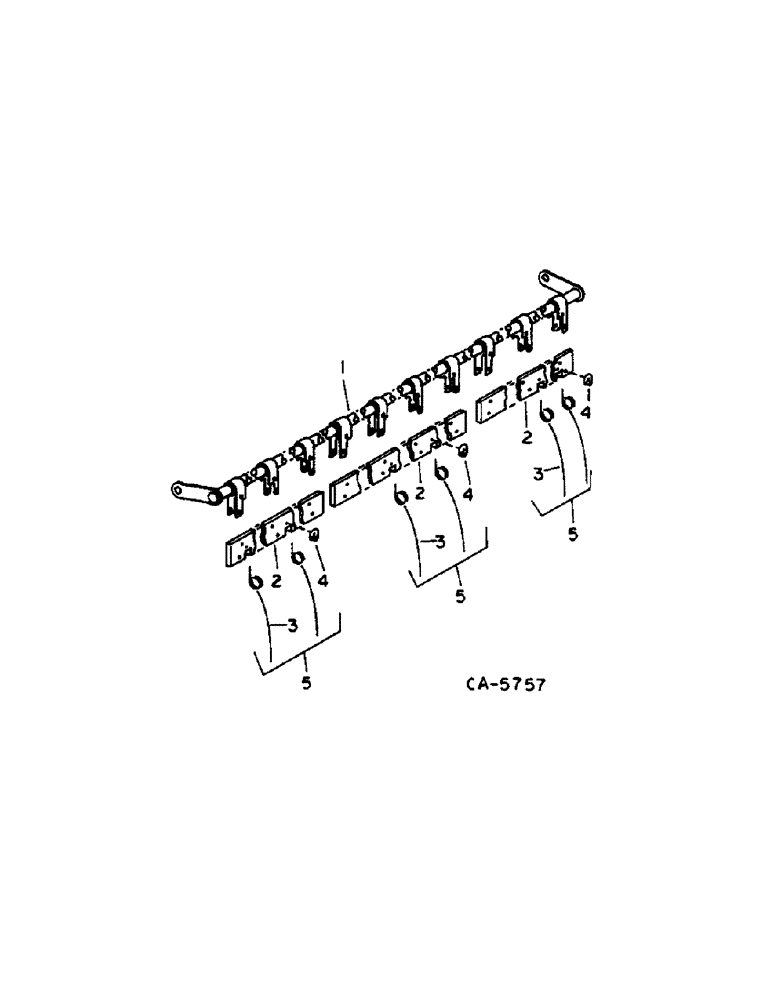

Запчасти Case IH 820 (D-28[A]) - REEL, BAT ASSY FOR 15, 17.5 AND 22.5 FT HEADER (58) - ATTACHMENTS/HEADERS

1

179232C2

BAT

SHAFT ASSY, bat, 15.0 ft

1шт.

1

179235C2

SHAFT

ASSY, bat, 17.5 ft

1шт.

1

185865C2

SHAFT

ASSY, bat, 22.5 ft

1шт.

23687R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1 3/8", Gr 2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 3/8", G2

1шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4 CAD p/t lock type 1

1шт.

2

BAT, wood, not serviced separately, order bat assy, ref no. 5

3шт.

3

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

1шт.

4

592616R1

CLIP

riveted tine

1шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

3/16 x 1 znp t/hd s/t

1шт.

5

179233C91

BAT ASSY.

BAT ASSY, 53 in., 1346.2 mm, for 15.0 ft

3шт.

5

598194R91

BAT ASSY.

BAT ASSY, 63 in., 1600.2 mm, for 17.5 ft

3шт.

5

185864C91

BAT

ASSY, 83 in. 2108.2 mm, for 22.5 ft, includes ref nos. 2, 3 and 4

3шт.
