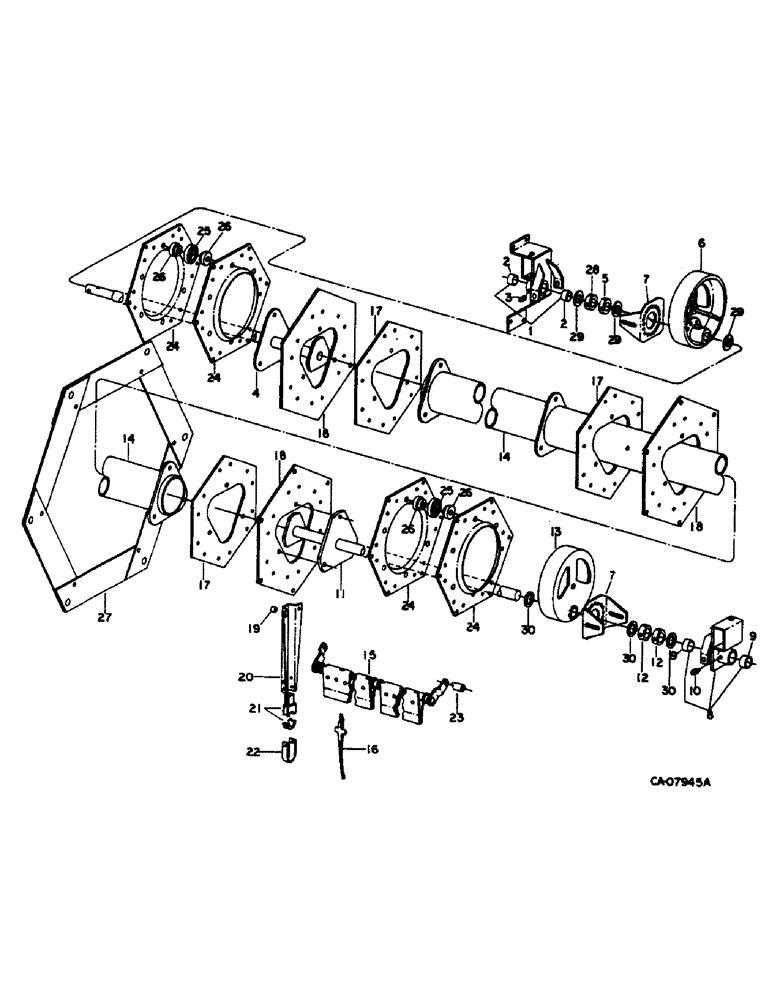

Запчасти Case IH 820 (D-24) - REEL, PICKUP REEL, LOVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
1313303C91
SUPPORT
W/BUSHINGS, drive shaft, includes ref. nos. 2 and 3
1шт.
2
1313304C1
BUSHING
1-1/2 in. ID
2шт.
4
1324512C1
SHAFT
drive, 29.9 in. long, 13.0 ft. only
1шт.
4
1324511C1
SHAFT
drive, 29.9 in. long, 15.0 ft., 16.5 ft., 17.5 ft., 20.0 ft
1шт.
4
1313309C2
SHAFT
drive, 29.6 in. long, all except 22.0 ft.
1шт.
4
1313461C1
SHAFT
drive, 22.0 ft. only
1шт.
609376R1
WASHER
1.781 x 2.500 x .105
2шт.
5
612267R1
COLLAR
1-11/16 in. ID
1шт.
426374
SET SCREW,Hex Soc, 3/8"-16 x 1/2"
SCREW, 3/8 x 1/2 c/pt znp hdl/s set
1шт.
6
1313325C1
CAM
eccentric
1шт.
7
1313305C1
CHANNEL, pitch control
2шт.
180145
BOLT,Hex, 7/16" - 14 x 1", Gr 5
7/16 x 1 type 5
1шт.
180147
SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5
BOLT, 7/16 x 1-1/4 type 5
1шт.
231-4117
LOCK NUT,7/16"-14, GB
NUT, 7/16 CAD p/t lock type 5
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
NLS
NO LONGER SERVICED
.469 x .922 x .051
1шт.
8
1313307C91
SUPPORT
W/BUSHING, eccentric end shaft, for 6 in. ID, 152.4 mm tube, includes ref. nos. 9 and 10
1шт.
8
1313306C91
SUPPORT
W/BUSHING, eccentric end shaft, for 8 in. ID, 203.2 mm tube, includes ref. nos. 9 and 10
1шт.
9
1313308C1
BUSHING
1-1/4 in. ID, for 6 in., 152.4 mm tube
2шт.
9
1313304C1
BUSHING
1-1/2 in. ID, for 8 in., 203.2 mm tube
2шт.
10
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
11
1313310C1
SHAFT
eccentric end, for 6 in. ID, 152.4 mm tube
1шт.
11
1313335C1
SHAFT
eccentric end, for 8 in. ID, 203.2 mm tube
1шт.
12
1313311C91
COLLAR
W/SET SCREW, for 6 in., 152.4 mm tube
1шт.
12
1313312C91
COLLAR
W/SET SCREW, for 8 in. ID, 203.2 mm tube
1шт.
426374
SET SCREW,Hex Soc, 3/8"-16 x 1/2"
SCREW, 3/8 x 1/2 c/pt znp hdl/s set
1шт.
13
1313324C1
CAM
eccentric, for 6 in., 152.4 mm tube
1шт.
13
1313326C1
CAM
eccentric, for 8 in. ID, 203.2 mm tube
1шт.
14
1313327C1
SUPPORT ASSY, center tube, for 13.0 ft
1шт.
14
1313328C1
SUPPORT ASSY, center tube, for 15.0 ft
1шт.
14
1313329C1
SUPPORT ASSY, center tube, for 16.5 ft
1шт.
14
1313330C1
SUPPORT ASSY, center tube, for 17.5 ft
1шт.
14
1313331C1
SUPPORT ASSY, center tube, for 20.0 ft
1шт.
14
1313337C1
SUPPORT ASSY, center tube, for 22.5 ft
1шт.
15
1324499C91
SHAFT
PACKAGE, support w/o tines, replaces support w/tines, 1313340C91
6шт.
Includes tine tool, 1316507C1, also order tine finger package, 1326469C1 as required
1шт.
15
1324501C91
SHAFT
PACKAGE, support w/o tines, 15.0 ft, replaces support w/tines, 1313341C91
6шт.
Includes tine tool, 1316507C1, also order tine finger package, 1326469C1 as required
1шт.
15
1324503C91
SHAFT
PACKAGE, support w/o tines, 16.5 ft, replaces support w/tines, 1313342C91
6шт.
Includes tine tool, 1316507C1, also order tine finger package, 1326469C1 as required
1шт.
15
1324505C91
SHAFT
PACKAGE, support w/o tines, 17.5 ft, replaces support w/tines 1313343C91
6шт.
Includes tine tool, 1316507C1, also order tine finger package, 1326469C1 as required
1шт.
15
1324507C91
SHAFT
PACKAGE, support w/o tines, 1313344C91
6шт.
15
1324509C91
SHAFT
PACKAGE, support w/tines, 1313345C91
6шт.
180151
BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5
7/16 x 1-3/4 type 5
1шт.
473213R1
LOCK NUT,7/16"-14, GB
NUT, 7/16-14 hex lock
1шт.
16
1326469C1
FINGER
PACKAGE, tine fing, pkg of 10, replaces tine, 1313314C1, bolt 180122, lock washer, 120383 and nut, 120377, consists of (NSS) finger (10), (NSS) screw (10)
1шт.
13.0 ft required 186 tines, 15.0 ft. requires 222 tines, 16.5 ft. required 246 tines, 17.5 ft. requires 270 tines, 20.0 ft. requires 306 tines, 22.0 ft. requires 348 tines
1шт.
17
1313333C1
FLANGE
SPIDER, small, for 6 in., 152.4 mm tube, 3 for 13.0 ft, 4 for 15.0 thru 20.0 ft
1шт.
17
1313334C1
FLANGE
SPIDER, small, for 8 in. ID, 203.2 mm tube, 5 for 22.5 ft
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
1шт.
180082
BOLT (SPREADER),Hex, 5/16" - 18 x 1 3/8", Gr 5
BOLT, 5/16 x 1-3/8 type 5
1шт.
9412083
NUT,5/16"-18, GB
NUT, 5/16 CAD p/t lock type 5
1шт.
18
1313332C1
SPIDER
large, for 6 in., 152.4 mm tube, 3 for 13.0 ft, 4 for 15.0 thru 20.0 ft
1шт.
18
1313336C1
FLANGE
SPIDER, large, for 8 in. ID, 203.2 mm tube, 5 for 22.5 ft
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
1шт.
180082
BOLT (SPREADER),Hex, 5/16" - 18 x 1 3/8", Gr 5
BOLT, 5/16 x 1-3/8 type 5
1шт.
9412083
NUT,5/16"-18, GB
NUT, 5/16 CAD p/t lock type 5
1шт.
19
371108R1
SPACER,3/8" Pipe x .844"
3/8 x .844 std, 48 for 13.0 ft, 60 for 15.0 thru 20.0 ft, 72 for 22.5 ft
1шт.
180149
LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5
BOLT, 7/16 x 1-1/2 type 5
1шт.
231-4117
LOCK NUT,7/16"-14, GB
NUT, 7/16 CAD p/t lock type 5
1шт.
20
1313319C1
SUPPORT
arm, 30 for 13.0 ft, 36 for 15.0 thru 20.0 ft, 42 for 22.5 ft
1шт.
180083
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
5/16 x 1-1/2 type 5
1шт.
9412083
NUT,5/16"-18, GB
NUT, 5/16 CAD p/t lock type 5
1шт.
21
1313462C1
KIT
BASE, batshaft bearing, 1 per support
1шт.
22
1313315C1
CLAMP
U-CLEVIS, bearing, 1 per support
1шт.
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
5/16 x 1-3/4 type 5
1шт.
180149
LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5
BOLT, 7/16 x 1-1/2 type 5
1шт.
9412083
NUT,5/16"-18, GB
NUT, 5/16 CAD p/t lock type 5
1шт.
473213R1
LOCK NUT,7/16"-14, GB
NUT, 7/16-14 hex lock
1шт.
23
1313301C1
BUSHING
reel arm outboard
12шт.
180155
BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5
7/16 x 2-1/4 type 5
1шт.
1313463C1
FLANGE NUT
NUT, 7/16 flange p/t lock
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
21762R1
WASHER
.906 x 1.375 x .120
1шт.
24
1313317C1
FLANGE
eccentric end spider
4шт.
180082
BOLT (SPREADER),Hex, 5/16" - 18 x 1 3/8", Gr 5
BOLT, 5/16 x 1-3/8 type 5
1шт.
180083
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
5/16 x 1-1/2 type 5
1шт.
9412083
NUT,5/16"-18, GB
NUT, 5/16 CAD p/t lock type 5
1шт.
25
538961R91
BEARING ASSY,19.995 mm ID x 46.995 mm OD x 13.94 mm
BEARING ASSY, eccentric roller
12шт.
26
1313323C1
WASHER
bearing
24шт.
27
1313339C1
SHIELD
right end
1шт.
27
1313338C1
SHIELD
left end
1шт.
1324493C1
SHIELD
solid
2шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16 x 3/4 znp hex/hd flg lock
1шт.
188471C1
FLANGE NUT,Flg, 5/16"-18
NUT, 5/16 flange p/t lock
1шт.
28
612267C1
STUD
COLLAR, 1-11/16 in. ID
1шт.
426374
SET SCREW,Hex Soc, 3/8"-16 x 1/2"
SCREW, 3/8 x 1/2 c/pt znp hdl/s set
2шт.
29
609376R1
WASHER
1.781 x 2.500 x .105
2шт.
30
22482R1
WASHER
1.406 x 2.250 x .105, for 6 in. ID, 152.4 mm tube
2шт.
30
21718R1
WASHER
1.531 x 2.250 x .105, for 8 in. ID, 203.2 mm tube
2шт.
1316507C1
TOOL
tine installation
1шт.
1316199C91
KIT
PACKAGE, aux pickup LH, finger, consists of, (NSS) support (AR), (NSS) finger (AR), (NSS) screw (AR)
1шт.
1316200C91
KIT
PACKAGE, aux pickup RH, finger consists of, (NSS) support (AR), (NSS) finger (AR), (NSS) screw (AR)
1шт.
Выбрано товаров: 95
