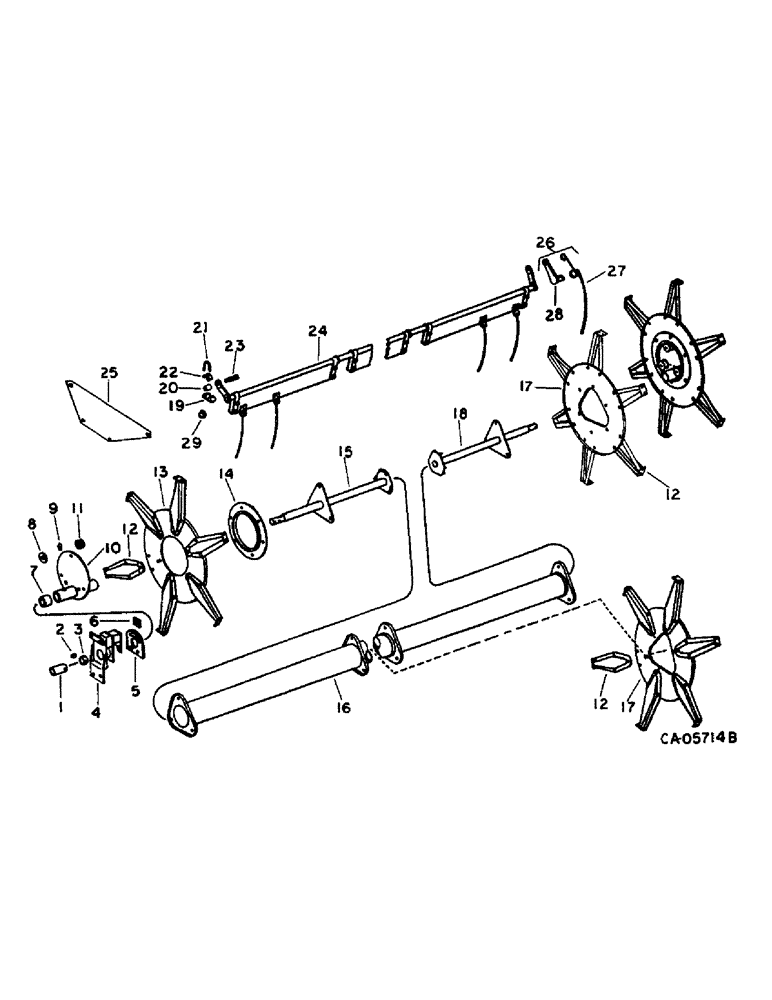

Запчасти Case IH 820 (D-22) - REEL, PICKUP REEL, HART-CARTER (58) - ATTACHMENTS/HEADERS

1

167612C1

SPACER

reel driven hub

2шт.

2

124554

O-RING

5/16 x 1 SAE B Woodruff

1шт.

3

180400C91

COLLAR

w/set screws

2шт.

139074

BRACKET

3/8-24 x 5/16 hex-soc-hd

4шт.

4

185524C1

SUPPORT

BRACKET, eccentric adjusting LH

1шт.

4

185521C1

ANGLE

BRACKET, eccentric adjusting RH

1шт.

5

827703C1

BAR

eccentric adjusting

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 type 1

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

.531 x 1062 x .074

1шт.

6

953254R1

SPACER

BAR, spacer

2шт.

7

167666C1

BUSHING

eccentric roller frame

4шт.

8

167685C1

KNOB

pitch adjustment

2шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

2шт.

10

185706C91

HUB ASSY.

HUB ASSY, eccentric roller, includes ref no. 7

2шт.

11

598242R91

ROLLER BEARING,0.376" ID x 2.25" OD x 1"

BEARING ASSY, roller ball

6шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

167654C1

ARM

ASSY, reel

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 type 1

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

167658C1

PLATE

eccentric spider

2шт.

14

167661C1

RING,271.65mm ID x 320.68mm OD

eccentric control

2шт.

15

185519C1

SHAFT

driving end, for 6 in., 152.4mm tube

1шт.

15

185520C1

SHAFT

driving end, for 8 in., 203.2mm tube

1шт.

23040R1

WASHER

1.656 x 2.50 x .105

1шт.

16

167601C1

SHAFT

center, 13.0 ft

1шт.

16

179234C1

SHAFT

center, 15.0 ft

1шт.

16

167618C1

SHAFT

center, 16.5 ft

1шт.

16

179236C1

SHAFT

center, 17.5 ft, 6 in. dia., 152.4 mm dia.

1шт.

16

180647C1

SHAFT

center, 20.0 ft

1шт.

16

180234C1

SHAFT

center, 22.5 ft, 8 in. dia., 203.2 mm dia.

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

17

167653C1

PLATE

spider, for 6 in., 152.4 mm tube

4шт.

17

180248C1

PLATE

spider, for 8 in. 203.2mm tube

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

185522C1

SHAFT

driven end, for 6 in., 152.4 mm tube

1шт.

18

185523C1

SHAFT

driven end, for 8 in., 203.2mm tube

1шт.

19

598234R1

BASE

bearing

36шт.

20

598246R1

SPACER

.568 ID x .812 OD x 1.25 in. long tubing

12шт.

20

1316568C1

SPACER

.515 ID x .840 OD x 1.12 in. long tubing

12шт.

21

598236R1

U-BOLT,U, 1/4" - 20

1/4 x 2

36шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 CAD p/t lock type 5

72шт.

22

598235R1

BEARING CAP,1.025"

bearing

36шт.

23

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

1/2 x 2-1/2 hex. shank, used with spacer 598246R1

1шт.

23

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5, used with spacer 1316568C1

12шт.

178374R1

WASHER

.531 x 1.250 x .054, used w/bolt, 827385C1

12шт.

120390

WASHER,1/2"

.562 x 1.375 x .086, used w/bolt, 180181

12шт.

24

BAT ASSY, bat shaft, refer to this section group 6 under bat assy

6шт.

25

180450C1

SHIELD

pickup reel end

12шт.

26

167605C91

TINE

FINGER ASSY, LH, includes ref nos. 27 and 28

6шт.

26

167606C91

TINE

FINGER ASSY, RH, includes ref nos 27 and 28

6шт.

27

167652C1

TINE,Coiled, 1 Prong, 437mm L

FINGER, LH

6шт.

27

167651C1

TORSION SPRING

FINGER, RH

6шт.

28

592627R21

STRAP

ASSY, finger

6шт.

29

9411818

NUT

1/2-20 flange hex.

12шт.
