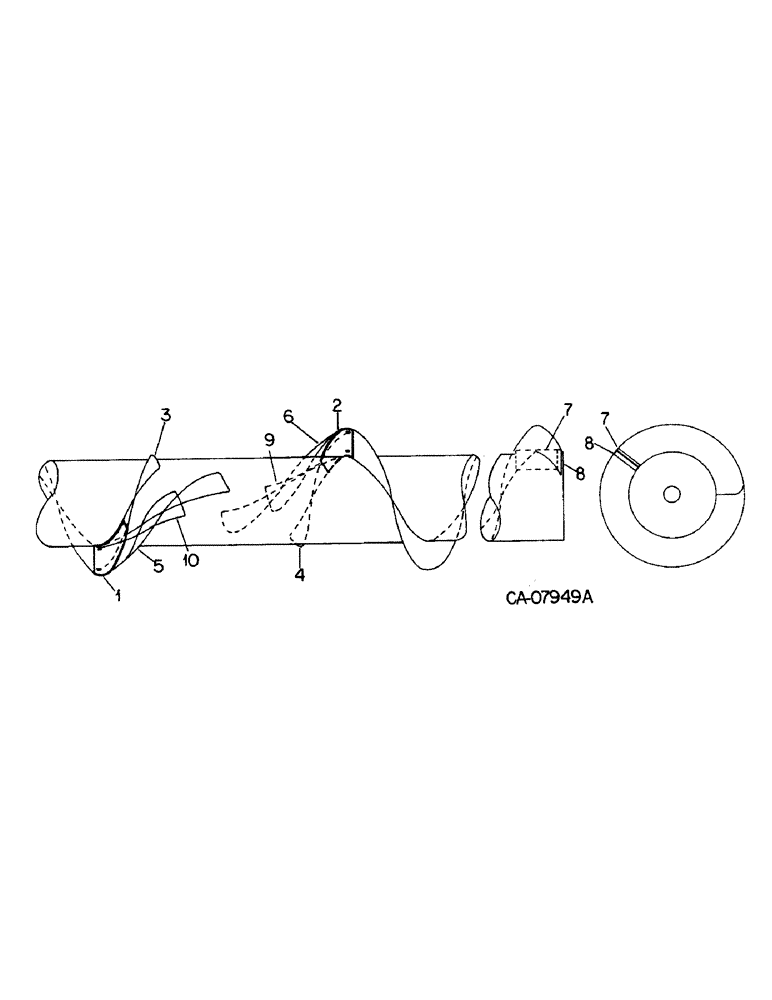

Запчасти Case IH 820 (D-20) - AUGER, AUGER EXTENSIONS, STANDARD (58) - ATTACHMENTS/HEADERS

1

1305933C1

EXTENSION ASSY.

EXTENSION ASSY, RH short, 20 in., 508.0 mm pitch, for grain, not for 915 and 1480

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

3шт.

2

1305932C1

EXTENSION ASSY.

EXTENSION ASSY, LH, short, 20 in., 508.0mm pitch, for grain, not for 915 and 1480

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

3шт.

3

1304753C1

AUGER

EXTENSION ASSY, RH, for 1470, 20 in., 508.0mm pitch

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

4шт.

4

1304752C1

AUGER

EXTENSION ASSY, LH, for 1470, 20 in., 508.0mm pitch

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

4шт.

5

1313064C1

EXTENSION ASSY.

EXTENSION ASSY, RH, 48 in., 1219.2 mm pitch, for rice, special for grain

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

4шт.

6

1313063C1

EXTENSION

ASSY, LH, 48 in., 1219.2mm pitch, for rice, special for grain

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

1304207C1

BAR

header auger paddle, plate, for 1470

2шт.

8

1304208C1

BRACKET

ANGLE, header auger paddle, for 1470

2шт.

9

(Not used)

1шт.

10

(Not used)

1шт.
