Запчасти Case IH 820 (D-18) - AUGER, AUGER, 20 IN., 508.0 MM OD (58) - ATTACHMENTS/HEADERS

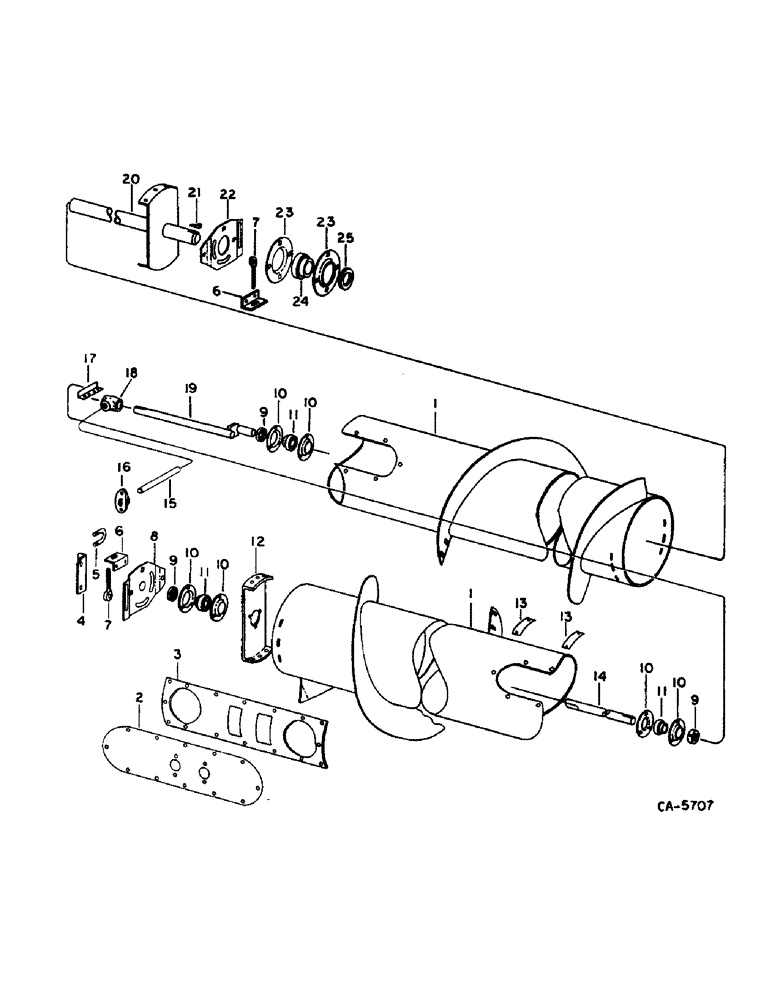

Схема запчастей Case IH 820 - (D-18) - AUGER, AUGER, 20 IN., 508.0 MM OD (58) - ATTACHMENTS/HEADERS
1
17
16
22
18
11
10
14
23
21
6
8
2
23
10
19
10
13
11
10
4
11
24
9
3
10
1
25
7
13
5
10
20
6
15
12
9

Артикул

Название

Примечание

Количество

1

177000C1

AUGER

ASSY, header, 13.0 ft, serial no. 25000 and below

1шт.

1

1313049C1

AUGER

ASSY, header, 13.0 ft, serial no. 25001 and above

1шт.

1

177001C1

AUGER

ASSY, header, 15.0 ft, serial no. 25000 and below

1шт.

1

1313048C1

AUGER

ASSY, header, 15.0 ft, serial no. 25001 and above

1шт.

1

197175C1

AUGER

ASSY, header, 16.5 ft, serial no. 25000 and below

1шт.

1

1313432C1

AUGER

ASSY, header, 16.5 ft, serial no. 25001 and above

1шт.

1

177002C2

AUGER

ASSY, header, 17.5 ft, serial no. 25000 and below

1шт.

1

1313433C1

AUGER

ASSY, header, 17.5 ft, serial no. 25000 and above

1шт.

1

177003C2

AUGER

ASSY, header, 20.0 ft, serial no. 25000 and below

1шт.

1

1313046C1

AUGER

ASSY, header, 20.0 ft, serial no. 25001 and above

1шт.

1

197176C2

AUGER

ASSY, header, 22.5 ft, serial no. 25000 and below

1шт.

1

1313044C1

AUGER

ASSY, header, 22.5 ft, serial no. 25001 and above

1шт.

2

150731C2

COVER

auger finger, serial no. 25000 and below

1шт.

2

1313091C1

COVER

auger finger, serial no. 25001 and above

1шт.

167345

BOLT (SPREADER),Cross Pan Hd, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 p/hdcr tap

1шт.

3

1313092C2

COVER

auger center inner, for 20 and 22.5 ft

1шт.

167345

BOLT (SPREADER),Cross Pan Hd, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 p/hdcr tap

4шт.

4

177663C4

ANGLE

finger adjustment

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

726510R1

U-BOLT,3/8" - 16 x 1 3/4"

3/8 round

3шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

6шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 PHC hdn

12шт.

6

177065C1

ANGLE

auger adjustment

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

7

177662C1

EYEBOLT,1/2" - 13 x 3 1/2"

BOLT, auger adjustment eye

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

.531 x 1.000 x .054 sq/h

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

8

177082C1

BRACKET

auger bearing RH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

9

455102R21

COLLAR

W/SET SCREW, bearing locking

3шт.

10

937517R1

FLANGE

inner bearing

6шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

9шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

9шт.

11

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, auger shaft inner

3шт.

12

184556C1

RETAINER

RH shaft

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

6шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

6шт.

366862C1

LOCK WASHER,3/8"

3/8"

6шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

6шт.

13

167823C1

COVER

auger finger hole

4шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 CAD p/t lock type 5

1шт.

1313021C1

SERRATED SCREW,Cross Rec Truss Hd, 1/4" - 20 x 3/4", Cl 8

1/4-20 x 3/4 t/hrc flg lk

1шт.

14

189962C1

SHAFT

auger adjusting, 13.0 ft

1шт.

14

189963C1

SHAFT

auger adjusting, 15.0 ft

1шт.

14

189967C1

SHAFT

auger adjusting, 16.5 ft

1шт.

14

189964C1

SHAFT

auger adjusting, 17.5 ft

1шт.

14

189965C1

SHAFT

auger adjusting, 20.0 ft

1шт.

14

189968C1

SHAFT

auger adjusting, 22.5 ft

1шт.

15

187072C3

FINGER

retractable, serial no. 25000 and below

12шт.

15

1313061C2

PIN,15.87mm OD x 195mm L

retractable, finger, serial no. 25001 and above

16шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, quick attachable cot.

1шт.

16

189649C1

GUIDE

finger, serial no. 25000 and below

12шт.

16

1307259C2

GUIDE

finger, serial no. 25001 and above

16шт.

127550

NUT,Tee, 1/4"-20

1/4-20 pln tee

1шт.

1313021C1

SERRATED SCREW,Cross Rec Truss Hd, 1/4" - 20 x 3/4", Cl 8

1/4-20 x 3/4 t/hcr

1шт.

17

197879C1

ANGLE

auger finger

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

1шт.

18

187071C1

HUB

finger, serial no. 25000 and below

16шт.

18

1308425C1

HUB

finger, serial no. 25001 and above

20шт.

19

185638C1

SHAFT ASSY.

SHAFT ASSY, auger center

1шт.

20

181581C2

SHAFT ASSY.

SHAFT ASSY, auger LH

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

6шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

6шт.

366862C1

LOCK WASHER,3/8"

3/8"

6шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

6шт.

21

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib-hd sq tapered

1шт.

22

177081C1

BRACKET

auger bearing LH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

23

663562R1

FLANGE

bearing

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

24

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

BEARING, auger shaft LH

1шт.

25

455112R11

COLLAR

W/SET SCREW, bearing locking

1шт.

Выбрано товаров: 87
