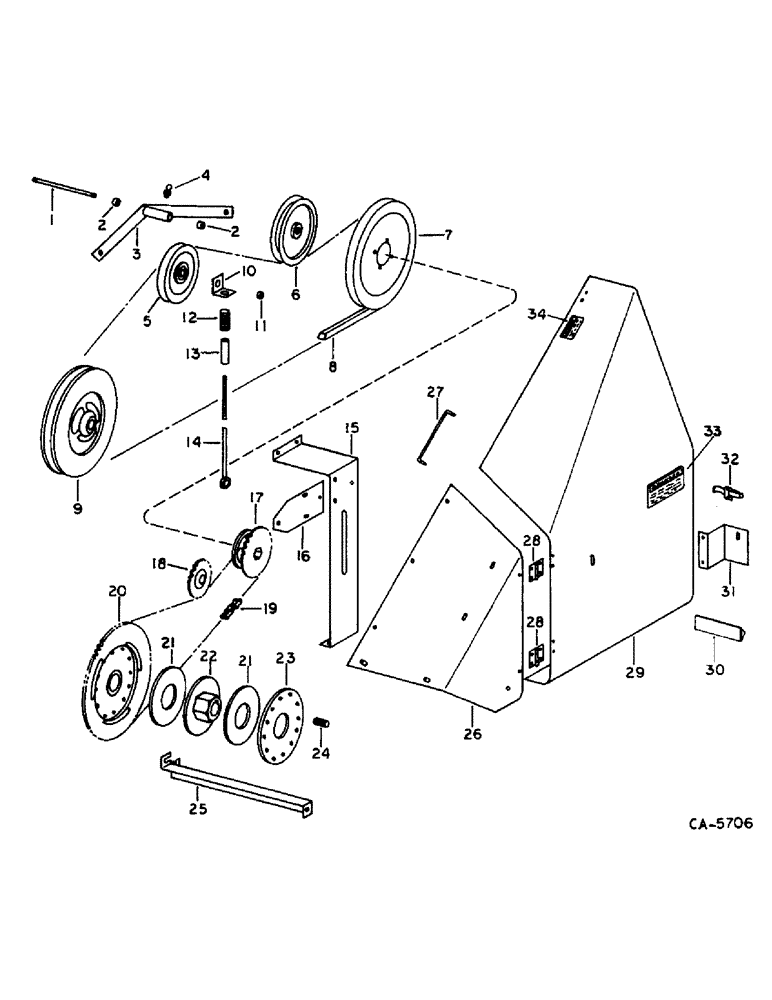

Запчасти Case IH 820 (D-16) - KNIFE, AUGER AND KNIFE DRIVE (58) - ATTACHMENTS/HEADERS

1

197101C1

PIN

idler pivot

1шт.

366112R1

WASHER

.781 x 1.250 x .105

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

2

189971C1

BUSHING,19.33mm ID x 22.38mm OD x 19.3mm L

2шт.

3

197092C91

LEVER

ASSY, idler, includes ref. no.

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/8-27 str self-tap lub

1шт.

5

161173C91

PULLEY

ASSY, idler front, 5.75 in. OD, 146.1mm OD

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

6

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

ASSY, idler rear, 6 in. OD, 152.4mm OD

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

7

184815C1

PULLEY ASSY.

PULLEY ASSY, drive, replaces 939241R11, 10-1/2 in. OD, 266.7mm OD

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

8

191305C1

V-BELT,0.879" W x 112.19" L

Drive, OC 0.879" W x 112.19" L

1шт.

9

182029C1

PULLEY

driven, 10-1/2 in. OD, 266.7mm OD

1шт.

218446

NUT,Jam, 1 1/8"-7, G5

1-1/8 pln jam type 5

2шт.

10

197097C1

ANGLE

spring support

1шт.

11

484158R1

WASHER

spacer

1шт.

12

185791C1

VALVE SPRING

SPRING, knife drive idler

1шт.

13

185543C1

SPACER

tightener spring

1шт.

14

197099C1

BOLT,1/2" - 13 x 20"

tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

22635R1

HEADED PIN,1/2" x 1 1/4"

PIN, HEADED, 1/2 x 1 1/4 inch

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

15

197102C1

SUPPORT

idler sprocket

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

4шт.

16

197771C1

BAR

idler support

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

3шт.

17

177965C1

SPROCKET ASSY.

SPROCKET, auger drive, 18T, 191 RPM

1шт.

17

197991C2

SPROCKET ASSY.

SPROCKET, auger drive, 14T, 150 RPM, slow speed, parts accessory

1шт.

17

1300482C91

SPROCKET ASSY.

SPROCKET ASSY, auger drive, 22T, 235 RPM, high speed, parts accessory

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

359783C1

LOCK NUT

3/8 CAD p/t lock type 8

1шт.

18

571441R91

SPROCKET ASSY.,15T

SPROCKET, idler, 15T

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22191R1

WASHER

.531 x 1.750 x .164

1шт.

19

CHAIN ASSY, auger drive, use 87 links from 10 ft roll marked 611362R91, 1 connecting link 574532R91 and 1 offset link 612612R91

1шт.

20

177966C2

SPROCKET ASSY.

SPROCKET W/BUSHING, auger driven, 47T

1шт.

20

1305959C1

PINION

SPROCKET, auger driven, 22T, fast speed 235 RPM, parts accessory

1шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 type 1

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

21

177964C2

FACING

clutch

2шт.

22

177962C1

HUB

auger clutch

1шт.

23

177963C1

PLATE

clutch

1шт.

24

568243R1

SPRING

clutch

12шт.

25

189073C1

SUPPORT

shield angle

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

26

184870C1

GUARD

SHIELD ASSY, knife drive

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27

185854C1

ROD

auger drive shield stop

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

586591R1

COTTER PIN

PIN, 1/8 QA

1шт.

28

184644C2

HINGE

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

2шт.

29

184744C92

GUARD

SHIELD ASSY, auger drive rear, includes ref nos. 33 and 34

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

4шт.

30

175311C1

REFLECTOR

red

1шт.

31

189224C3

SUPPORT

rear shield latch

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

3шт.

32

669184R1

CLAMP

LATCH ASSY, auger drive rear shield

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znp p/hds mach

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

33

1320694C1

DECAL

PRODUCT GRAPHIC, danger

1шт.

34

179749C2

PRODUCT GRAPHIC

danger

1шт.
