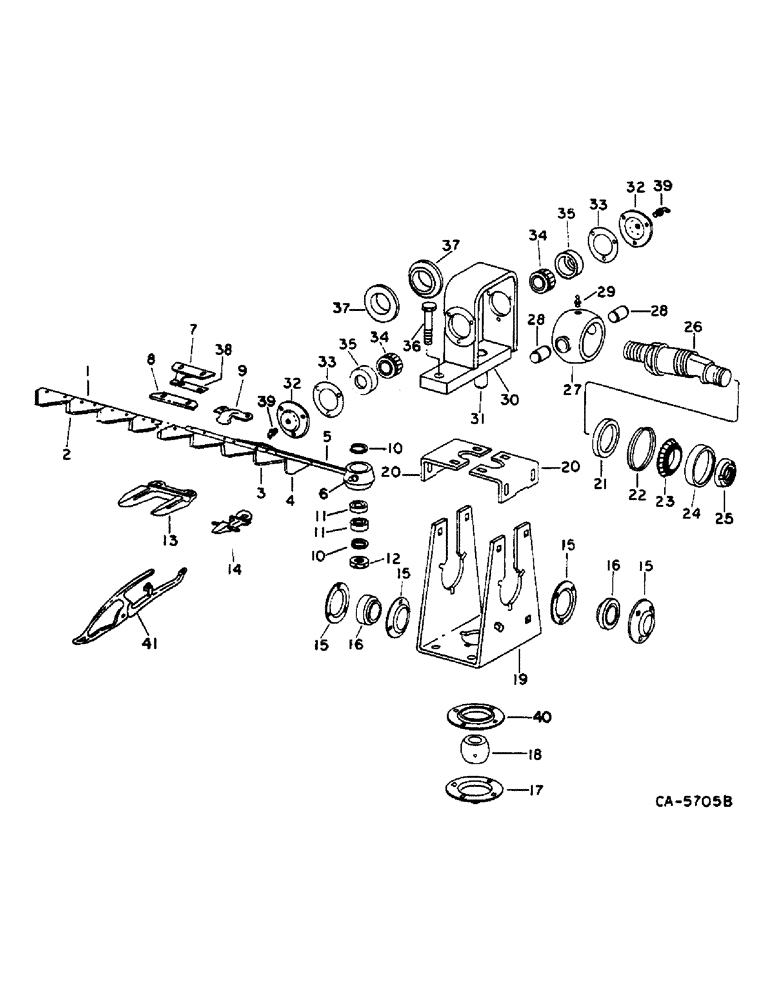

Запчасти Case IH 820 (D-14) - KNIFE, KNIFE, DRIVE AND GUARDS (58) - ATTACHMENTS/HEADERS

1

197462C93

KNIFE

ASSY, 13.0 ft

1шт.

1

197463C93

KNIFE ASSY

15.0 ft

1шт.

1

197464C93

KNIFE ASSY

16.5 ft

1шт.

1

197465C93

KNIFE ASSY

17.5 ft

1шт.

1

197466C93

KNIFE

ASSY, 20.0 ft

1шт.

1

197467C93

KNIFE

ASSY, 22.5 ft, includes ref. nos. 2 thru 5

1шт.

990324R91

RIVET

PACKAGE, rivet 1/4 x 7/8

1шт.

991059R91

RIVET

PACKAGE, rivet #6 x 5/8 ( replaced 990059R91 )

1шт.

990719R91

RIVET

PACKAGE, rivet #6 x 7/8

1шт.

REF # 1- THERE IS NO 1-1/2" KNIFE ASSY AVAILABLE FOR THE 820 GRAIN HEADERS. SHIP DIRECT ONLY OFFERS 3" AS WELL. JBEDFORD (CASE# 1539261-TERRY R). 9/3/99.

1шт.

2

826720C2

KNIFE SECTION

SECTION, knife, 47 used for 13.0 ft, 55 used for 15.0 ft, 61 used for 16.5 ft, 65 used for 17.5 ft, 75 used for 20.0 ft, 85 used for 22.5 ft

1шт.

3

189947C2

KNIFE SECTION

SECTION, knife LH

3шт.

4

1319392C1

KNIFE SECTION

SECTION, knife half LH, replaces 189350C1

1шт.

5

197230C91

HEAD

W/BEARINGS, knife, includes ref. nos. 6, 10 and 11

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

1шт.

7

1307280C1

KNIFE CLIP

SUPPORT, knife hold down, 12 used for 13.0 ft, 14 used for 15.0 ft, 15 used for 16.5 ft, 16 used for 17.5 ft, 19 used for 20.0 ft, 21 used for 22.5 ft

1шт.

489245R1

BOLT (SPREADER),7/16"-14 x 1 1/2", G8

BOLT, 7/16 x 1-1/2 plow type 8

1шт.

489247R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT, 7/16 x 1-3/4 plow type 8

1шт.

359785C1

NUT,7/16"-14, GC

7/16 CAD p/t lock type 8

1шт.

8

MC468

PLATE ASSY.

PLATE, knife wear

1шт.

9

611759R1

KNIFE CLIP

HOLDER, knife, high arch

1шт.

10

299470R1

SNAP RING,1.625", Int, #162

Ring, Snap, , knife head brg 1.625", Int, #162

2шт.

11

176699C91

BEARING ASSY,19.1mm ID x 41.3mm OD x 11.1mm W

knife head ball

2шт.

12

359793C1

NUT,3/4"-10, GC

3/4 p/t lock type 8

1шт.

13

1326787C1

GUARD ASSY.

GUARD, double LH

3шт.

13

613838R2

GUARD

double, 22 used for 13.0 ft, 26 used for 15.0 ft, 29 used for 16.5 ft, 31 used for 17.5 ft, 36 used for 20.0 ft, 41 used for 22.5 ft

1шт.

REF: #13A - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

14

472717R2

GUARD

single, stub

1шт.

15

202909C1

BEARING HOUSING

FLANGE, bearing grooved, replaces 470746R1

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

1306680C1

FLANGE NUT

NUT, 3/8 p/t flange

1шт.

16

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

shaft

2шт.

17

167878C11

FLANGE

W/FITTING, bearing, 3 bolt, use w/drive support, 178030C2

1шт.

17

1307388C1

FLANGE

W/FITTING, bearing, 4 bolt, use w/drive support, 1307386C2

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

25534R1

WASHER

.406 x .812 x .065 PHC hdn

1шт.

18

1316463C91

SPHERICAL BEARING,Needle, 28.56mm ID x 62.04mm OD x 36.52mm W

ASSY, ball, replaces 181866C91

1шт.

19

1307386C2

SUPPORT

drive, replaces 178030C2 by also ordering (1) flange, 1307387C1 & (1) flange, 1307387C1

1шт.

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

1шт.

9412231

NUT

5/8 PHC p/t lock type 8

1шт.

390309C1

WASHER

.656 x 1.312 x .095 hdn

1шт.

20

178033C1

SHIELD

drive

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

6шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

6шт.

21

178029C91

OIL SEAL,54.89mm ID x 77.88mm OD x 9.5mm Thk

SEAL, oil

2шт.

22

627095C1

SPACER

snap ring bearing cup

1шт.

23

G15215

ROLLER BEARING

BEARING ASSY, cone

2шт.

24

619387R1

BEARING CUP

BEARING, cup

2шт.

25

178028C1

LOCK NUT

lock

1шт.

Ref#25 - the spanner wrench for the 178028C1 is listed in 1600 Service Manual ection 9115 as a 16-569.

1шт.

26

1305084C1

SHAFT

wobble

1шт.

27

178020C1

HOUSING

bearing

1шт.

28

178025C1

PIN,21.49mm OD x 36.58mm L

bearing housing ( replaced 178028C1 )

2шт.

29

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

1шт.

30

181865C2

SUPPORT ASSY.

SUPPORT W/STUD, drive, includes ref. no. 31

1шт.

31

178024C2

PIN,28.57mm OD x 89mm L

STUD, bearing

1шт.

32

1316859C1

CAP

RETAINER, bearing

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

33

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

bearing retainer .002

1шт.

33

458956R1

SHIM

bearing retainer, .005

1шт.

33

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

bearing retainer, .010

1шт.

34

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy

2шт.

35

371883R1

BEARING CUP

2шт.

36

24893R1

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga hard

1шт.

334273C1

SPECIAL WASHER,19.84mm ID x 31.75mm OD x 1.52mm Thk

25/32 x 1-1/4 x 16 ga, hard

1шт.

37

197895C1

SEAL

SEAL, bearing

2шт.

38

126628C1

SHIM

knife hold down

1шт.

39

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 ptf short 90D lub

2шт.

40

202909C1

BEARING HOUSING

FLANGE, bearing, 3 bolt, replaces 470746R1, use w/drive support, 178030C2

1шт.

40

1307387C1

FLANGED BEARING

bearing, 4 bolt, use w/drive support, 1307386C2

1шт.

41

909346R91

GRAIN LIFTER

LIFTER, grain, parts accessory

1шт.

1330048C91

WOBBLE BOX

800 SERIES WOBBLE BOX

1шт.

1330048C91R

REMAN-WOBBLE BOX

Remanufactured, Wobble Box, N.A. Only

1шт.

1330048C91C

CORE-WOBBLE BOX

Return Number, Wobble Box, N.A. Only

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING

1шт.

1307387C1

FLANGED BEARING

1шт.

178020C1

HOUSING

1шт.

178025C1

PIN,21.49mm OD x 36.58mm L

2шт.

178029C91

OIL SEAL,54.89mm ID x 77.88mm OD x 9.5mm Thk

SEAL

2шт.

1307386C2

SUPPORT

DRIVE SUPPORT

1шт.

178033C1

SHIELD

2шт.

181865C2

SUPPORT ASSY.

SUPPORT W/STUD

1шт.

1316463C91

SPHERICAL BEARING,Needle, 28.56mm ID x 62.04mm OD x 36.52mm W

ASSY

1шт.

197895C1

SEAL

BEARING SEAL

2шт.

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

371883R1

BEARING CUP

1шт.

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

2шт.

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

.002

2шт.

458956R1

SHIM

.005

2шт.

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

.010

3шт.

1316859C1

CAP

RETAINER

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING

2шт.

202909C1

BEARING HOUSING

FLANGE

4шт.

G15215

ROLLER BEARING

BEARING CONE

2шт.

619387R1

BEARING CUP

2шт.

627095C1

SPACER

1шт.

1305084C1

SHAFT

WOBBLE SHAFT

1шт.

178028C1

LOCK NUT

LOCK NUT, (NSS) product graphic, (NSS) product graphic, (NSS) product graphic, (NSS) product graphic, and all attaching hardware

2шт.
