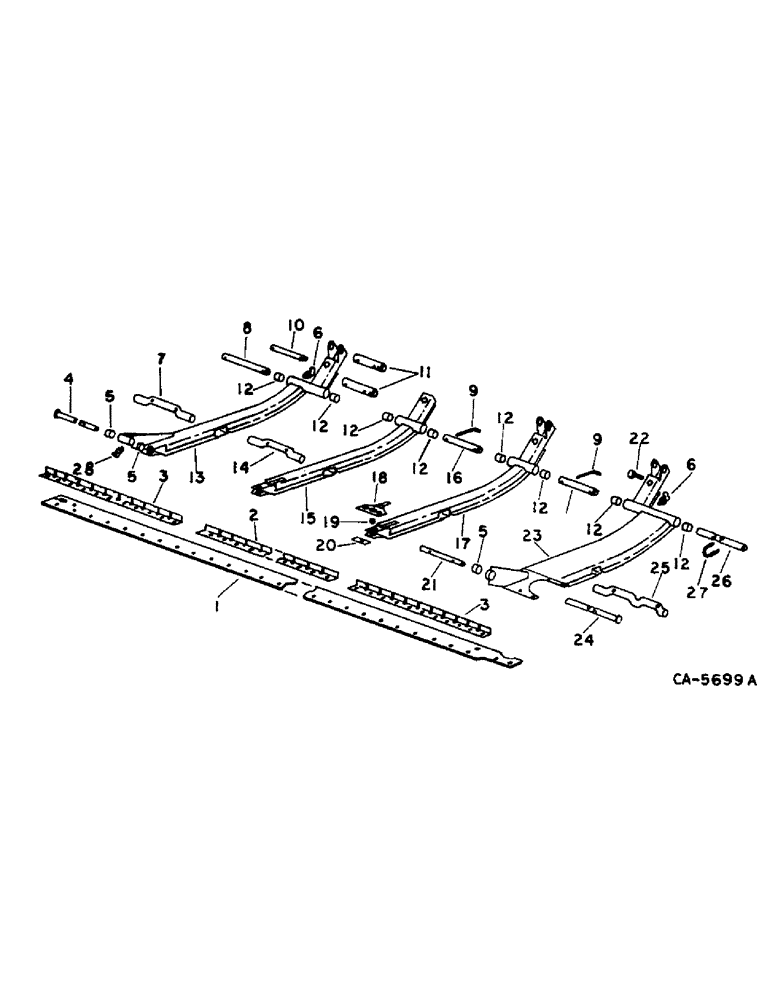

Запчасти Case IH 820 (D-10) - GRAIN HEADER, HEADER FLOATING PARTS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
189875C1
SUPPORT
knife, 13.0 ft
1шт.
1
189876C1
SUPPORT
knife, 15.0 ft
1шт.
1
189877C1
SUPPORT
knife, 16.5 ft
1шт.
1
189878C1
SUPPORT
knife, 17.5 ft
1шт.
1
189879C1
SUPPORT
knife, 20.0 ft
1шт.
1
189880C1
SUPPORT
knife, 22.5 ft
1шт.
24860R1
BOLT,Hex, 1/2" - 13 x 1", Gr 8
1шт.
24862R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8
1шт.
359787C1
LOCK NUT,1/2"-13, GC
NUT, 1/2 CAD p/t lock type 8
1шт.
2
187271C1
SUPPORT
bottom sheet seal center
1шт.
3
187272C1
SUPPORT
bottom sheet seal outer, for 13.0 ft
2шт.
3
187273C1
SUPPORT
bottom sheet seal outer, for 15.0 ft
2шт.
3
187274C1
SUPPORT
bottom sheet seal outer, for 16.5 ft
2шт.
3
187275C1
SUPPORT
bottom sheet seal outer, for 17.5 ft
2шт.
3
187276C1
SUPPORT
bottom sheet seal outer, for 20.0 ft
2шт.
3
187277C1
SUPPORT
bottom sheet seal outer, for 22.5 ft
2шт.
4
189930C1
PIN
end runner front stop
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
1шт.
5
189971C1
BUSHING,19.33mm ID x 22.38mm OD x 19.3mm L
divider pivot
3шт.
6
87415
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive, 5 for 13.0 thru 17.5 ft, 7 for 20.0 and 22.5 ft
1шт.
7
187497C1
ROD
pivot RH
1шт.
471194R1
AXLE PIN
PIN, quick attachable cot
2шт.
8
189870C1
PIN
runner pivot RH
1шт.
19471R1
PIN, SPLIT (COTTER),1/4" x 1 3/4"
1шт.
9
197077C1
ROD
retaining, 4 for 13.0 thru 17.5 ft, 6 for 20.0 and 22.5 ft
1шт.
10
197770C1
PIN,19.05mm OD x 210.82mm L
runner lockout upper, 4 for 13, 15, 16.5 and 17.5 ft, 6 for 20 and 22.5 ft
1шт.
11
189154C1
PIN
runner lockout lower 6 for 13, 15, 16.5 and 17.5 ft, 8 for 20 and 22.5 ft
1шт.
517843R1
COTTER PIN
PIN, 3/16 cot.
1шт.
20340R1
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
1шт.
12
187070C1
JOURNAL
BUSHING, pivot, 10 for 13.0 thru 17.5 ft., 14 for 20 and 22.5 ft
1шт.
13
197754C91
RUNNER
ASSY, outer RH, includes ref. nos. 5, 12 and 20
1шт.
14
189927C1
ROD
shoe pivot, 3 for 13, 15, 16.5 and 17.5 ft, 5 for 20 and 22.5 ft
1шт.
471194R1
AXLE PIN
PIN, quick attachable cot
1шт.
15
197750C91
RUNNER
ASSY, center, includes ref. nos. 12 and 20
1шт.
16
197761C1
PIN
runner pivot, 3 for 13.0 thru 17.5 ft, 5 for 20.0 and 22.5 ft
1шт.
19471R1
PIN, SPLIT (COTTER),1/4" x 1 3/4"
1шт.
17
197740C91
HITCH PIN
RUNNER ASSY, inner, includes ref. nos. 12 and 20, 2 for 13, 15, 16.5 and 17.5 ft, 4 for 20 and 22.5 ft
1шт.
18
184520C1
SUPPORT
cutter bar extension, 4 for 13, 15, 16.5 and 17.5 ft, 6 for 20 and 22.5 ft
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
1шт.
9411655
LOCK NUT,3/8"-16, GB
NUT, 3/8 CAD p/t lock type 5
1шт.
19
185862C1
JOURNAL
BUSHING, knife support spacer, 4 for 13, 15, 16.5 and 17.5 ft, 6 for 20 and 22.5 ft
1шт.
20
185753C1
BAR
runner wear, 4 for 13, 15, 16.5 and 17.5 ft, 6 for 20 and 22.5 ft
1шт.
21
189929C1
PIN
shoe stop, 3 for 13, 15, 16.5 and 17.5 ft, 5 for 20 and 22.5 ft
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
1шт.
22
185858C1
BOLT,Hex, 1/2" - 13 x 1.75"
cutter bar leveling, 5 for 13, 15, 16.5 and 17.5 ft, 7 for 20 and 22.5 ft
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
23
197756C91
RUNNER
ASSY, outer LH, includes ref. nos. 5 and 12
1шт.
24
184600C1
PIN
shoe front stop LH
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
1шт.
25
189928C1
ROD
pivot LH
1шт.
471194R1
AXLE PIN
PIN, quick attachable cot
2шт.
26
197760C1
ROD
LH runner pivot
1шт.
608700R1
WASHER
1.281 x 2.000 x .054
1шт.
27
27024R1
BOLT,3/8" - 16 x 2 1/4"
U-BOLT, 3/8 x 1.62CL x 2.25 x 1.00
2шт.
9411655
LOCK NUT,3/8"-16, GB
NUT, 3/8 CAD p/t lock type 5
4шт.
142619H
WASHER
.406 x .750 x .105
4шт.
Выбрано товаров: 58
