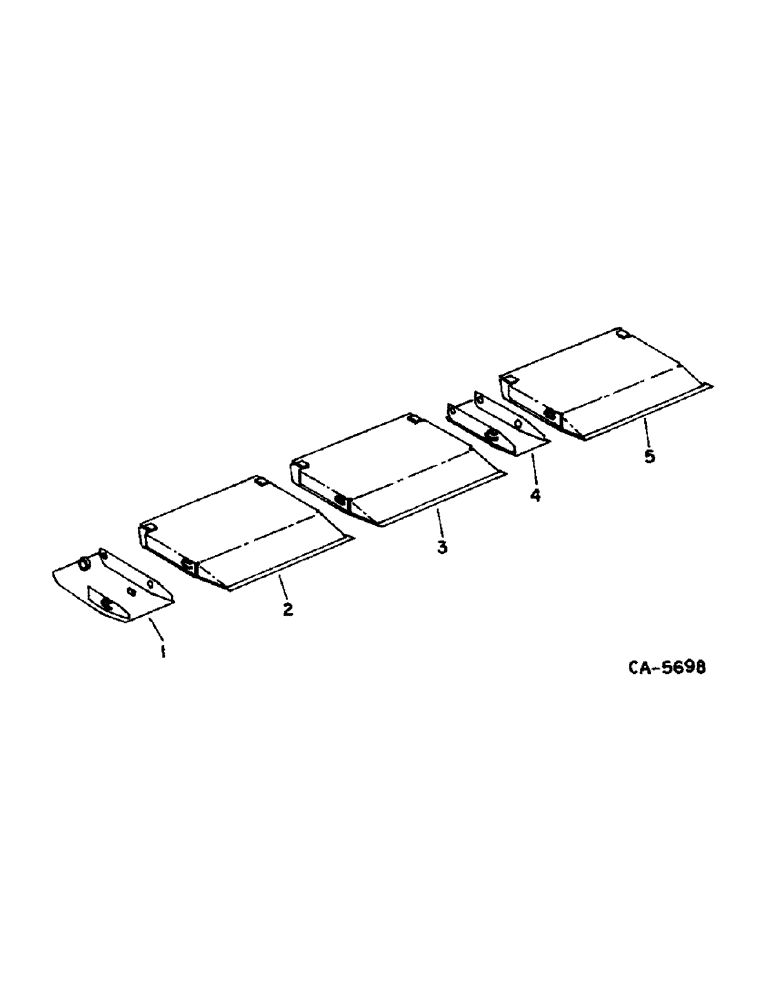

Запчасти Case IH 820 (D-09) - GRAIN HEADER, BOTTOM SHOE SKID (58) - ATTACHMENTS/HEADERS

1

189924C2

SHOE (ASSY)

SHOE ASSY, narrow LH

1шт.

2

189885C2

SHOE (ASSY)

SHOE ASSY, main outer, 13.0 ft

2шт.

2

189886C2

SHOE (ASSY)

SHOE ASSY, main outer, 15.0 ft

2шт.

2

189887C2

SHOE (ASSY)

SHOE ASSY, main outer, 16.5 ft

2шт.

2

189888C2

SHOE (ASSY)

SHOE ASSY, main outer, 17.5 ft

2шт.

2

189890C2

SHOE (ASSY)

SHOE ASSY, main outer, 20.0 ft

2шт.

2

189891C2

SHOE (ASSY)

SHOE ASSY, main outer, 22.5 ft

2шт.

3

189884C2

SHOE (ASSY)

SHOE ASSY, main center

2шт.

4

189921C2

SHOE (ASSY)

SHOE ASSY, narrow, 4 for 13, 15, 16.5 and 17.5 ft, 6 for 20 and 22.5 ft

1шт.

5

189889C2

SHOE (ASSY)

SHOE ASSY, main inner, for 20 and 22.5 ft

2шт.
