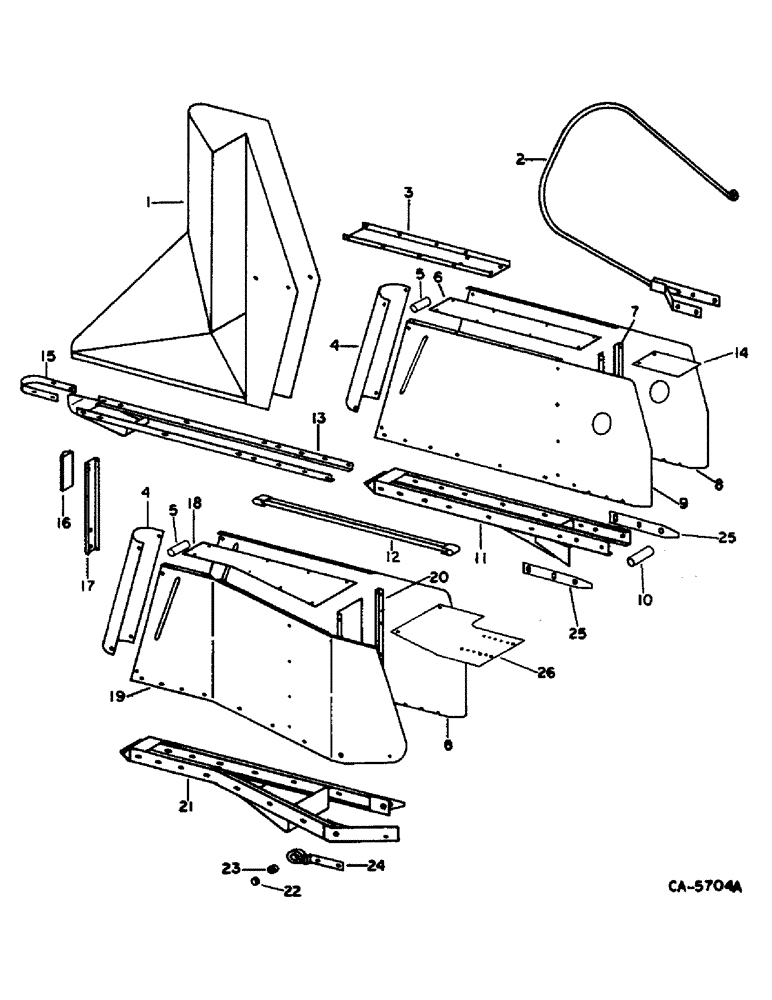

Запчасти Case IH 820 (D-06) - GRAIN HEADER, DIVIDERS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
189758C2
DIVIDER
ASSY, front LH
1шт.
1
189759C2
DIVIDER
ASSY, front RH
1шт.
2
185983C1
DIVIDER
ASSY, rod LH
1шт.
2
185984C1
DIVIDER
ASSY, rod RH
1шт.
18475R1
BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2
5/16 x 1-1/4 type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
134238R1
WASHER
.344 x 1.000 x .056
1шт.
3
185576C1
CHANNEL
divider upper support
2шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
1шт.
4
184607C1
CHANNEL
front vertical support
2шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
5
10247R
SPACER
divider pivot
2шт.
433163
BOLT,Hex, 1/2" - 13 x 5", Gr 5
1/2 x 5 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
460908R1
WASHER
.531 x 1.500 x .105
1шт.
6
189101C1
BAR
RH divider upper
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
1/4 x 1/2 type 5
6шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
6шт.
7
187378C1
CHANNEL
vertical RH divider
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
1/4 x 1/2 type 5
8шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
8шт.
8
185580C1
DIVIDER
ASSY, LH inner & RH outer
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 type 1
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
9413979
LOCK NUT,3/8"-16, GC
NUT, 3/8 PHC p/t lock type 8
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
9
185582C1
DIVIDER
ASSY, RH inner
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
6шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
6шт.
10
187290C1
SPACER
.53 x .75 x 4.0
1шт.
21395R1
SCREW,Hex, 1/2"-13 x 5 1/4", G5
BOLT, 1/2 x 5-1/4 type 5
1шт.
9412230
LOCK NUT
1/2 PHC p/t lock type 8
1шт.
20601R1
WASHER
.531 x 1.250 x .105
1шт.
11
189089C1
SUPPORT
ASSY, RH divider channel
1шт.
24840R1
BOLT,Hex, 3/8" - 16 x 1", Gr 8
1шт.
9413979
LOCK NUT,3/8"-16, GC
NUT, 3/8 PHC p/t lock type 8
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
20803R1
WASHER
.406 x 1.000 x .105
1шт.
12
187390C1
LINK
ASSY, divider upper
2шт.
517843R1
COTTER PIN
PIN, 3/16 cot.
2шт.
21401R1
HEADED PIN,3/4" x 2 3/4"
PIN, 3/4 x 2.750 hd type 5
2шт.
13
1307723C1
SHOE (ASSY)
SHOE ASSY, divider tip, replaces 184874C1
2шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
12шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
12шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
12шт.
14
184834C1
STRIP
RH divider rubber
1шт.
15
184609C2
CHANNEL
divider tip
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
488837R1
HEADED PIN
NUT, 5/16 speed
8шт.
16
174732C1
REFLECTOR
amber
1шт.
17
184650C1
CHANNEL
reflector support
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
1/4 x 1/2 type 5
2шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
2шт.
18
189100C1
PLATE
LH divider upper
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
1/4 x 1/2 type 5
6шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
6шт.
19
185578C2
DIVIDER
ASSY, LH outer
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
7шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
7шт.
20
187389C1
SUPPORT
vertical LH divider
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
1/4 x 1/2 type 5
8шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
8шт.
21
189083C1
BRACKET
SUPPORT ASSY, LH divider channel
1шт.
24840R1
BOLT,Hex, 3/8" - 16 x 1", Gr 8
1шт.
9413979
LOCK NUT,3/8"-16, GC
NUT, 3/8 PHC p/t lock type 8
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
20803R1
WASHER
.406 x 1.000 x .105
1шт.
22
586329R1
SPACER,3/4" Tube x 13/16"
.53 x .75 x .81
2шт.
IF LOOKING FOR A BUSHING TO GO BETWEEN THESE 2 FOR BETTER FIT USE 189971C1, WHICH CAN BE FOUND ON PAGE 10, SAME SEC. #5 586329R1 BEING #22, AND 185567C1 BEING #23 .
1шт.
180181
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2 x 2 type 5
1шт.
9412230
LOCK NUT
1/2 PHC p/t lock type 8
1шт.
20601R1
WASHER
.531 x 1.250 x .105
1шт.
23
185567C1
BUSHING,22.23mm ID x 32mm OD x 19.05mm L
divider pivot
1шт.
24
185599C1
SUPPORT
ASSY, LH divider outer
1шт.
465567R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
BOLT, 1/2 x 1-1/2 crg type 5
2шт.
9412230
LOCK NUT
1/2 PHC p/t lock type 8
2шт.
120396
WASHER
.531 x 1.062 x .074
2шт.
25
189755C1
BAR
divider inside rear
2шт.
24840R1
BOLT,Hex, 3/8" - 16 x 1", Gr 8
1шт.
9413979
LOCK NUT,3/8"-16, GC
NUT, 3/8 PHC p/t lock type 8
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
1шт.
20803R1
WASHER
.406 x 1.000 x .105
1шт.
26
184862C1
SHEET
LH divider rubber
1шт.
935735R1
WING NUT
1/4 wing
2шт.
180126C91
DIVIDER
ASSY, front LH, composed of
1шт.
184609C2
CHANNEL
divider tip
1шт.
185576C1
CHANNEL
upper support
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 x 1-1/2 znd type 5
4шт.
488837R1
HEADED PIN
NUT, 5/16 speed
8шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
4шт.
184650C1
CHANNEL
reflector support
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
1/4 x 1/2 type 5
2шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
2шт.
189758C2
DIVIDER
ASSY, front lock LH
1шт.
174732C1
REFLECTOR
amber
1шт.
1307723C1
SHOE (ASSY)
SHOE ASSY, divider tip
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
6шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
6шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
6шт.
180127C91
DIVIDER
ASSY, rear LH, composed of
1шт.
184607C1
CHANNEL
front vertical support
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
2шт.
185580C1
DIVIDER
ASSY, LH inner
1шт.
185578C2
DIVIDER
ASSY, LH outer
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 x 1-1/2 type 5
9шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
9шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 type 1
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
9413979
LOCK NUT,3/8"-16, GC
NUT, 3/8 PHC p/t lock type 8
1шт.
187390C1
LINK
ASSY, divider upper
1шт.
189100C1
PLATE
LH divider upper
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
1/4 x 1/2 type 5
6шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
6шт.
10247R
SPACER
divider pivot
1шт.
433163
BOLT,Hex, 1/2" - 13 x 5", Gr 5
1/2 x 5 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
460908R1
WASHER
.531 x 1.500 x .105
2шт.
184862C1
SHEET
LH divider rubber
1шт.
189083C1
BRACKET
SUPPORT ASSY, LH divider channel
1шт.
187389C1
SUPPORT
vertical LH divider
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
1/4 x 1/2 type 5
8шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
8шт.
180128C91
DIVIDER
ASSY, front RH, composed of
1шт.
184609C2
CHANNEL
divider tip
1шт.
185576C1
CHANNEL
upper support
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 znd type 5
4шт.
488837R1
HEADED PIN
NUT, 5/16 speed
8шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
4шт.
189759C2
DIVIDER
ASSY, front RH
1шт.
1307723C1
SHOE (ASSY)
SHOE ASSY, divider tip
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
6шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
6шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
6шт.
180129C91
DIVIDER
ASSY, rear RH, composed of
1шт.
189755C1
BAR
divider inside rear
2шт.
24840R1
BOLT,Hex, 3/8" - 16 x 1", Gr 8
4шт.
9413979
LOCK NUT,3/8"-16, GC
NUT, 3/8 PHC p/t lock type 8
4шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
4шт.
20803R1
WASHER
.406 x 1.000 x .105
4шт.
189101C1
BAR
RH divider upper
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
1/4 x 1/2 type 5
6шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
6шт.
184607C1
CHANNEL
front vertical
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
2шт.
187378C1
CHANNEL
vertical RH divider
1шт.
18016
BOLT, 1/4 x 1/2 type 5
8шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
8шт.
185582C1
DIVIDER
ASSY, RH inner
1шт.
185580C1
DIVIDER
ASSY, RH outer
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
8шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
8шт.
187390C1
LINK
ASSY, divider upper
1шт.
10247R
SPACER
divider pivot
1шт.
433163
BOLT,Hex, 1/2" - 13 x 5", Gr 5
1/2 x 5 type 5
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
460908R1
WASHER
.531 x 1.500 x .105
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
187290C1
SPACER
divider pivot RH
1шт.
21395R1
SCREW,Hex, 1/2"-13 x 5 1/4", G5
BOLT, 1/2 x 5-1/4 type 5
1шт.
9412230
LOCK NUT
1/2 PHC p/t lock type 8
1шт.
20601R1
WASHER
.531 x 1.250 x .105
2шт.
184834C1
STRIP
RH divider rubber
1шт.
189089C1
SUPPORT
ASSY, RH divider channel
1шт.
Выбрано товаров: 178
