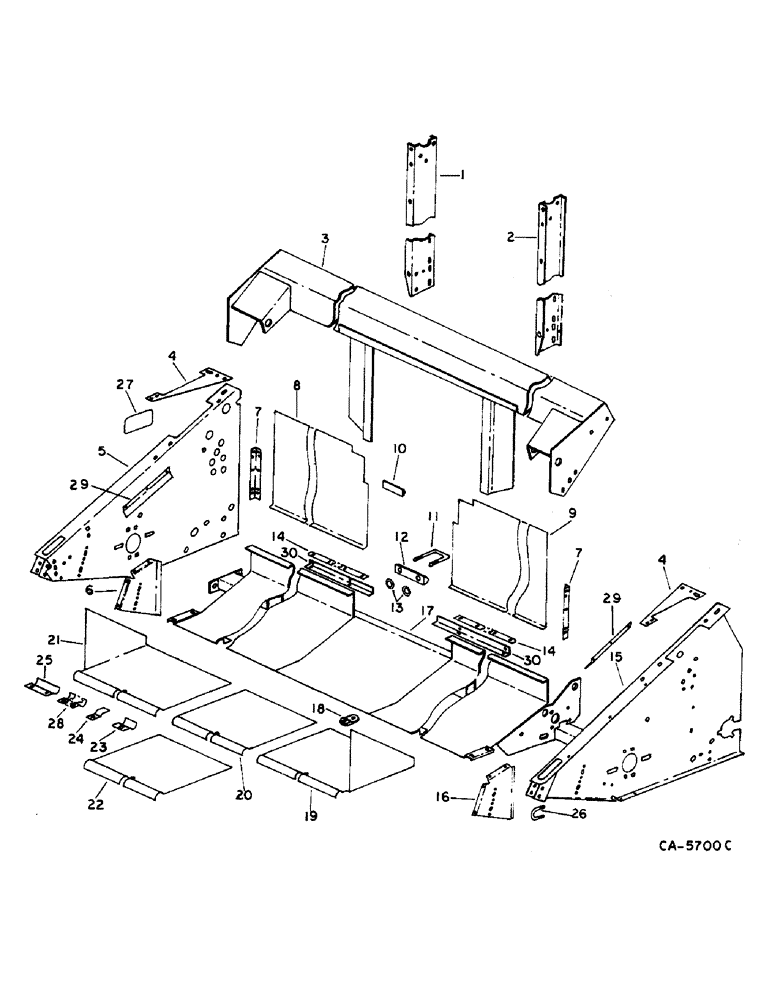

Запчасти Case IH 820 (D-04) - GRAIN HEADER, HEADER SHELL (58) - ATTACHMENTS/HEADERS

1

197302C1

SUPPORT

vertical RH, 1 for 13, 15, 16.5 and 17.5 ft, 2 for 20 and 22.5 ft

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8 CAD p/t lock type 5

1шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

197301C1

SUPPORT

vertical LH, 1 for 13, 15, 16.5 and 17.5 ft, 2 for 20 and 22.5 ft

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8 CAD p/t lock type 5

1шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

184747C92

BEAM ASSY.

BEAM ASSY, main, 13.0 ft

1шт.

3

184748C92

BEAM ASSY.

BEAM ASSY, main, 15.0 ft

1шт.

3

184749C92

BEAM ASSY.

BEAM ASSY, main, 16.5 ft

1шт.

3

184750C92

BEAM ASSY.

BEAM ASSY, main, 17.5 ft

1шт.

3

184751C92

BEAM ASSY.

BEAM ASSY, main, 20.0 ft

1шт.

3

184752C92

BEAM ASSY, main, 22.5 ft

1шт.

4

197239C1

SUPPORT

end sheet brace

2шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

5

184742C93

SIDE ASSY.

SHEET ASSY, RH end, includes ref. no. 27

1шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

172480

SCREW,Hex, 3/8" - 16 x 5/8"

3/8 x 5/8 h/hd tap

1шт.

6

189867C1

SUPPORT

hold down end sheet filler RH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

7

197072C1

ANGLE

backsheet support

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

176661C1

SHEET

BACKSHEET, RH, 13.0 ft

1шт.

8

176663C1

SHEET

BACKSHEET, RH, 15.0 ft

1шт.

8

197162C1

SHEET

BACKSHEET, RH, 16.5 ft

1шт.

8

176665C1

SHEET

BACKSHEET, RH, 17.5 ft

1шт.

8

176667C1

SHEET

BACKSHEET, RH, 20.0 ft

1шт.

8

197164C1

SHEET

BACKSHEET, RH, 22.5 ft

1шт.

9

176660C1

SHEET

BACKSHEET, LH, 13.0 ft

1шт.

9

176662C1

SHEET

BACKSHEET, LH, 15.0 ft

1шт.

9

197161C1

SHEET

BACKSHEET, LH, 16.5 ft

1шт.

9

176664C1

SHEET

BACKSHEET, LH, 17.5 ft

1шт.

9

176666C1

SHEET

BACKSHEET, LH, 20.0 ft

1шт.

9

197163C1

SHEET

BACKSHEET, LH, 22.5 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

10

175311C1

REFLECTOR

red

1шт.

11

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

feeder latch

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

12

177140C1

BAR

feeder latch u-bolt

2шт.

13

155960C1

BELLEVILLE WASHER

u-bolt steel spring

8шт.

14

NSS

NOT SOLD SEPARAT

STRIPPER, adjusting, order package, 180583C91

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

12шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

12шт.

15

197066C3

SHEET

ASSY, LH end

1шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

172480

SCREW,Hex, 3/8" - 16 x 5/8"

3/8 x 5/8 h/hd tap

1шт.

16

189866C1

SUPPORT

hold down end sheet filler LH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

17

189769C1

BEAM

ASSY, lower, 13.0 ft

1шт.

17

197686C1

BEAM

ASSY, lower, 15.0 ft

1шт.

17

189770C1

BEAM

ASSY, lower, 16.5 ft

1шт.

17

189771C1

BEAM ASSY, lower, 17.5 ft

1шт.

17

189772C1

BEAM

ASSY, lower, 20.0 ft

1шт.

17

189773C1

BEAM

ASSY, lower, 22.5 ft

1шт.

120376

NUT,5/16"-18, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 3/4 znp slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

185856C1

ADJUSTMENT SCREW

5/16 x 2 hex-hd cap, full thread

1шт.

18

189395C1

BAND

STRIP, bottom sheet hinge, plastic, 24 for 13.0 ft, 28 for 15.0 ft, 30 for 16.5 ft, 32 for 17.5 ft, 38 for 20.0 ft, 42 for 22.5 ft

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

22236R1

WASHER

17/64 x 1 x 16 ga

1шт.

19

189838C1

BOTTOM

ASSY, left, 13.0 ft

1шт.

19

189839C1

BOTTOM

ASSY, left, 15.0 ft

1шт.

19

189840C1

BOTTOM

ASSY, left, 16.5 ft

1шт.

19

189841C1

PLOW BOTTOM

BOTTOM ASSY, left, 17.5 ft

1шт.

19

189842C1

BOTTOM

ASSY, left, 20.0 ft

1шт.

19

189843C1

BOTTOM

ASSY, left, 22.5 ft

1шт.

155945

SCREW,Cross Flat Hd, #10 - 24 x 3/4"

1шт.

196922C1

LOCK NUT

no. 10 top lock

1шт.

22237R1

WASHER

.203 x .750 x .054

1шт.

20

189102C1

BOTTOM

ASSY, center

1шт.

155945

SCREW,Cross Flat Hd, #10 - 24 x 3/4"

12шт.

196922C1

LOCK NUT

no. 10 top lock

12шт.

22237R1

WASHER

.203 x .750 x .054

12шт.

21

189844C1

BOTTOM

ASSY, right, 13.0 ft

1шт.

21

189845C1

BOTTOM

ASSY, right, 15.0 ft

1шт.

21

189846C1

BOTTOM

ASSY, right, 16.5 ft

1шт.

21

189847C1

BOTTOM

ASSY, right, 17.5 ft

1шт.

21

189848C1

BOTTOM

ASSY, right, 20.0 ft

1шт.

21

189849C1

BOTTOM

ASSY, right, 22.5 ft

1шт.

155945

SCREW,Cross Flat Hd, #10 - 24 x 3/4"

1шт.

196922C1

LOCK NUT

no. 10 top lock

1шт.

22237R1

WASHER

.203 x .750 x .056

1шт.

22

189862C1

BOTTOM

ASSY, inner LH

1шт.

22

189863C1

BOTTOM

ASSY, inner RH, for use w/20 and 22.5 ft

1шт.

155945

SCREW,Cross Flat Hd, #10 - 24 x 3/4"

1шт.

196922C1

LOCK NUT

no. 10 top lock

1шт.

22237R1

WASHER

.203 x .750 x .054

1шт.

23

189949C1

CLAMP

dirt deflector, short

1шт.

24

189881C1

CLAMP,41.15mm ID, 11.89mm Bolt Hole, J Type

bottom sheet hold down, 5 for 13, 15, 16.5 and 17.5 ft, 7 for 20 and 22.5 ft

1шт.

25

1305190C1

CLAMP,40.64mm ID, 11.89mm Bolt Hole, P Type

dirt deflector, long, 2 replace 1 of 189948C1, 50 for 13.0 ft, 58 for 15.0 ft, 56 for 16.5 ft, 60 for 17.5 ft, 70 for 20.0 ft, 80 for 22.5 ft

1шт.

26

27024R1

BOLT,3/8" - 16 x 2 1/4"

U-BOLT, 3/8 x 1.62CL x 2.25 x 1.00

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

4шт.

142619H

WASHER

.406 x .750 x .105

4шт.

27

1320694C1

DECAL

PRODUCT GRAPHIC, danger

1шт.

28

184766C1

DEFLECTOR

CLAMP, dirt deflector, extra long, for 16.5, 17.5, 20 and 22.5 ft

1шт.

29

1305042C1

SHIELD

SUPPORT, auger end

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

6шт.

30

1308247C1

ANGLE

stripper extension

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

4шт.

180583C91

STRIPPER PACKAGE

PACKAGE, adjustable auger stripper bar, consists of, (NSS) stripper (2)

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

12шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock, (NSS) manual, installing

12шт.
