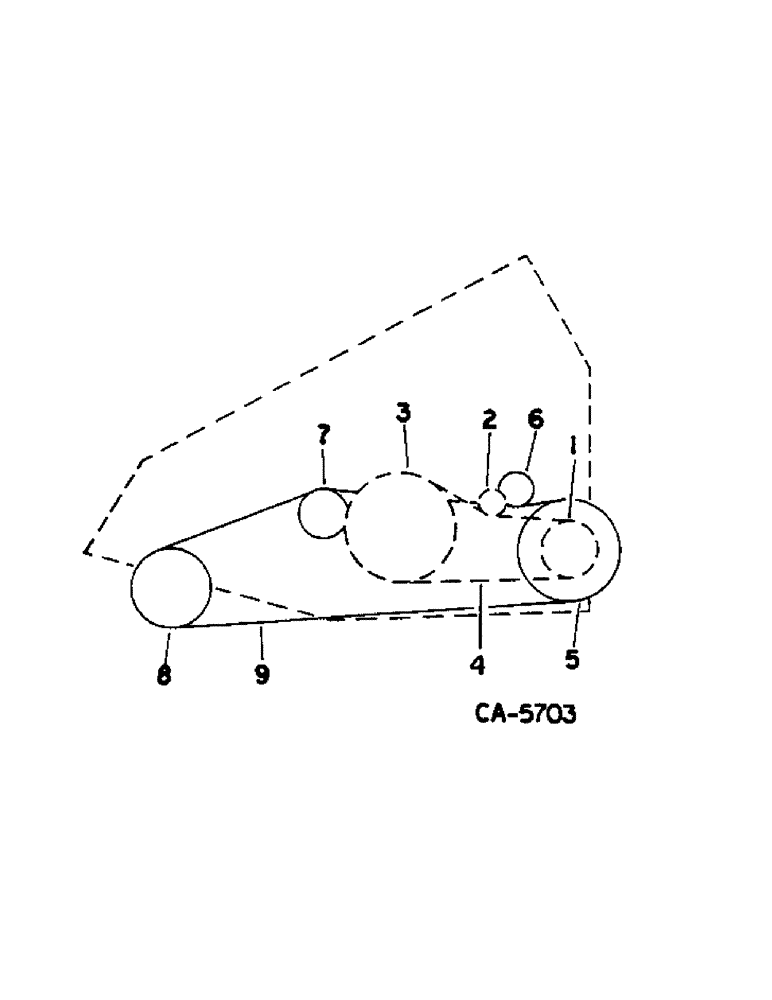

Запчасти Case IH 820 (D-03) - GRAIN HEADER, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, LEFT SIDE (58) - ATTACHMENTS/HEADERS

1

177965C1

SPROCKET ASSY.

SPROCKET, auger drive, 18T

1шт.

1

197991C2

SPROCKET ASSY.

SPROCKET, auger drive, 14T

1шт.

1

1300482C91

SPROCKET ASSY.

SPROCKET ASSY, auger drive, 22T, refer to group 4 under auger and knife drive

1шт.

2

571441R91

SPROCKET ASSY.,15T

SPROCKET, idler, 15T, refer to group 4 under auger and knife drive

1шт.

3

177966C2

SPROCKET ASSY.

SPROCKET W/BUSHING, auger driven, 47T

1шт.

3

1305959C1

PINION

SPROCKET ASSY, auger driven, 22T, refer to group 4 under auger and knife drive

1шт.

4

CHAIN ASSY, auger drive, refer to group 4 under auger and knife drive

1шт.

5

184815C1

PULLEY ASSY.

PULLEY ASSY, knife drive, 10-1/2 in. OD, 266.7mm OD, refer to group 4 under auger and knife drive

1шт.

6

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

ASSY, idler rear, 6 in. OD, 152.4mm OD, refer to group 4 under auger and knife drive

1шт.

7

161173C91

PULLEY

ASSY, idler front, 5.75 in. OD, 146.1mm OD, refer to group 4 under auger and knife drive

1шт.

8

182029C1

PULLEY

driven, 10-1/2 in. OD, 266.7mm OD, refer to group 4 under auger and knife drive

1шт.

9

191305C1

V-BELT,0.879" W x 112.19" L

Drive, Over center, Refer to group 4 under auger and knife drive 0.879" W x 112.19" L

1шт.
