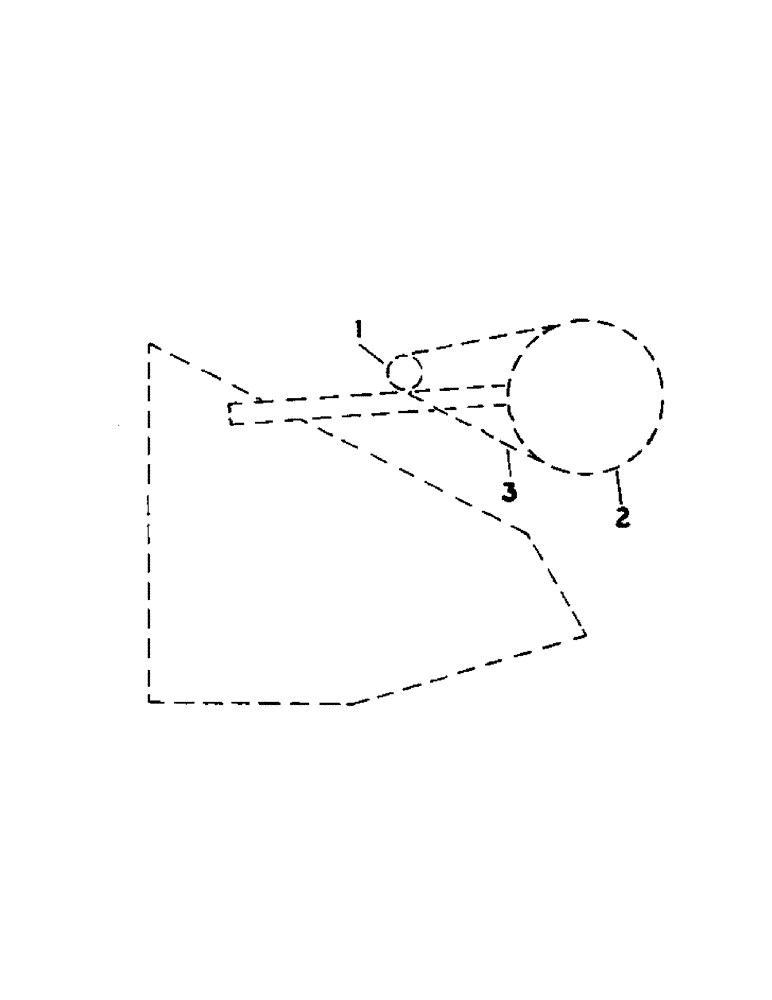

Запчасти Case IH 820 (D-03[A]) - GRAIN HEADER, CHAIN AND SPROCKET DIAGRAM, RIGHT SIDE / PRODUCT GRAPHICS (58) - ATTACHMENTS/HEADERS

1

164961C2

SPROCKET ASSY.

SPROCKET, reel drive, 7T, chain diagram, right side

1шт.

1

1305993C1

DRIVE SPROCKET

SPROCKET, drive, 17T, refer to group 6 under hydraulic reel drive and shield, chain diagram, right side

1шт.

2

185517C1

DRIVE SPROCKET

SPROCKET ASSY, reel driven, 100T, refer to group 6 under hydraulic reel drive and shield, chain diagram, right side

1шт.

3

CHAIN ASSY, reel drive, refer to group 6 under hydraulic reel drive and shield, sprocket diagram, right side

1шт.

1300024C92

KIT

product graphic service consists of

1шт.

1320694C1

DECAL

PRODUCT GRAPHIC, danger

3шт.

179749C2

PRODUCT GRAPHIC

danger, (NSS) product graphic, jackshaft align, (NSS) product graphic, knife lub

2шт.

184624C1

PRODUCT GRAPHIC

caution, (NSS) product graphic, important, (NSS) product graphic, lub guide, (NSS) product graphic, height adj, (NSS) product graphic, height

2шт.

185944C1

PRODUCT GRAPHIC

danger, (NSS) product graphic, belt tension, (NSS) product graphic, spring lengths, (NSS) product graphic, ski cleaning

2шт.

547497R92

DECAL

PACKAGE, model designation, consists of, (NSS) designation 8.78 x 2.45 (2), (NSS) model designation 14.08 x 4.50 (2), (NSS) model designation 20.04 x 7.57 (2), (NSS) model designation 15.20 x 7.56 (2), product graphic

1шт.
