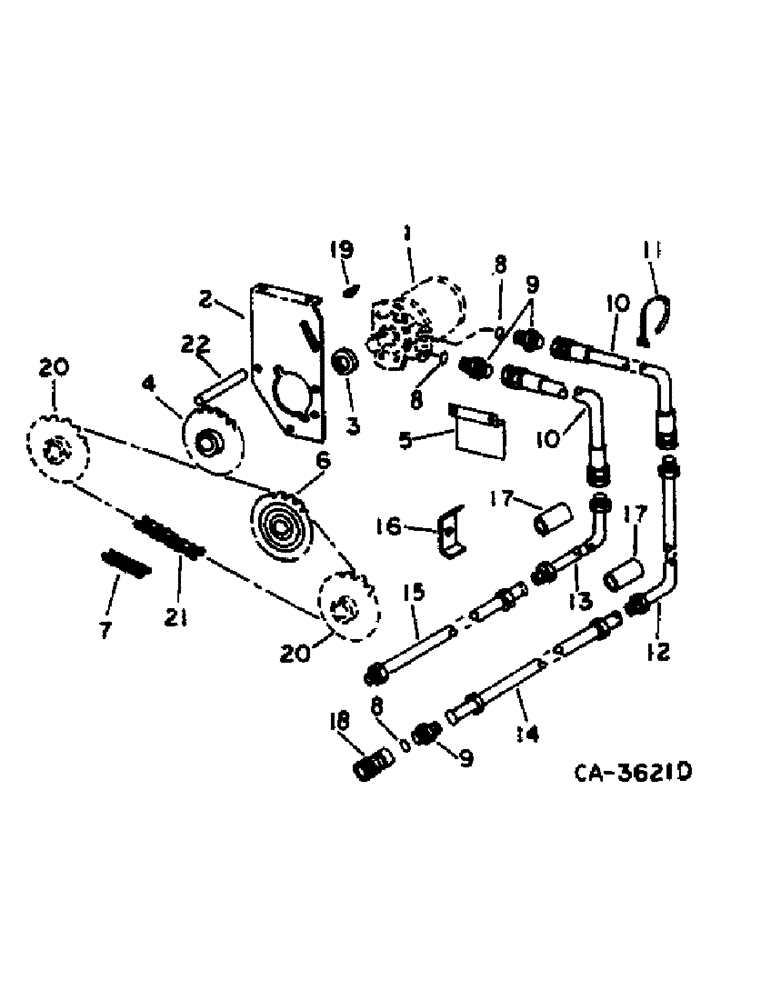

Запчасти Case IH 810 (C-75) - WINDROW PICKUP, HYDRAULIC WINDROW PICKUP, RH DRIVE, NOT FOR 615 COMBINES (58) - ATTACHMENTS/HEADERS

1

173828C91

MOTOR, HYDRAULIC

MOTOR ASSY, hydraulic drive, refer to this section group 6 under hydraulic reel drive motor

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

197822C1

SUPPORT

hydraulic motor, serial no. 37000 and below

1шт.

2

1305970C1

SUPPORT

hydraulic motor, serial no. 37001 and above

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

3

S3780

SPACER,3/8" Pipe x 1 3/4"

1шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga

1шт.

4

179409C1

DRIVE SPROCKET

SPROCKET ASSY, hyd drive, 17T, serial no. 37000 and below

1шт.

4

1305657C1

DRIVE SPROCKET

SPROCKET ASSY, hyd drive, 28T, serial no. 37001 and above

1шт.

23236R1

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW, 3/8NF X3/8 znp c/pt hdl/hs set

1шт.

5

179431C1

GUARD

SHIELD, drive, serial no. 12000 and below

1шт.

5

197823C1

SHIELD

drive, serial no. 12001 and above

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

6

594706R91

SPROCKET ASSY.,15T

SPROCKET ASSY, chain idler, 15T

1шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

7

CHAIN ASSY, drive extension, serial no. 37000 and below, use 11 links from 10 ft roll marked 1791D, 1 connecting link 1310D and 1 offset link 1315D

1шт.

7

CHAIN ASSY, drive extension, serial no. 37001 and above, use 5 links from 10 ft roll marked 1791D, 1 connecting link 1310D and 1 offset link 1315D

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, not hydraulic reel drive

3шт.

9

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 3/4-16 x 7/8-14 37 deg, not hydraulic reel drive

3шт.

10

179411C1

HOSE

hyd drive

2шт.

11

306132C1

CABLE TIE,14.5" L

STRAP, hose tie 14 in

1шт.

12

178854C1

HYD TUBE

TUBE ASSY, outer pressure, not hydraulic reel drive

1шт.

13

178852C1

HYD TUBE

TUBE ASSY, outer return, not hydraulic reel drive

1шт.

14

198328C1

HYD TUBE

TUBE, inner pressure, not hydraulic reel drive, for 10 ft header

1шт.

14

178853C1

HYD TUBE

TUBE, inner pressure, not hydraulic reel drive, for 13, 15, 16.6, 17.5, 20, 22.5 and 24 ft

1шт.

15

198329C1

HYD TUBE

TUBE, inner return, not hydraulic reel drive, for 10 ft header

1шт.

15

178851C1

HYD TUBE

TUBE, inner return, not hydraulic reel drive, for 13, 15, 16.5, 17.5, 20, 22.5 and 24 ft

1шт.

16

165601C1

CLAMP

hyd tube, not hydraulic reel drive

2шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 hex-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

17

163491C1

RUBBER INSULATOR

CUSHION, tube clamp, not hydraulic reel drive

4шт.

18

395150R91

COUPLING, QUICK, FEM

COUPLER, pressure tube female, not hydraulic reel drive

1шт.

19

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

20

SPROCKET ASSY, driven, refer to this section group 9 under windrow pickup

1шт.

21

CHAIN ASSY, drive, refer to this section group 9 under windrow pickup

1шт.

22

510452R1

SPACER,3/8" Pipe x 3 3/4"

3/8 x 3-3/4 std pipe

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

SCREW, 3/8 x 5 hex-hd cap

1шт.
