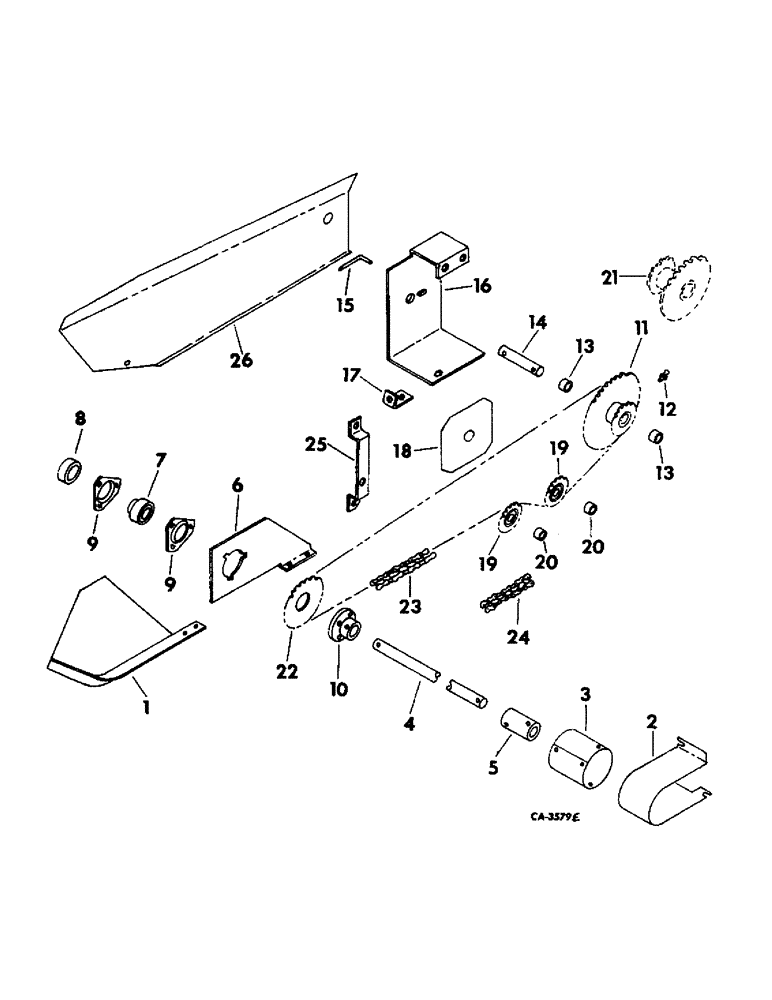

Запчасти Case IH 810 (C-73) - WINDROW PICKUP, MECHANICAL DRIVE, RH, WINDROW PICKUP, S/N 26000 AND BELOW (58) - ATTACHMENTS/HEADERS

1

177723C2

GUARD

SHIELD ASSY, lower, for 10 ft 110 in., 2794.0 mm pickup, for 13 ft 132 in., 3352.8mm pickup

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 znp slt-truss-hd

1шт.

2

176959C2

GUARD

SHIELD, inner drive, for 13 ft 110 in., 2794.8mm pickup, for 15 ft 132 in., 3352.8mm pickup

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 znp slt-truss-hd

1шт.

3

176960C1

GUARD

SHIELD, outer drive, for 13 ft 110 in., 2794.0mm pickup, for 15 ft 132 in., 3352.8mm pickup

1шт.

935735R1

WING NUT

1/4 wing

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

4

176941C1

SHAFT

pickup drive, for 13 ft 110 in., 2794.0mm pickup, for 15 ft 132 in., 3352.8mm pickup

1шт.

5

176947C1

COUPLING, BREAK AWAY

COUPLING, drive shaft, for 13 ft 110 in., 2794.0mm pickup, for 15 ft 132 in., 3352.8mm pickup

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

6

176952C1

SUPPORT

pickup drive shaft, for 13 ft 110 in., 2794.0mm pickup, for 15 ft 132 in., 3352.8mm pickup

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

142619H

WASHER

13/32 x 3/4 x 11 ga

1шт.

8

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

ASSY, drive shaft ball, for 13 ft 110 in., 2794.0mm pickup, for 15 ft 132 in., 3352.8mm pickup

1шт.

8

557115R11

COLLAR

COLLAR W/SET SCREW, brg lkg, for 13 ft 110 in., 2794.0mm pickup, for 15 ft 132 in., 3352.8mm pickup

1шт.

9

571425R1

FLANGED BEARING

drive shaft brg, for 13 ft 110 in., 2794.0mm pickup, for 15 ft 132 in., 3352.8mm pickup

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

10

176961C1

HUB ASSY.

HUB ASSY, pickup driven

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

11

178054C91

DRIVE SPROCKET

SPROCKET ASSY, drive double, 18T and 42T, serial no. 12000 and below

1шт.

11

197589C91

SPROCKET ASSY.

SPROCKET ASSY, drive double, 18T and 42T, serial no. 12001 thru 26000, includes ref. no. 13

1шт.

12

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 drive thd self-tap. lub

1шт.

13

165704C1

BUSHING

sprocket hub, serial no. 12000 and below

2шт.

13

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

sprocket hub, serial no. 12001 thru 26000

2шт.

14

178057C1

ROD

drive support, serial no. 12000 and below

1шт.

14

197591C1

SHAFT

reversing sprocket, serial no. 12001 thru 26000

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.06 x 2.00 x .13

1шт.

15

55074C1

PIN

retainer, serial no. 12000 and below

1шт.

16

178058C1

SUPPORT

drive, serial no. 12000 and below

1шт.

16

197613C1

SUPPORT

drive, serial no. 12001 thru 26000

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

178059C1

TOOL

BRACE, drive support, serial no. 12000 and below

1шт.

17

197612C1

SUPPORT

BRACE, drive support, serial no. 12001 thru 26000

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

18

178060C1

GUARD

SHIELD, idler sprocket

2шт.

19

565442R91

SPROCKET

idler bearing, 17T

2шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 hex-hd

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 sq-nk crg

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.53 x 1.06 x .10

1шт.

23300R1

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

.53 sq x 1.50 x .12

1шт.

20

872534R1

SPACER,1/2" Pipe x 3/8"

1/2 x .375 std pipe, serial no. 12000 and below

2шт.

21

SPROCKET, jackshaft double, refer to this section group 6 under mechanical jackshaft drive

1шт.

22

162251C1

SPROCKET ASSY.

SPROCKET, driven, 22T, 365 RPM

1шт.

22

162248C1

SPROCKET ASSY.

SPROCKET, driven, 24T, 334 RPM

1шт.

22

162249C1

SPROCKET ASSY.

SPROCKET, driven, 27T, 297 RPM

1шт.

22

162252C1

SPROCKET ASSY.

SPROCKET, driven, 30T, 267 RPM

1шт.

22

162250C1

DRIVE SPROCKET

SPROCKET, driven, 37T, 217 RPM, parts accessory

1шт.

22

162254C1

SPROCKET ASSY.

SPROCKET, driven, 47T, 171 RPM, parts accessory

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

CHAIN ASSY, drive, use 147 links from 10 ft roll marked 1791D, 1 connecting link 1310D, 2 offset link 1315D

1шт.

24

CHAIN ASSY, drive extension, use 5 links from 10 ft roll marked 1791D and 2 connecting link 1310D, 1 offset link 1315D and 1 roller link 1309D

1шт.

25

179285C1

SUPPORT

pickup drive idler

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

26

187265C1

GUARD

SHIELD, pickup drive

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

.41 x 1.0 x .12

1шт.
