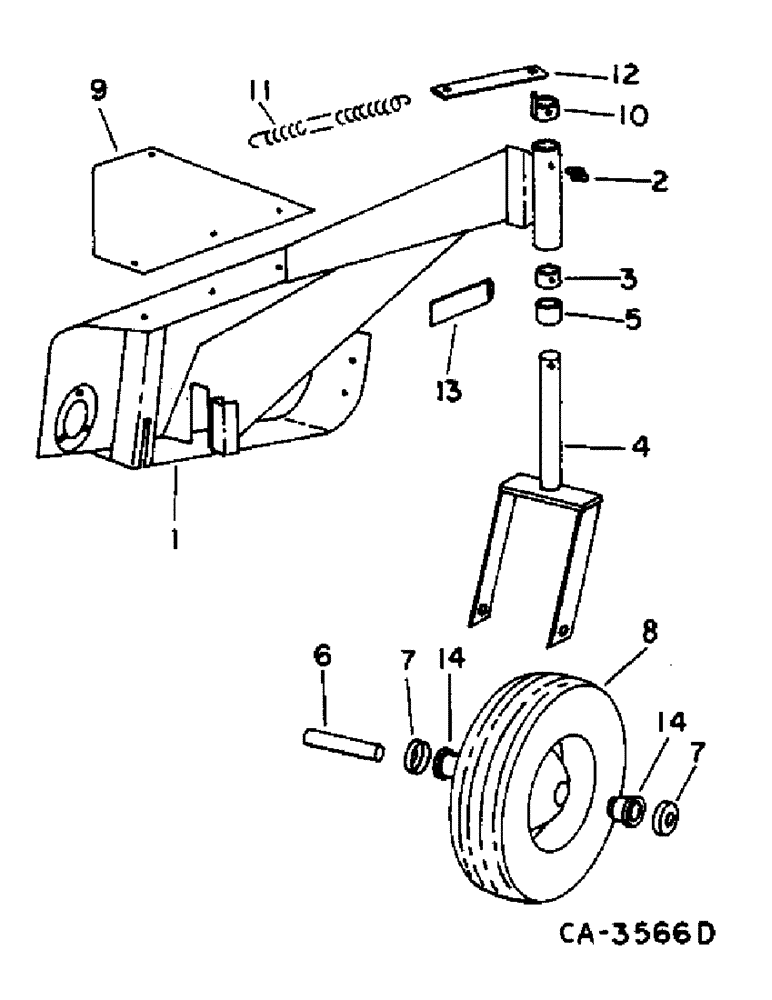

Запчасти Case IH 810 (C-71) - WINDROW PICKUP, GAUGE WHEEL (58) - ATTACHMENTS/HEADERS

1

197807C93

SUPPORT

ASSY, guage wheel LH, includes ref. no. 3

1шт.

1

197808C93

SUPPORT

ASSY, gauge wheel RH, includes ref. no. 3

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str lub

2шт.

3

454172R1

BUSHING

pivot tube

4шт.

4

176919C2

CLEVIS

YOKE ASSY, gauge wheel, serial no. 19000 and below

2шт.

4

197821C1

CLEVIS

YOKE ASSY, gauge wheel, serial no. 19001 and above

2шт.

586591R1

COTTER PIN

PIN, 1/8 quick attachable cot

1шт.

21916R1

PIN

1/4 x 2 znd std-hd

1шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

5

155228C1

SPACER,1 3/8" Tube x 1"

6шт.

6

176923C1

BUSHING

gauge wheel inner

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

5/8 x 7 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

176924C1

CUP

gauge wheel brg

4шт.

8

176925C1

WHEEL

W/TIRE AND TUBE, gauge, includes ref. no. 14

2шт.

9

176940C1

GUARD

SHIELD, guage wheel rear

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

21496R1

WASHER

.34 x .75 x .12

1шт.

10

179485C1

HUB

ASSY, wheel fork LH

1шт.

10

179486C1

HUB

ASSY, wheel fork RH

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

20945R1

HEADED PIN,1/4" x 2 3/4"

PIN, 1/4 x 2-3/4 std-hd

1шт.

NLS

NO LONGER SERVICED

.53 x 1.06 x .10

1шт.

11

580107R1

SPRING

wheel

2шт.

12

642187C1

BAR

wheel hub tie

2шт.

13

174732C1

REFLECTOR

amber

1шт.

14

180695C1

BUSHING

gauge wheel hub

4шт.
