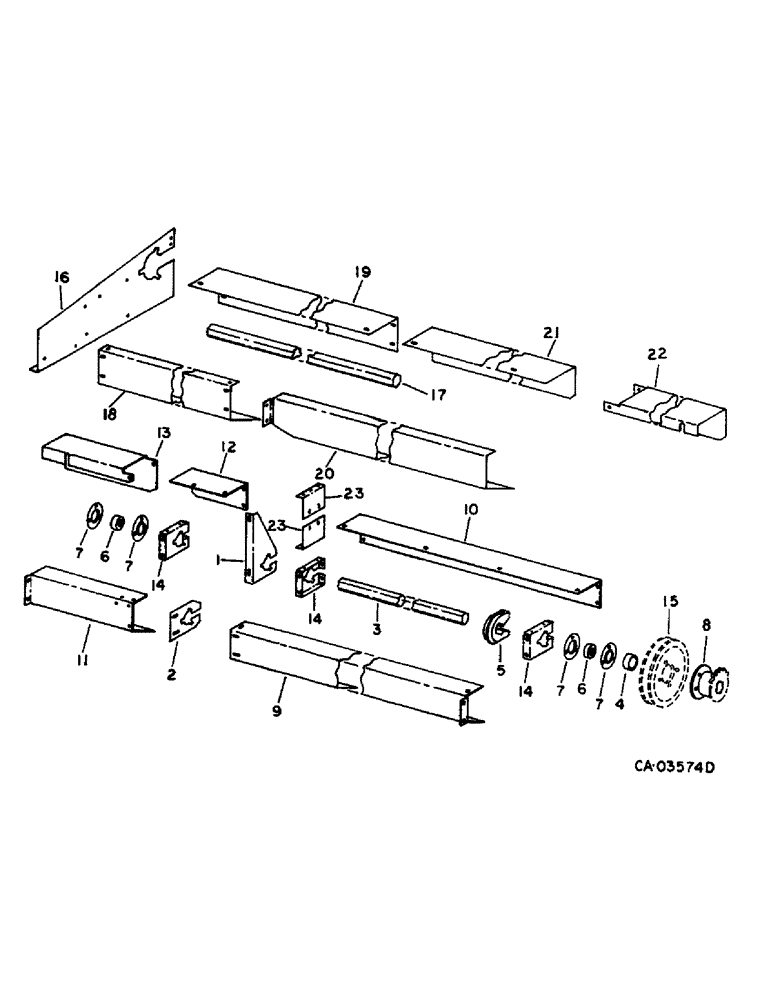

Запчасти Case IH 810 (C-67) - HEADER JACKSHAFT, HEADER, JACKSHAFT DRIVE (58) - ATTACHMENTS/HEADERS

1

176861C2

BRACKET

header jackshaft brg, serial no. 12000 and below, for 10, 13, 15 and 17.5 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 slt-truss-hd

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 hex-hd

1шт.

20824R1

WASHER

11/32 x 1-1/2 x .054

1шт.

2

176862C1

BRACKET

header jackshaft brg, for 20, 22.5, 24 and 30 ft

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

3

176879C1

SHAFT

JACKSHAFT, header, for 10 ft

1шт.

3

176880C1

JACKSHAFT

header, for 13 ft

1шт.

3

176881C1

JACKSHAFT

header, for 15 ft

1шт.

3

197167C1

JACKSHAFT

header, for 16.5 ft

1шт.

3

176882C1

JACKSHAFT

header, for 17.5 ft

1шт.

3

176883C1

JACKSHAFT

header, for 20 ft

1шт.

3

197168C1

JACKSHAFT

header for, 22.5 ft

1шт.

3

176884C1

SHAFT

JACKSHAFT, header, for 24 ft

1шт.

3

187382C3

SHAFT

JACKSHAFT, header LH, for 30.0 ft

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga znd

1шт.

4

650363R1

SPACER

1-1/4 x 1 std pipe, 1 for 10.0 thru 24.0 ft, 2 for 30.0 ft

1шт.

5

225265R1

CLAMP

COLLAR, jackshaft, replaces 177961C1, 1 for 10.0 thru 24.0 ft, 2 for 30.0 ft

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING, outboard, 1 for 10, 13, 15, 16.5 and 17.5 ft, 2 for 20, 22.5 and 24 ft, 6 for 30.0 ft

1шт.

7

180955C1

FLANGED BEARING,0.375"

FLANGE, outboard bearing, 2 for 10, 13, 15, 16.5 and 17.5 ft, 4 for 20, 22.5 and 24 ft, 12 for 30.0 ft

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

142619H

WASHER

13/32 x 3/4 x 11 ga

1шт.

8

197598C1

SPROCKET ASSY.

SPROCKET ASSY, auger & pickup double drive, 16T and 18T, for 10, 13 and 16.5 ft, refer to this section group 4 under auger and knife drive

1шт.

9

178237C1

GUARD

SHIELD, header, jackshaft front outer, for 10 ft, serial no. 12000 and below

1шт.

9

197388C1

GUARD

SHIELD ASSY, jackshaft lower, 10 ft, serial no. 12001 and above

1шт.

9

178238C1

GUARD

SHIELD, header jackshaft front outer, for 13 ft, serial no. 12000 and below

1шт.

9

197389C1

GUARD ASSY.

SHIELD ASSY, jackshaft lower, 13 ft, serial no. 12001 and above

1шт.

9

178239C1

GUARD

SHIELD, header jackshaft front outer, for 15 ft, serial no. 12000 and below

1шт.

9

197390C1

GUARD ASSY.

SHIELD ASSY, jackshaft lower, 15 ft, serial no. 12001 and above

1шт.

9

197391C1

GUARD ASSY.

SHIELD ASSY, lower, 16.5 ft, serial no. 12001 and above

1шт.

9

178240C1

SHIELD

header jackshaft front outer, for 17.5 ft, serial no. 12000 and below

1шт.

9

197392C1

GUARD ASSY.

SHIELD ASSY, jackshaft lower, 17.5 ft, serial no. 12001 and above

1шт.

9

178241C2

SHIELD

header jackshaft front outer, for 20 ft

1шт.

9

197171C2

SHIELD

header jackshaft front outer, for 22.4 ft

1шт.

9

178242C1

GUARD

SHIELD, header jackshaft front outer, for 24 ft

1шт.

9

185882C1

SUPPORT

SHIELD, front outer LH, for 30.0 ft

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

10

178243C1

GUARD

SHIELD, header jackshaft rear outer, for 10 ft, serial no. 12000 and below

1шт.

10

197398C2

GUARD

SHIELD, jackshaft upper outer, 10 ft, serial no. 12001 and above

1шт.

10

178244C1

GUARD

SHIELD, header jackshaft rear outer, for 13 ft, serial no. 12000 and below

1шт.

10

197399C2

GUARD

SHIELD, jackshaft upper outer, 13 ft, serial no. 12001 and above

1шт.

10

178245C1

GUARD

SHIELD, header jackshaft rear outer, for 15 ft, serial no. 12000 and below

1шт.

10

197400C2

SHIELD

jackshaft upper outer, 15 ft, serial no. 12001 and above

1шт.

10

197401C2

SHIELD

header jackshaft upper outer, for 16.5 ft

1шт.

10

178246C1

GUARD

SHIELD, header jackshaft rear outer, for 17.5 ft, serial no. 12000 and below

1шт.

10

197402C2

SHIELD

jackshaft upper outer, 17.5 ft, serial no. 12001 and above

1шт.

10

178247C3

GUARD

SHIELD, header jackshaft rear outer, for 20 ft

1шт.

10

197172C3

GUARD

SHIELD, header jackshaft rear outer, for 22.5 ft

1шт.

10

178248C2

SHIELD

header jackshaft rear outer, for 24 ft

1шт.

10

185884C1

GUARD

SHIELD, rear outer LH, for 30.0 ft

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

11

179255C1

GUARD

SHIELD ASSY, front inner, for 10, 13, 15 and 17.5 ft, serial no. 12000 and below

1шт.

11

179256C1

GUARD ASSY.

SHIELD ASSY, front inner, for 20, 22.5 and 24 ft

1шт.

11

185886C2

SHIELD

ASSY, front inner LH, for 30.0 ft

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

12

178251C1

GUARD

SHIELD, header jackshaft rear inner, for 10, 13, 15 and 17.5 ft, serial no. 12000 and below

1шт.

12

178252C1

SHIELD

header jackshaft rear inner, for 20, 22.5 and 24 ft

1шт.

12

185890C2

GUARD

SHIELD, rear inner LH, for 30.0 ft

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

13

178253C1

COVER

header jackshaft coupling LH

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

546766R1

HEADED PIN,3/8" x 5 1/2"

PIN, 3/8 x 5.5 znd std-hd

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

14

178254C1

SUPPORT

header jackshaft shield, 2 for 10, 13, 15, 16.5 and 17.5 ft, 4 for 20, 22.5 and 24 ft, 10 for 30.0 ft

1шт.

15

PULLEY ASSY, drive, refer to this section group 4 under auger and knife drive

1шт.

16

185893C1

SUPPORT

auger drive RH, for 30.0 ft

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flnge lock

3шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

3шт.

17

1305892C3

SHAFT

jack RH, for 30.0 ft

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

608085R1

WASHER

1.406 x 2.000 x .054

1шт.

18

185883C1

SUPPORT

front outer RH, for 30.0 ft

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

4шт.

19

185885C1

GUARD

SHIELD, reasr outer RH, for 30.0 ft

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

7шт.

20

185887C2

GUARD

SHIELD ASSY, front inner RH, for 30.0 ft

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

21

185891C1

SHIELD

rear inner RH, for 30.0 ft

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

9шт.

22

185798C1

GUARD

COVER, jackshaft coupling RH, for 30.0 ft

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

546766R1

HEADED PIN,3/8" x 5 1/2"

PIN, 3/8 x 5.500 hd type 1

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

23

1313803C1

SUPPORT

jackshaft shield, for 30.0 ft

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.
