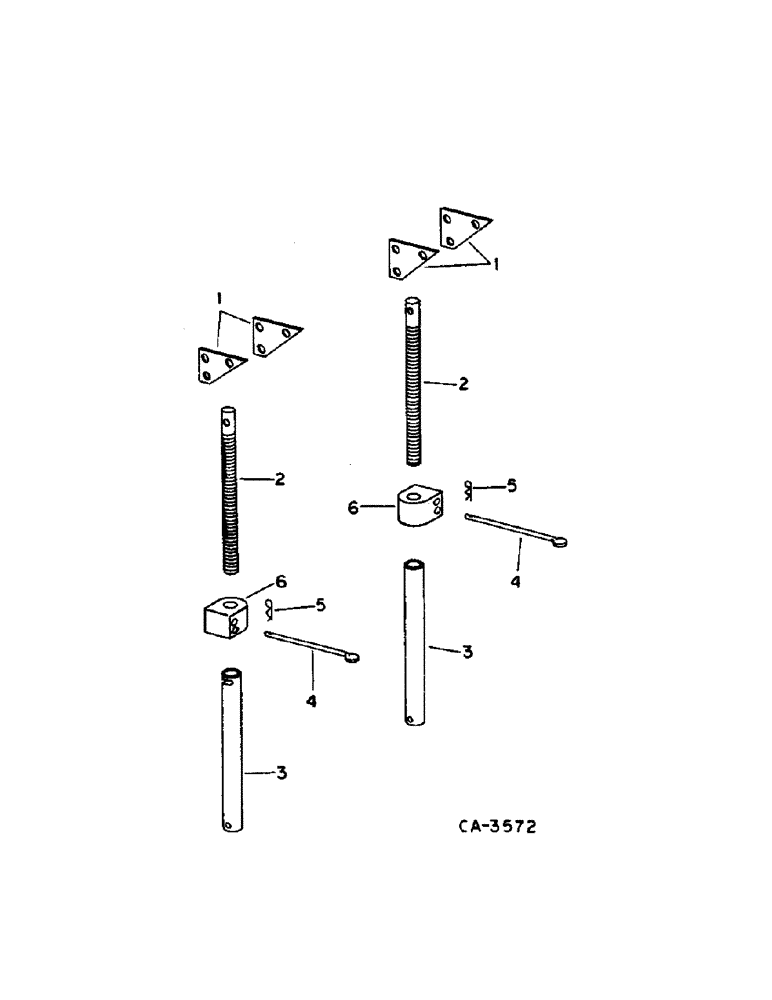

Запчасти Case IH 810 (C-66[A]) - REEL, MECHANICAL REEL LIFT FOR HEADERS W/SERIAL NO. 23000 AND BELOW (58) - ATTACHMENTS/HEADERS

1

176725C1

PLATE

reel lift bolt

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

176726C1

BOLT

reel lift turnbuckle

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2.500 hd type 1

1шт.

3

176727C1

TUBE,1.28" ID, 1.66" OD, 15.5" Length

reel lift

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2.750 hd type 1

1шт.

4

176730C1

ROD

reel lift

2шт.

5

520175R1

CLIP

PIN, 3/16 QA cot.

2шт.

6

176731C1

BOLT,1" - 8

NUT, reel lift

2шт.
