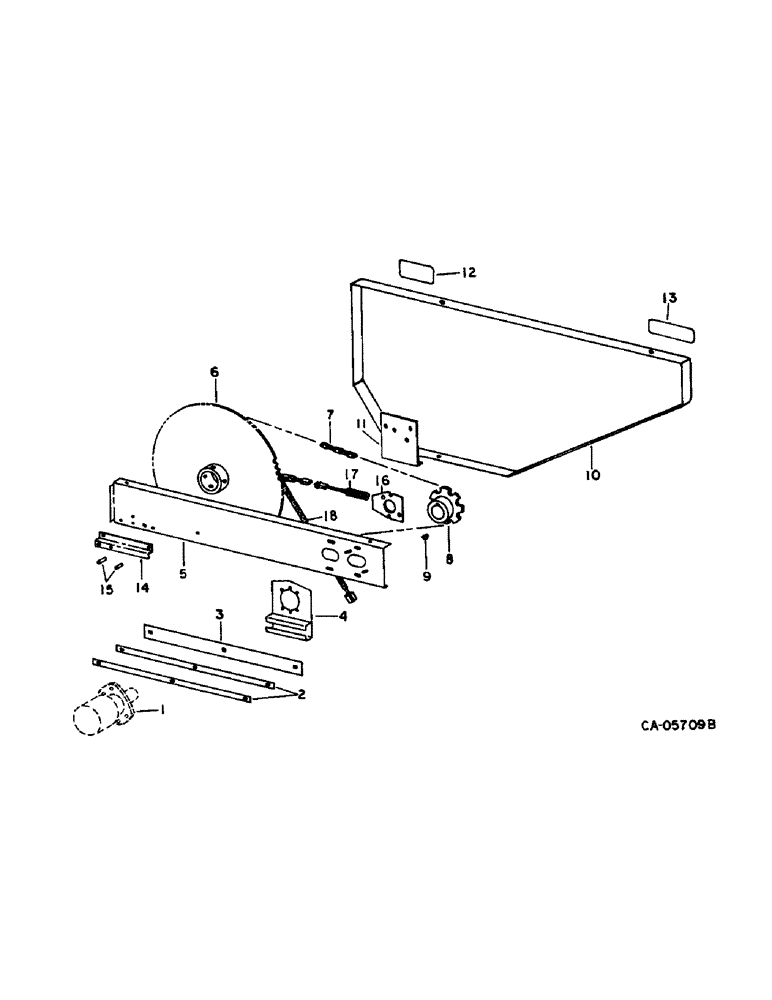

Запчасти Case IH 810 (C-65) - REEL, HYDRAULIC REEL DRIVE, SERIAL NO. 30001 AND ABOVE (58) - ATTACHMENTS/HEADERS

1

173828C91

MOTOR, HYDRAULIC

MOTOR ASSY, hydraulic reel drive, refer to this section group 6 under hydraulic reel drive motor

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607895R1

WASHER

.531 x 1.000 x .105

1шт.

2

189321C1

BAR

motor slide inner

2шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 crg type 1

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

3

189320C1

BAR

motor slide outer

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 crg type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

4

189317C1

SUPPORT ASSY.

SUPPORT ASSY, hyd drive motor

1шт.

5

185511C2

SUPPORT ASSY.

SUPPORT ASSY, Serial Range: reel-motor

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

2шт.

6

185517C1

DRIVE SPROCKET

SPROCKET ASSY, reel driven, 100T

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

16883D

CLEVIS PIN,7/16" x 2.781"

PIN, 7/16 x 2.781 pln clevis

1шт.

7

CHAIN ASSY, reel drive, serial no. 37000 and below or for use w/combine w/o electro hydraulic control system, use 79 links from 10 ft roll marked 569089R91 and 1 connecting link 587372R91

1шт.

7

CHAIN ASSY, reel drive, serial no. 37001 and above, use 79 links from 10 ft roll marked 569089R91, 1 connecting link 587372R91 and 1 offset link 456929R91

1шт.

8

164961C2

SPROCKET ASSY.

SPROCKET, drive, 7T, serial no. 37000 and below or for use w/combine w/o electro hydraulic control system

1шт.

8

1305993C2

SPROCKET

ASSY, drive, 17T, serial no. 37001 and above or for use w/combines w/electro hydraulic control system

1шт.

23236R1

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW, 3/8NF x 3/8 znp c/pt hdl/hs set

1шт.

9

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

10

184743C91

GUARD ASSY.

SHIELD ASSY, reel drive, includes ref. nos. 12 and 13

1шт.

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

1/4-20 x 1/2 thumb

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

11

185833C1

SUPPORT ASSY.

SUPPORT ASSY, lower, for use w/bat reel

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

2шт.

11

185513C1

SUPPORT

shield, for use w/pickup reel

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

274993

SHIELD

3/8 CAD p/t lock type 1

1шт.

12

179749C2

PRODUCT GRAPHIC

danger

1шт.

13

185944C1

PRODUCT GRAPHIC

danger, reel lift safety lock

1шт.

14

185830C1

SUPPORT

reel to motor angle, for use w/bat reel

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

15

SA10227

SPACER,3/8" Pipe x 1 1/8"

3/8 x 1-1/8 std pipe, for use w/bat reel

2шт.

16

1301575C2

SUPPORT

reel speed

1шт.

17

1301241C1

SENSOR

CONVEYOR, reluctance

1шт.

107827

NUT,Stamped, 3/4"-16

3/8 C-Z stamped

1шт.

18

1301584C1

WIRE HARNESS

HARNESS ASSY, reel speed

1шт.
