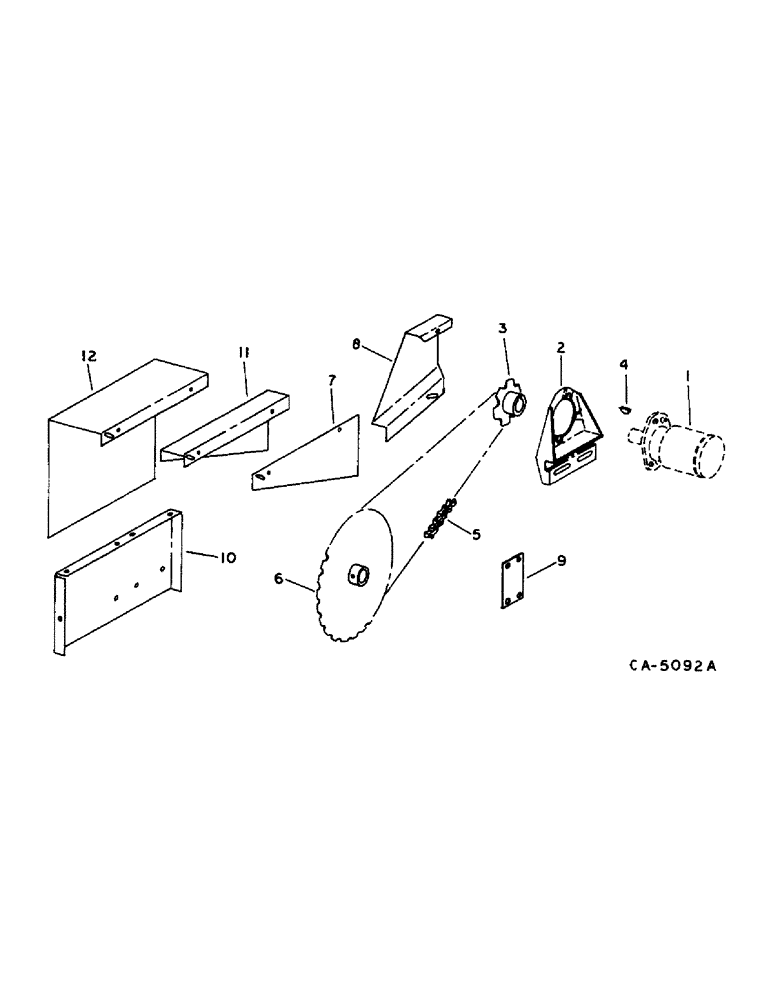

Запчасти Case IH 810 (C-64) - REEL, HYDRAULIC REEL DRIVE, SERIAL NO. 30000 AND BELOW (58) - ATTACHMENTS/HEADERS

1

173828C91

MOTOR, HYDRAULIC

MOTOR ASSY, hydraulic drive, refer to this section group 6 under hydraulic reel drive motor

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 hex-hd

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

607895R1

WASHER

.53 x 1 x .12

1шт.

2

178429C2

SUPPORT

hyd reel drive motor

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2 x 3-1/2 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

460908R1

WASHER

.531 x 1.50 x .120

1шт.

3

164961C2

SPROCKET ASSY.

SPROCKET, reel drive, 7T

1шт.

23236R1

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW, 3/8-24 x 3/8 C-Z hex-soc-hd

1шт.

4

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

5

CHAIN ASSY, reel drive, use 69 links from 10 ft roll marked 569089R91, 5 connecting links 587372R91, 2 offset links 456929R91 and 5 roller links 456979R91

1шт.

6

174536C1

SPROCKET ASSY.

SPROCKET ASSY, reel driven, 100T

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

56272R1

CLEVIS PIN,7/16" x 2 11/16"

PIN, 7/16 x 2-11/16 rod end

1шт.

7

187264C1

BAR

reel driven sprocket

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

142619H

WASHER

.41 x .75 x .12

1шт.

8

178228C1

GUARD

SHIELD, reel drive sprocket, serial no. 23000 and below

1шт.

8

187252C1

GUARD

SHIELD, reel drive sprocket, serial no. 23001 and above

1шт.

9

179056C1

PLATE

EXTENSION, shield support

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 prevailing torque hex.

1шт.

10

179057C1

PLATE

EXTENSION, shield, serial no. 23000 and below

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

11

187251C1

SUPPORT

reel driven

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

187266C1

SUPPORT

reel driven sprocket

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.
