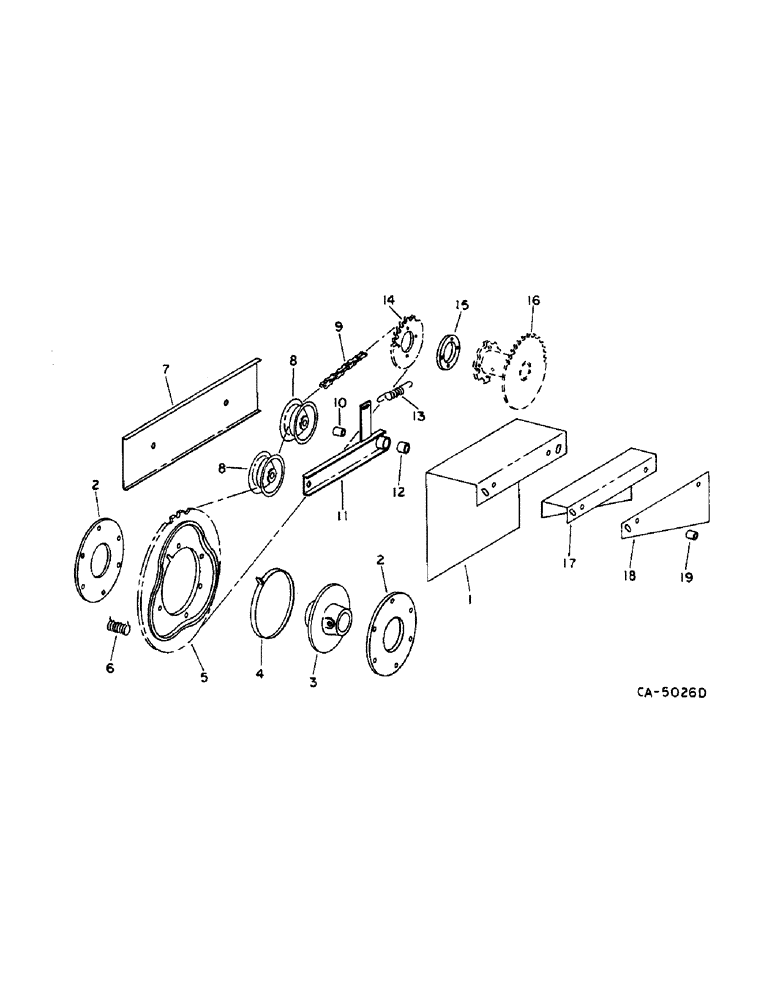

Запчасти Case IH 810 (C-63) - REEL, MECHANICAL REEL DRIVE, SERIAL NO. 26000 AND BELOW (58) - ATTACHMENTS/HEADERS

1

187266C1

SUPPORT

reel driven slip clutch

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

2

569436R1

PLATE

reel clutch clamp for IH reel

2шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

3

633173R1

HUB

reel clutch, for IH reel

1шт.

18801R1

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2

7/16-14 x 2-3/4 hex-hd

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

4

570029R1

BAND

reel clutch for IH reel

1шт.

5

570032R1

SPROCKET ASSY.

SPROCKET, reel shaft driven, 29T, for IH reel

1шт.

6

568243R1

SPRING

reel clutch, for IH reel

3шт.

7

187253C1

GUARD

SHIELD, reel idler

1шт.

8

559168R91

PTO

PULLEY, chain idler brg, 3-1/2 in. OD, 88.9 mm OD

2шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 znd hex-hd mach.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

9

CHAIN ASSY, reel drive, use 85 links from 10 ft roll marked 569089R91 and 2 connecting link 587372R91, one offset link 456929R91 and 1 roller link 456979R91

1шт.

10

675601R1

SPACER

pivot

1шт.

11

170726C91

ARM

ASSY, chain idler, includes ref. no. 12

1шт.

18817R1

BOLT,Hex, 1/2" - 13 x 6", Gr 2

1/2 x 6 hex-hd

1шт.

231-1448

NUT,1/2"-13, GB

1/2 nylon insert

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20601R1

WASHER

.531 x 1.250 x .12

1шт.

12

398274R1

BUSHING,19.07mm ID x 22.24mm OD x 31.75mm L

idler arm

1шт.

13

662632R1

SPRING

idler

1шт.

19264R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 2

1/2 x 4-1/4 hex-hd

1шт.

231-1448

NUT,1/2"-13, GB

1/2 nylon insert

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

14

179037C1

DRIVE SPROCKET

SPROCKET, reel drive, 19T

1шт.

14

179038C1

DRIVE SPROCKET

SPROCKET, reel drive, 22T

1шт.

14

179039C1

DRIVE SPROCKET

SPROCKET, reel drive, 25T

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

179040C1

SPACER

reel drive sprocket

1шт.

16

SPROCKET W/BUSHINGS, jackshaft double, refer to this section goup 6 under mechanical jackshaft drive

1шт.

17

187251C1

SUPPORT

reel driven sprocket

1шт.

19532R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 2

3/8 x 1/2 hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

18

187264C1

BAR

reel driven sprocket shield

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

142619H

WASHER

.41 x .75 x .12

1шт.

19

85490H

SPACER

reel drn sprocket shield support, for pickup reel

2шт.
