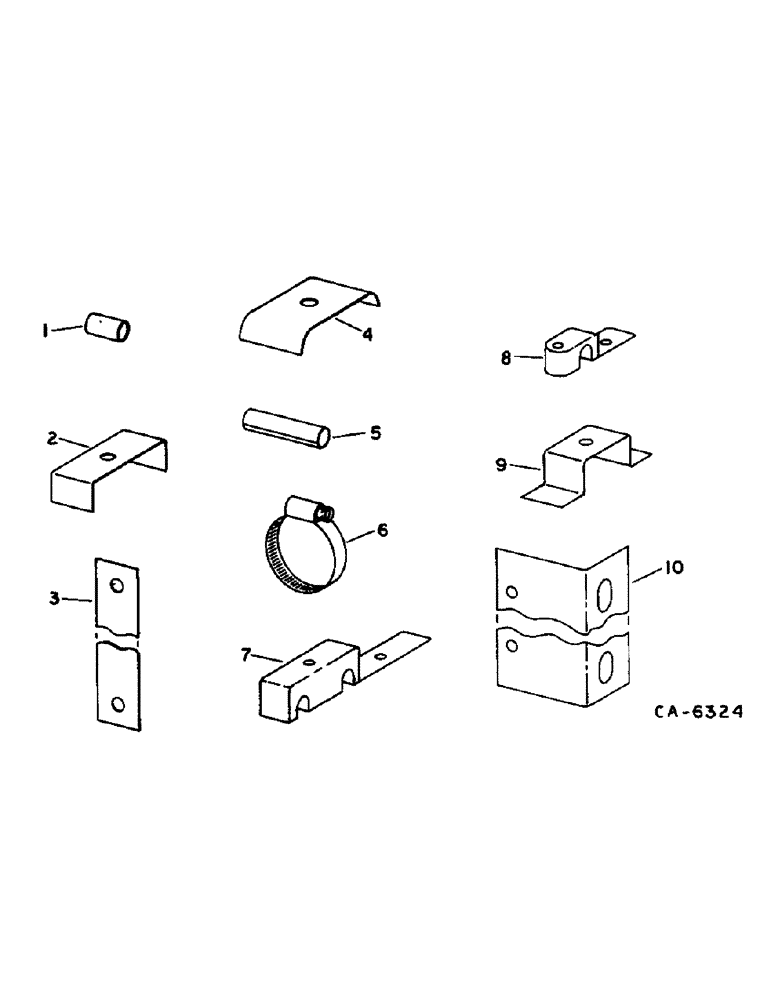

Запчасти Case IH 810 (C-61) - REEL, HYDRAULIC CLAMPS, STRIPS AND SUPPORTS (58) - ATTACHMENTS/HEADERS

1

61851V

SPACER,1/4" Pipe x 3/4"

Pipe 1/4" Pipe x 3/4"

1шт.

2

178816C1

CLIP

hose

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

BOLT, 5/16 x 1-1/4 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

178815C1

STRAP

hose support RH, not floating cutter nar

1шт.

4

165602C1

CLAMP

hyd tube, for reel lift

1шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

165601C1

CLAMP

hyd tube, for reel drive

1шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

163490C1

RUBBER INSULATOR

CUSHION, tube clamp, for 1/2 in., 12.7 mm tube, for reel lift

1шт.

5

163491C1

RUBBER INSULATOR

CUSHION, tube clamp, for 3/8 in., 9.7 mm tube, for reel drive

1шт.

6

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, cylinder tube, for reel lift

1шт.

7

1301178C1

CLAMP

hyd tube, for reel drive, for 30.0 ft

6шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

6шт.

7

183825C1

CLAMP

hyd tube, for 30.0 ft, for reel lift

6шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

6шт.

8

183821C1

CLAMP

hyd tube, for 30.0 ft

4шт.

8

196447C1

CLAMP

tube, for 30.0 ft

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

9

1301323C1

CLAMP

hose

2шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

1301258C1

SUPPORT

tube, for 30.0 ft

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.
