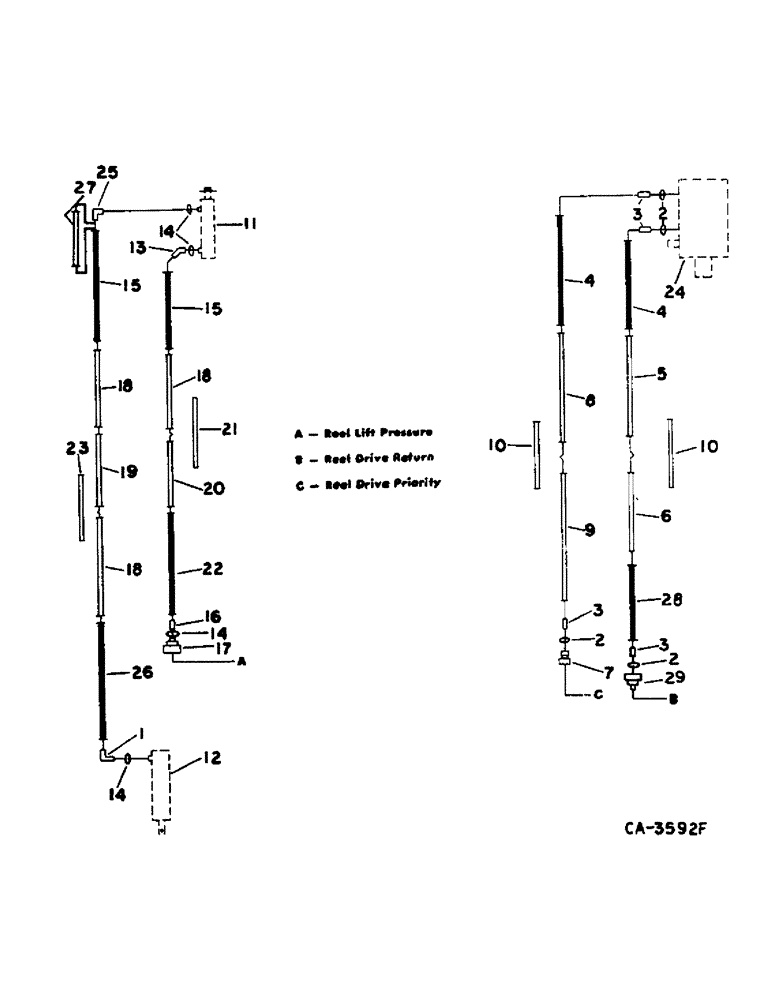

Запчасти Case IH 810 (C-59) - REEL, HYDRAULIC DIAGRAM, REEL DRIVE AND REEL LIFT FOR HEADERS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
9/16-18 37 deg hyd tube 90 deg, not floating cutter bar
1шт.
1
9411104
ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
9/16-18 37 deg hyd tube 45 deg, for floating cutter bar
1шт.
2
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
for 5/8 OD tube
4шт.
3
481352R1
HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring
CONNECTOR, 3/4-16 x 7/8-14 37 deg hyd
4шт.
4
587582R91
HOSE ASSY.
HOSE ASSY, hyd motor, 29 in., 736.6 mm, serial no. 30000 and below
2шт.
4
185853C1
HOSE
ASSY, hyd motor, 33 in., 838.2 mm, not for 30.0 ft, serial no. 30001 and above
2шт.
4
150885C91
HOSE,0.38" ID x 25.00", SAE 100R1
Hydaulic Motor, 0.38" ID x 25.00", SAE 100R1
2шт.
5
178852C1
HYD TUBE
TUBE, outer return, not for 30.0 ft
1шт.
5
1301256C1
HYD TUBE,0.5" OD, 1902, 75 mm Length
TUBE, outer return, for 30.0 ft
1шт.
6
178851C1
HYD TUBE
TUBE, inner return, not for 30.0 ft
1шт.
6
1301255C1
HYD TUBE
TUBE, inner return, for 30.0 ft
1шт.
7
395150R91
COUPLING, QUICK, FEM
COUPLING ASSY, self-sealing, female
1шт.
8
178854C1
HYD TUBE
TUBE, outer pressure, not for 30.0 ft
1шт.
8
1301254C1
HYD TUBE,0.5" OD, 1941, 64 mm Length
TUBE, outer pressure, for 30.0 ft
1шт.
9
178853C1
HYD TUBE
TUBE, inner pressure, not for 30.0 ft
1шт.
9
1301257C1
HYD TUBE
TUBE, inner pressure, for 30.0 ft
1шт.
10
935666R11
PIPE
TUBE, spacer, 12 in., 304.8 mm, 15 ft grain header
2шт.
10
172062C1
TUBE
spacer, 21 in., 533.4 mm, for 16.5 ft
1шт.
10
178856C1
TUBE
spacer, 27 in., 685.8 mm, 17.5 ft grain header
2шт.
10
178857C1
TUBE
spacer, 42 in., 1066.8 mm, 20 ft grain header
2шт.
10
175340C1
TUBE
spacer, 56.6 in., 1437.6 mm, for 22.5 and 30.0 ft
2шт.
10
178858C1
TUBE
spacer, 67 in., 1701.8 mm, 24 ft grain header
2шт.
11
547358R94
CYLINDER BLOCK
CYLINDER ASSY, hydraulic reel lift master, for components see catalog cyl, 1 section B
1шт.
26204R1
HEADED PIN,1/2" x 2 1/4"
PIN, 1/2 x 2.250 hd type 5
1шт.
23173R1
CLEVIS PIN
PIN, 1/2 x 2.750 hd type 5
1шт.
547388R94
SEAL KIT
KIT, hyd. cylinder
1шт.
12
532763R92
CYLINDER ASSY.
CYLINDER ASSY, hydraulic reel lift slave, for components see catalog cyl-1 section A
1шт.
26204R1
HEADED PIN,1/2" x 2 1/4"
PIN, 1/2 x 2.250 hd type 5
1шт.
23173R1
CLEVIS PIN
PIN, 1/2 x 2.750 hd type 5
1шт.
532531R92
SEAL KIT
KIT, hyd. cylinder
1шт.
13
9411104
ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
3/8 C-Z hyd fld adj 45D
1шт.
14
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube
4шт.
15
336081R91
HOSE
ASSY, reel lift, not floating cutter bar
2шт.
15
183708C1
HOSE,0.31" ID x 34.00", SAE 100R1
reel lift, for floating cutter bar
2шт.
15
1317171C1
HOSE
ASSY, reel lift, 52 in/1321mm, for 20, 22.5 and 24.0 ft w/23.6 in., 600 mm auger
2шт.
16
9410202
HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring
CONNECTOR, 3/8 C-Z hyd fld short swivel, not for 715 combine
1шт.
16
587638R1
CONNECTOR, ELEC
CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht, for 715 combine
1шт.
17
187563C1
COUPLING, QUICK, FEM
COUPLING ASSY, self sealing female
1шт.
18
178812C1
HYD TUBE
TUBE ASSY, outer end, not for 30.0 ft
3шт.
18
1301251C1
HYD TUBE,0.375" OD, 1902, 92 mm Length
TUBE ASSY, outer end, for 30.0 ft
3шт.
19
178811C1
HYD TUBE
TUBE ASSY, master to slave cyl center, 1 used for 10.0 thru 24.0 ft, 2 used for 30.0 ft
1шт.
20
178813C1
HYD TUBE,.375" OD, 35, 1.25" Length
TUBE ASSY, pressure to master cylinder center, not for 30.0 ft
1шт.
20
1301252C1
HYD TUBE
TUBE ASSY, pressure to master cylinder, for 30.0 ft
1шт.
21
178817C1
TUBE,0.375" OD, 18" Length
ASSY, spacer, 18 in., 457.2 mm, 13 ft header
1шт.
21
162377C91
TUBE,30" Length
ASSY, spacer, 30 in., 762.0 mm, 15 ft header
1шт.
21
197530C1
TUBE,0.375" OD
ASSY, spacer, 39 in., 990.6 mm, 16.5 ft header
1шт.
21
178818C1
TUBE
ASSY, spacer, 45 in., 1143.0 mm, 17.5 ft header
1шт.
21
178819C1
TUBE
ASSY, spacer, 60 in., 1524.0 mm, 20 ft header
1шт.
21
197531C1
TUBE,75 mm Length
ASSY, spacer, 75 in., 1905.0 mm, 22.5 ft header
1шт.
21
178820C1
TUBE
ASSY, spacer, 85 in., 215.0 mm, 24 ft header
1шт.
21
178811C1
HYD TUBE
TUBE ASSY, pressure to master cylinder, for 30.0 ft
1шт.
22
179202C1
HOSE,7.94mm ID x 1727.2mm L, SAE 100R1
header to combine, 68 in., 1727.2 mm, for 815, 915, 1470 and 1480 combines
1шт.
22
196856C1
HOSE ASSY.
HOSE ASSY, header to combine, 54 in., 1371.6 mm, for 47 in. feeder, for 1420, 1440 and 1460 combines
1шт.
22
178962C1
HOSE ASSY.
HOSE ASSY, header to combine, 60 in., 1524.0 mm, for 54.5 in. feeder, for 1440, 1460 and 1480 combines
1шт.
22
336081R91
HOSE
ASSY, header to combine, 46 in., 1168.4 mm, for 615 and 715 combines
1шт.
23
172015C1
TUBE
ASSY, spacer, 36 in., 914.4 mm, 13 ft header
1шт.
23
178819C1
TUBE
ASSY, spacer, 60 in., 1524.0 mm, 1 for 15 ft header, 2 for 20 ft header
1шт.
23
197530C1
TUBE,0.375" OD
ASSY, spacer, 39 in., 990.6 mm, 2 for 16.5 ft header
1шт.
23
178818C1
TUBE
ASSY, spacer, 45 in., 1143.0 mm, 2 for 17.5 ft header
1шт.
23
197531C1
TUBE,75 mm Length
ASSY, spacer, 75 in., 1905.0 mm, 2 for 22.5 ft header
1шт.
23
178820C1
TUBE
ASSY, spacer, 85 in., 2159.0 mm, 2 for 24 ft header
1шт.
23
183541C2
HYD TUBE
TUBE ASSY, spacer, 99 in., 2514.6 mm, for 30.0 ft
1шт.
24
MOTOR ASSY, reel drive, refer to this section under hydraulic reel drive motor
1шт.
25
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
9/16-18 37 deg hyd tube 90 deg
1шт.
26
336081R91
HOSE
ASSY, reel lift, not floating cutter bar
1шт.
26
183709C1
HOSE
ASSY, reel lift, for floating cutter bar
1шт.
26
1317171C1
HOSE
ASSY, reel lift, 52 in./1321mm, for 20, 22.5 and 24.0 ft w/23.6 in., 600 mm auger
1шт.
27
1301186C1
HYD TUBE
TUBE ASSY, reel lift
1шт.
28
196858C1
HOSE ASSY.
HOSE ASSY, header to combine, for 47 in. feeder, for 1420, 1440 and 1460 combines
1шт.
28
196878C1
HOSE
ASSY, header to combine, for 54.5 in. feeder, for 1440, 1460 and 1480 combines
1шт.
29
395149R1
QUICK MALE COUPLING
COUPLING ASSY, self sealing male
1шт.
Выбрано товаров: 74
