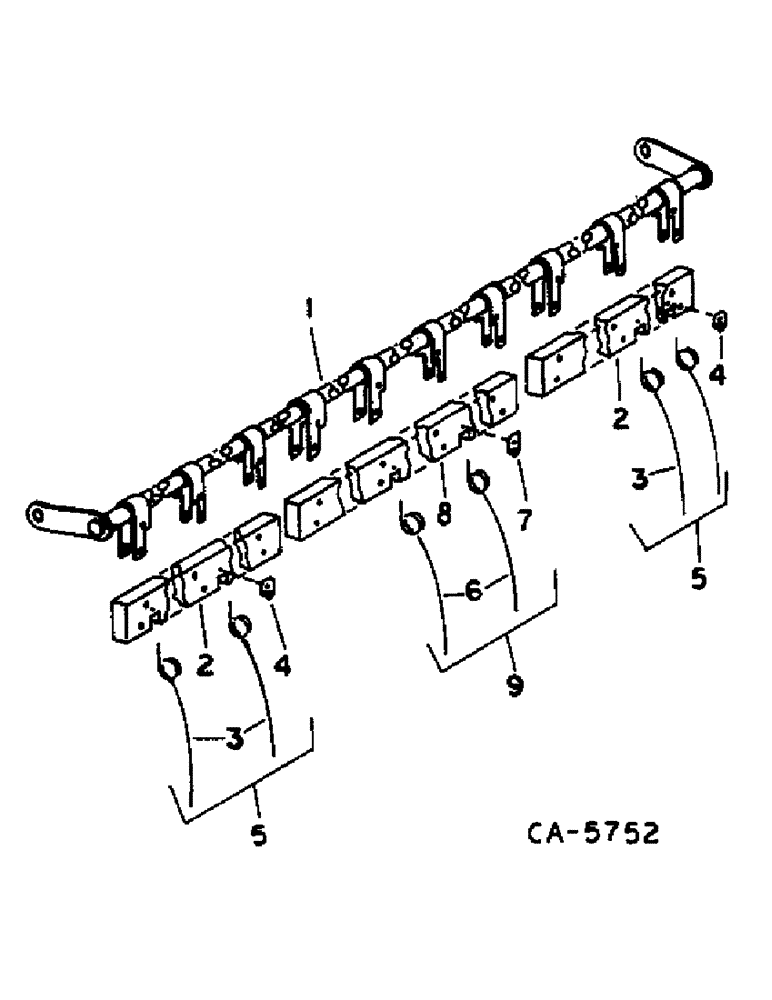

Запчасти Case IH 810 (C-58) - REEL, BAT ASSY, FOR 13.0, 16.5, 20.0 AND 30.0 FT (58) - ATTACHMENTS/HEADERS

1

167682C2

BAT

SHAFT ASSY, bat, 13.0 ft

1шт.

1

167679C2

BAT

SHAFT ASSY, bat, 16.5 ft

1шт.

1

179237C2

SHAFT

ASSY, bat, 20.0 ft

1шт.

1

180137C2

SHAFT

ASSY, bat, 30.0 ft

1шт.

23687R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1 3/8", Gr 2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 3/8", G2

1шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4 CAD p/t lock type 1

1шт.

2

BAT, wood, not serviced separately, order bat assy, ref. no. 5

2шт.

3

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat, 20 for 13.0 ft, 26 for 16.5 ft, 34 for 20.0 ft, 38 for 30.0 ft

1шт.

4

592616R1

CLIP

tine, 20 for 13.0 ft, 26 for 16.5 ft, 34 for 20.0 ft, 38 for 30.0 ft

1шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

3/16 x 1 znp t/hd s/t

1шт.

5

167681C91

BAT ASSY.

BAT ASSY, 43 in., 1092.2 mm, 2 for 13.0 ft

1шт.

5

598188R91

BAT

ASSY, 57 in., 1447.8 mm, 2 for 16.5 ft

1шт.

5

167676C91

BAT

ASSY, 75 in., 1905.0 mm, 2 for 20.0 ft

1шт.

5

185864C91

BAT

ASSY, 83 in., 2108.2 mm, 2 for 30.0 ft, includes ref. nos. 2 thru 4

1шт.

6

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat, 11 for 13.0 ft, 14 for 16.5 ft, 15 for 20.0 ft, 38 for 30.0 ft

1шт.

7

592616R1

CLIP

tine, 11 for 13.0 ft, 14 for 16.5 ft, 15 for 20.0 ft, 38 for 30.0 ft

1шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

3/16 x 1 znp t/hd s/t

1шт.

8

BAT, wood, not serviced separately, order bat assy, ref. no. 9

1шт.

9

167677C91

BAT

ASSY, 49 in., 1244.6 mm, 1 for 13.0 ft

1шт.

9

598194R91

BAT ASSY.

BAT ASSY, 63 in., 1600.2 mm, 1 for 16.5 ft

1шт.

9

167689C91

BAT

ASSY, 69 in., 1752.6 mm, 1 for 20.0 ft

1шт.

9

180138C91

BAT

ASSY, 85.75 in., 2178.1 mm, 2 for 30.0 ft, includes ref. nos. 6 thru 8

1шт.
