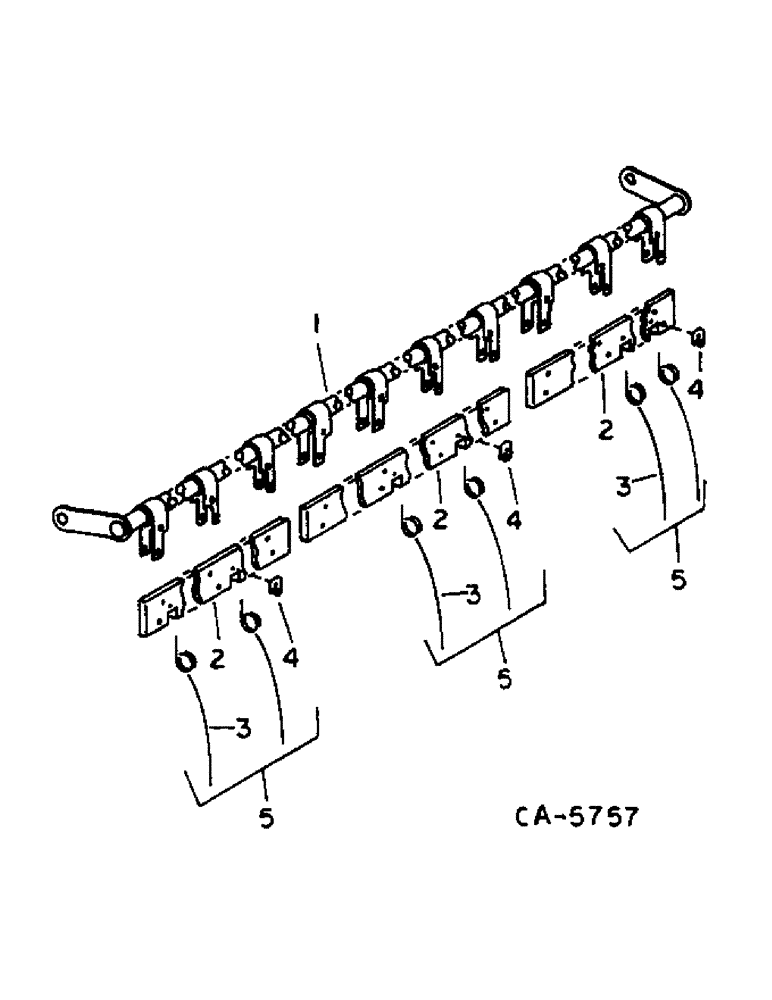

Запчасти Case IH 810 (C-57) - REEL, BAT ASSY, FOR 10.0, 15.0, 17.5, 22.5 AND 24.0 FT. (58) - ATTACHMENTS/HEADERS

1

171847C1

SHAFT

ASSY, bat, 10.0 ft

1шт.

1

179232C2

BAT

SHAFT ASSY, bat, 15.0 ft

1шт.

1

179235C2

SHAFT

ASSY, bat, 17.5 ft

1шт.

1

180232C1

SHAFT

ASSY, bat, 22.5 ft, serial no. 26000 and below

1шт.

1

185865C2

SHAFT

ASSY, bat, 22.5 ft, serial no. 26001 and above

1шт.

1

179239C2

SHAFT ASSY.

SHAFT ASSY, bat, 24.0 ft

1шт.

23687R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1 3/8", Gr 2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 3/8", G2

1шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4 CAD p/t lock type 1

1шт.

2

BAT, wood, not serviced separately, order bat assy, ref. no. 5, 2 for 10.0 ft, 3 for 15.0, 17.5, 22.5 and 24.0 ft

1шт.

3

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat, 22 for 10.0 ft, 36 for 15.0 ft, 42 for 17.5 ft, 57 for 22.5 ft, 60 for 24.0 ft

1шт.

4

592616R1

CLIP

tine, 22 for 10.0 ft, 36 for 15.0 ft, 42 for 17.5 ft, 57 for 22.5 ft, 60 for 24.0 ft

1шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

3/16 x 1 znp t/hd s/t

1шт.

5

171848C91

BAT ASSY.

BAT ASSY, 50.25 in., 1276.4 mm, 2 for 10.0 ft

1шт.

5

179233C91

BAT ASSY.

BAT ASSY, 53 in., 1346.2 mm, 3 for 15.0 ft

1шт.

5

598194R91

BAT ASSY.

BAT ASSY, 63 in., 1600.2 mm, 3 for 17.5 ft

1шт.

5

180233C91

BAT ASSY.

BAR ASSY, 83 in., 2108.2 mm, 3 for 22.5 ft, serial no. 26000 and below

1шт.

5

185864C91

BAT

ASSY, 83 in., 2108.2 mm, 3 for 22.5 ft, serial no. 26001 and above

1шт.

5

179240C91

BAT ASSY.

BAT ASSY, 89 in., 2260.6 mm, 3 for 24.0 ft, incluses ref. nos. 2 thru 4

1шт.
