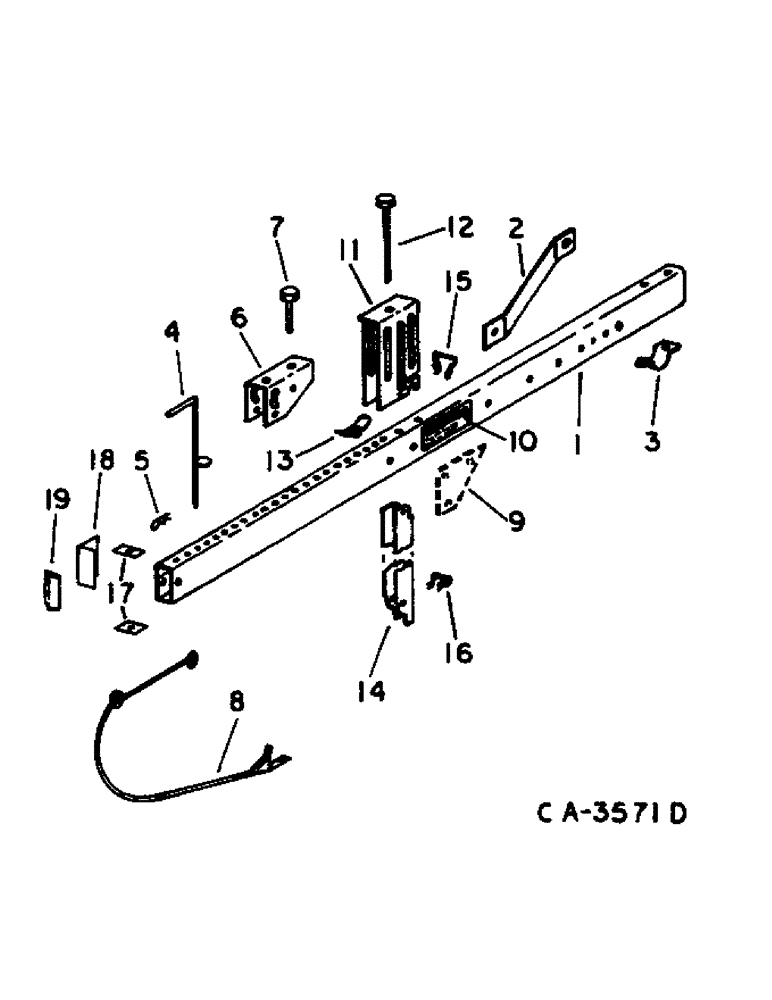

Запчасти Case IH 810 (C-56) - REEL, REEL SUPPORT ARMS (58) - ATTACHMENTS/HEADERS

1

184593C91

ARM

reel support, includes ref. no. 10

2шт.

2

176786C1

BRACE

reel support arm

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

3

176787C2

CLAMP

reel arm

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

4шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 znd type 5

4шт.

4

176788C2

ROD ASSY.

ROD ASSY, reel locking

2шт.

5

586591R1

COTTER PIN

PIN, 1/8 QA cot.

2шт.

6

176728C1

CLEVIS

W/NUT, lift arm, for hydraulic reel lift, serial no. 30000 and below

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.53 x 1.06 x .10

1шт.

7

667486R1

BOLT

BOLT, reel lift arm, for hydraulic reel lift, serial no. 30000 and below

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

8

178618C1

ROD ASSY.

ROD ASSY, divider long LH

1шт.

8

178619C1

ROD ASSY.

ROD ASSY, divider long RH

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

231-1448

NUT,1/2"-13, GB

1/2 p/t lock type 5

2шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 slt-truss-hd

1шт.

22770R1

WASHER

17/32 x 1-1/2 x 8 ga

1шт.

9

PLATE, reel lift bolt, for mechanical reel lift, refer to this section group 6 under mechanical reel lift

4шт.

10

185944C1

PRODUCT GRAPHIC

danger, reel lift safety lock

2шт.

11

185747C1

YOKE

ASSY, reel lift, serial no. 30001 and above

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

460908R1

WASHER

.531 x 1.500 x .105

1шт.

12

565171R1

BOLT,Hex, 1/2" - 13 x 10"

reel lift arm, serial no. 30001 and above

2шт.

13

177531C1

FLANGE NUT

NUT ASSY, wing

2шт.

14

187320C2

SUPPORT

safety

2шт.

15

184875C1

CLIP

safety stand support

2шт.

16

184876C1

CLAMP

CLIP, safety stand retaining

2шт.

17

584813R1

STRIP

yoke stop

4шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 type 1

1шт.

359787C1

LOCK NUT,1/2"-13, GC

NUT, 1/2 CAD p/t lock type 8

1шт.

18

185973C1

ANGLE

reflector support, not for 30.0 ft

1шт.

18

1305175C1

ANGLE

reflector support, for 30.0 ft

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 crg type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

19

174732C1

REFLECTOR

amber, for uses w/hart carter floating cutting bar

1шт.
