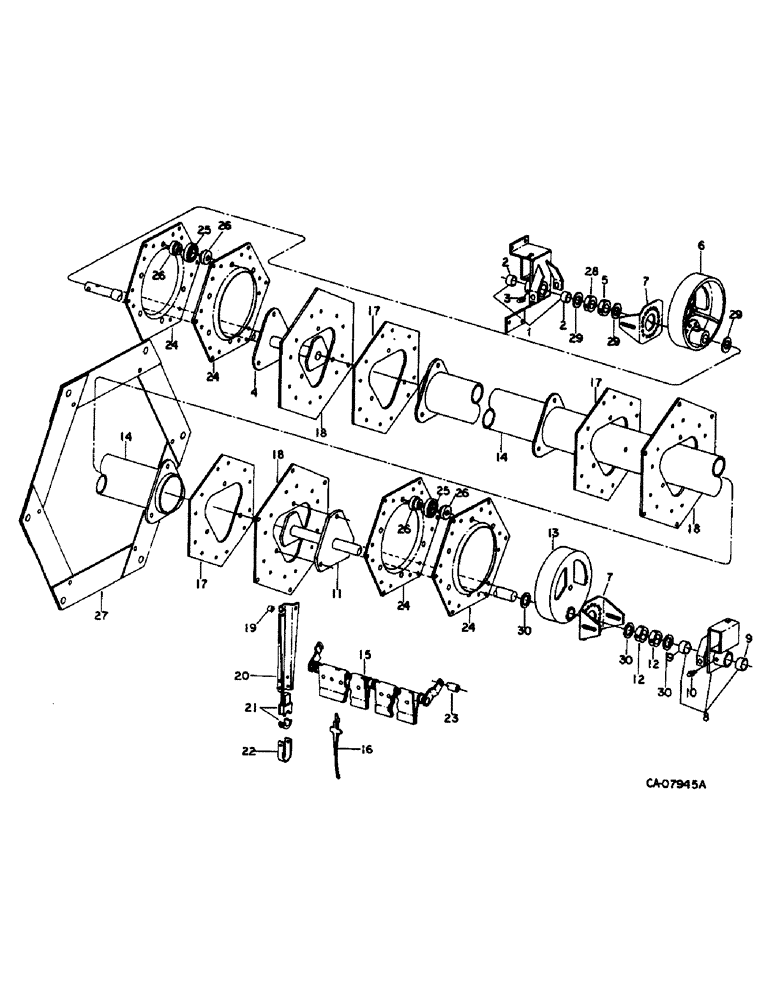

Справочник запчастей Case IH 810 (C-52) - REEL, PICKUP REEL, LOVE, 13, 15, 16.5, 17.5, 20.0, AND 22.5 FT. (58) - ATTACHMENTS/HEADERS со схемами

1

1313303C91

SUPPORT

W/BUSHINGS, drive shaft, includes ref. nos. 2 and 3

1шт.

2

1313304C1

BUSHING

1-3/8 in. ID

2шт.

3

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 ptf short 45D lub

1шт.

4

1324512C1

SHAFT

drive, 29.9 in. long, 13.0 ft. only

1шт.

4

1324511C1

SHAFT

drive, 29.0 in. long, 15.0 ft., 16.5 ft., 17.5 ft., 20.0 ft

1шт.

4

1313309C2

SHAFT

drive, 29.6 in. long, all except 22.0 ft.

1шт.

4

1313461C1

SHAFT

drive

1шт.

609376R1

WASHER

1.781 x 2.500 x .105

1шт.

5

612267R1

COLLAR

1-11/16 in. ID

1шт.

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW, 3/8 x 1/2 c/pt znp hdl/s set

2шт.

6

1313325C1

CAM

eccentric

1шт.

7

1313305C1

CHANNEL, pitch control

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1 type 5

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 type 5

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 CAD p/t lock type 5

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 CAD p/t lock type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

120395

WASHER

.469 x .922 x .051

1шт.

8

1313307C91

SUPPORT

W/BUSHING, eccentric end shaft, for 6 in. ID, 152.4 mm tube, includes ref. nos. 9 and 10

1шт.

8

1313306C91

SUPPORT

W/BUSHING, eccentric end shaft, for 8 in. ID, 203.2 mm tube, includes ref. nos. 9 and 10

1шт.

9

1313308C1

BUSHING

1-1/4 in. ID, for 6 in., 152.4 mm tube

2шт.

9

1313304C1

BUSHING

1-3/8 in. ID, for 8 in., 203.2 mm tube

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

11

1313310C1

SHAFT

eccentric end, for 6 in. ID, 152.4 mm tube

1шт.

11

1313335C1

SHAFT

eccentric end, for 8 in. ID, 203.2 mm tube

1шт.

12

1313311C91

COLLAR

W/SET SCREWS, 1-5/16 in. ID, for 6 in. ID, 152.4 mm tube

1шт.

12

1313312C91

COLLAR

W/SET SCREWS, 1-1/2 in. ID, for 8 in. ID, 203.2 mm tube

1шт.

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW, 3/8 x 1/2 c/pt znp hdl/s set

2шт.

13

1313324C1

CAM

eccentric, for 6 in. ID, 152.4 mm tube

1шт.

13

1313326C1

CAM

eccentric, for 8 in. ID, 203.2 mm tube

1шт.

14

1313327C1

SUPPORT ASSY, center tube, for 13.0 ft

1шт.

14

1313328C1

SUPPORT ASSY, center tube, for 15.0 ft

1шт.

14

1313329C1

SUPPORT ASSY, center tube, for 16.5 ft

1шт.

14

1313330C1

SUPPORT ASSY, center tube, for 17.5 ft

1шт.

14

1313331C1

SUPPORT ASSY, center tube, for 20.0 ft

1шт.

14

1313337C1

SUPPORT ASSY, center tube, for 22.5 ft

1шт.

15

1324499C91

SHAFT

PACKAGE, support w/o tines, 13.0 ft, replaces support w/ tines, 1313340C91

6шт.

Includes tine tool, 1316507C1, also order tine finger package 1326469C1 as required

1шт.

15

1324501C91

SHAFT

PACKAGE, support w/o tines, 15.0 ft., replaces support w/tines, 1313341C91

6шт.

Includes tine tool, 1316507C1, also order tine finger package 1326469C1 as required

1шт.

15

1324503C91

SHAFT

PACKAGE, support w/o tines, 16.5 ft, replaces support w/tines, 1313342C91

6шт.

Includes tine tool, 1316507C1, also order tine finger package 1326469C1 as required

1шт.

15

1324505C91

SHAFT

PACKAGE, support w/o tines, 17.5 ft, replaces support w/tines, 1313343C91

6шт.

Includes tine tool, 1316507C1, also order tine finger package 1326469C1 as required

1шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-3/4 type 5

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock

1шт.

16

1326469C1

FINGER

PACKAGE, tine finger, pkg of 10, replaces tine, 1313314C1, bolt, 180122, lock washer 120383 and nut, 120377, consists of (NSS) finger (10), (NSS) screw (10)

1шт.

13.0 ft. requires 186 tines, 15.0 ft. requires 222 tines, 16.5 ft. requires 246 tines, 17.5 ft. requires 270 tines, 20.0 ft. requires 306 tines, 22.0 ft. requires 348 tines

1шт.

17

1313333C1

FLANGE

SPIDER, small, for 6 in., 152.4 mm tube, 3 for 13.0 ft, 4 for 15.0 thru 20.0 ft

1шт.

17

1313334C1

FLANGE

SPIDER, small, for 8 in. ID, 203.2 mm tube, 5 for 22.5 ft

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

180082

BOLT (SPREADER),Hex, 5/16" - 18 x 1 3/8", Gr 5

BOLT, 5/16 x 1-3/8 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

18

1313332C1

SPIDER

large, for 6 in., 152.4 mm tube, 3 for 13.0 ft, 4 for 15.0 thru 20.0 ft

1шт.

18

1313336C1

FLANGE

SPIDER, large, for 8 in. ID, 203.2 mm tube, 5 for 22.5 ft

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

180082

BOLT (SPREADER),Hex, 5/16" - 18 x 1 3/8", Gr 5

BOLT, 5/16 x 1-3/8 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

19

371108R1

SPACER,3/8" Pipe x .844"

3/8 x .844 std, 48 for 13.0 ft, 60 for 15.0 thru 20.0 ft, 72 for 22.5 ft

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2 type 5

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 CAD p/t lock type 5

1шт.

20

1313319C1

SUPPORT

arm, 30 for 13.0 ft, 36 for 15.0 thru 20.0 ft, 42 for 22.5 ft

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

21

1313462C1

KIT

BASE, batshaft bearing, 1 per suppport

1шт.

22

1313315C1

CLAMP

U-CLEVIS, bearing, 1 per support

1шт.

180085

SPRING

5/16 x 1-3/4 type 5

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock

1шт.

23

1313301C1

BUSHING

reel arm outboard

12шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

7/16 x 2-1/4 type 5

1шт.

1313463C1

FLANGE NUT

NUT, 7/16 flange p/t lock

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21762R1

WASHER

.906 x 1.375 x .120

1шт.

24

1313317C1

FLANGE

eccentric end spider

4шт.

180082

BOLT (SPREADER),Hex, 5/16" - 18 x 1 3/8", Gr 5

BOLT, 5/16 x 1-3/8 type 5

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

25

538961R91

BEARING ASSY,19.995 mm ID x 46.995 mm OD x 13.94 mm

BEARING ASSY, eccentric roller

12шт.

26

1313323C1

WASHER

bearing

24шт.

27

1313339C1

SHIELD

right end

1шт.

27

1313338C1

SHIELD

left end

1шт.

1324493C1

SHIELD

solid

2шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

1шт.

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT, 5/16 p/t lock

1шт.

28

612267R1

COLLAR

11/16 in. ID

1шт.

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW, 3/8 x 1/2 c/pt znp hdl/s set

2шт.

29

609376R1

WASHER

1.781 x 2.500 x .105

2шт.

30

22482R1

WASHER

WSHER, 1.406 x 2.250 x .105, for 6 in. ID, 152.4 mm tube

2шт.

30

21718R1

WASHER

1.531 x 2.250 x .105, for 8 in. ID, 203.2 mm tube

2шт.

1316507C1

TOOL

tine installation

1шт.

1316199C91

KIT

PACKAGE, aux pickup LH, finger, consists of, (NSS) support, (NSS) finger, (NSS) screw

1шт.

1316200C91

KIT

PACKAGE, aux pickup RH, finger, consists of, (NSS) support, (NSS) finger, (NSS) screw

1шт.

Запчасти Case IH 810 (C-52) - REEL, PICKUP REEL, LOVE, 13, 15, 16.5, 17.5, 20.0, AND 22.5 FT. (58) - ATTACHMENTS/HEADERS
