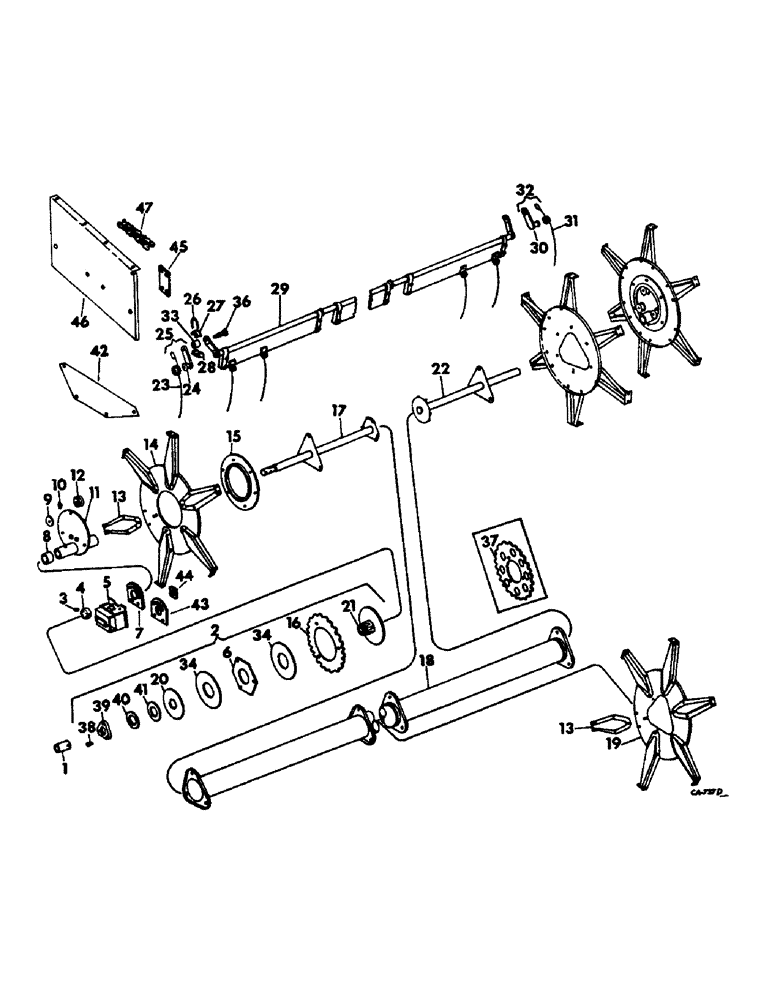

Запчасти Case IH 810 (C-49) - REEL, PICKUP REEL, HART CARTER (58) - ATTACHMENTS/HEADERS

1

167612C1

SPACER

reel driven hub, for hydra reel drive, serial no. 30000 and below

1шт.

2

165329C91

COVER ASSY

CLUTCH ASSY, reel drive slip, not for use w/hyd reel drive, serial no. 26000 and below, includes ref nos. 3, 6, 16, 20, 21, 34 and 38 thru 41

1шт.

3

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff, hard, serial no. 26000 and below

1шт.

4

598243R1

NO LONGER SERVICED

COLLAR, order 180400C91, for use w/598217R1 plate

2шт.

4

180400C91

COLLAR

W/SET SCREWS, for use w/827703C1 bar

2шт.

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

3/8-24 x 5/16 hex-soc-hd

1шт.

5

179230C1

BRACKET

eccentric adjusting LH

1шт.

5

179231C2

BRACKET

eccentric adjusting RH, serial no. 30000 and below

1шт.

5

185524C1

SUPPORT

BRACKET, eccentric adjusting LH

1шт.

5

185521C1

ANGLE

BRACKET, eccentric adjusting RH, serial no. 30001 and above

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

633184R1

SET SCREW

1/2 x 2-1/4 sq-hd cup-pt set

1шт.

6

167628C1

WASHER

2-1/8 x 7 x 3/16 friction plate, serial no. 26000 and below

1шт.

7

598217R1

PLATE

eccentric hole adjusting

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 type 1

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

8

167666C1

BUSHING

eccentric roller frame

4шт.

9

167685C1

KNOB

pitch adjustment

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT 1/8"-27 x .66 lg

2шт.

11

598241R11

HUB ASSY.

FRAME ASSY, eccentric roller, for use w/598217R1 plate, includes ref. nos. 8 and 10

2шт.

11

180507C1

HUB ASSY.

HUB ASSY, eccentric roller, for use w/827703C1 bar, includes ref. no. 8, serial no. 30000 and below

2шт.

11

185706C91

HUB ASSY.

HUB ASSY, eccentric roller, for use w/827703C1 bar, includes ref. no. 8, serial no. 30001 and above

2шт.

12

598242R91

ROLLER BEARING,0.376" ID x 2.25" OD x 1"

BEARING ASSY, roller ball

6шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

167654C1

ARM

ASSY, eccentric reel, replaces 167657C1

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd

1шт.

18764T1

BOLT, 5/16 x 3/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

167658C1

PLATE

eccentric spider

2шт.

15

167661C1

RING,271.65mm ID x 320.68mm OD

eccentric control

4шт.

16

167623C1

SPROCKET ASSY.

SPROCKET, slip clutch, 29T, serial no. 26000 and below

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

1шт.

17

179229C1

SHAFT

driving end, for 6 in. dia. center shaft, serial no. 30000 and below

1шт.

17

185519C1

SHAFT

driving end, for 6 in. dia. center shaft, serial no. 30001 and above

1шт.

17

180251C1

SHAFT

driving end, for 8 in. dia. center shaft, serial no. 30000 and below

1шт.

17

185520C1

SHAFT

driving end, for 8 in. dia. center shaft, serial no. 30001 and above

1шт.

17

180134C1

SHAFT

driving end, for 30.0 ft

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

AQ 3/16" x 1 1/2"

1шт.

23040R1

WASHER

1-5/8 x 2-1/4 x 11 ga

1шт.

18

171846C1

SHAFT

center, 10 ft

1шт.

18

167601C1

SHAFT

center, 13 ft

1шт.

18

179234C1

SHAFT

center 15 ft

1шт.

18

167618C1

SHAFT

center, 16.5 ft

1шт.

18

179236C1

SHAFT

center, 17.5 ft

1шт.

18

179238C1

SHAFT

center, 20.0 ft, 6 in. dia., 152.4 mm dia.

1шт.

18

180647C1

SHAFT

center, 20 ft

1шт.

18

180234C1

SHAFT

center, 22.5 ft

1шт.

18

180253C1

SHAFT

center, 24 ft

1шт.

18

180136C1

SHAFT

center, 30.0 ft, 8 in. dia., 203.2 mm dia

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 3/4 crg type 1

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

19

167653C1

PLATE

spider, for 6 in. dia. center shaft, 4 for 10.0 thru 20.0 ft

1шт.

19

180248C1

PLATE

spider, for 8 in. dia. center shaft, 4 for 20, 22.5 and 34 ft, 5 for 30.0 ft

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

167627C1

WASHER

2 x 7 x 3/16 special hex., serial no. 26000 and below

1шт.

21

167624C1

HUB

slip clutch, serial no. 26000 and below

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16 x 3/8 hex-soc-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

167608C1

SHAFT

driven end, for 6 in. dia. center shaft, serial no. 30000 and below

1шт.

22

185522C1

SHAFT

driven end, for 6 in. dia. center shaft, serial no. 30001 and above

1шт.

22

180252C1

SHAFT

driven end, for 8 in. dia. center shaft, serial no. 30000 and below

1шт.

22

185523C1

SHAFT

driven end, for 8 in. dia. center shaft, serial no. 30001 and above

1шт.

22

180135C1

SHAFT

driven end, for 30.0 ft

1шт.

23

167652C1

TINE,Coiled, 1 Prong, 437mm L

FINGER, aux pickup LH

6шт.

24

592627R21

STRAP

ASSY, finger LH

6шт.

25

167605C91

TINE

FINGER ASSY, aux pickup LH, includes ref. nos. 23 and 24

6шт.

26

598236R1

U-BOLT,U, 1/4" - 20

1/4 x 2

1шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 CAD p/t lock type 5

1шт.

27

598235R1

BEARING CAP,1.025"

bearing

1шт.

28

598234R1

BASE

bearing

1шт.

29

BAT ASSY, for 10 thru 30 ft, refer to this section, group 6 under appropriate bat assy

1шт.

30

592627R21

STRAP

ASSY, finger RH

6шт.

31

167651C1

TORSION SPRING

FINGER, aux pickup RH

6шт.

32

167606C91

TINE

FINGER ASSY, aux pickup RH, includes ref nos. 30 and 31

6шт.

33

598246R1

SPACER

.568 ID x .810 OD x 1.25 in. long tubing

12шт.

33

1316568C1

SPACER

.515 ID x .840 OD x 1.12 in. long tubing

12шт.

34

167625C1

FRICTION WASHER

friction, 2-1/8 x 7, serial no. 26000 and below

2шт.

35

(Not used)

1шт.

36

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

1/2 x 2-1/2 hex. shank, used with spacer, 598246R1

12шт.

36

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5, used with spacer, 1316568C1

12шт.

9411818

NUT

1/2-NF CAD p/t lock type 5

12шт.

178374R1

WASHER

.531 x 1.250 x .054, used w/bolt, 827385C1

12шт.

38

168310C1

SPROCKET ASSY.

SPROCKET, reel driven, 50T, slow speed special, not used w/hyd reel drive

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

38

20900R1

SET SCREW

1/2 x 1 C-Z sq-hd cup pt set, serial no. 26000 and below

3шт.

39

167629C1

NUT

adjustment, serial no. 26000 and below

1шт.

40

167610C1

WASHER

2-1/8 x 3-1/2 x 1/4 special, serial no. 26000 and below

1шт.

41

167626C1

WASHER

2-1/8 x 4-1/4 Belleville, serial no. 26000 and below

5шт.

42

180450C1

SHIELD

pickup reel end

12шт.

43

827703C1

BAR

eccentric slot adjusting

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 hex-hd

1шт.

271501

SOCKET

NUT, 7/16-14 hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

44

953254R1

SPACER

SPACER, slot adjusting, for use w/827703C1 bar

2шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

45

179056C1

PLATE

EXTENSION, shield support, mechanical drive, slow speed

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

46

179057C1

PLATE

EXTENSION, shield, mechanical drive, serial no. 23000 and below

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

47

CHAIN ASSY, reel driven extension, slow speed, use 5 links from 10 ft roll marked 569089R91 and 1 connecting link 587372R91

1шт.

180641C91

PACKAGE

SPROCKET PACKAGE, slow speed pick-up reel driven, parts accessory, for mechanical reel drive only reel speeds 17, 21, 24 and 28 RPM, season 1977 and prior, consists of, chain assy, reel drive extension

1шт.

179056C1

PLATE

EXTENSION, shield support

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

2шт.

168310C1

SPROCKET ASSY.

SPROCKET, reel driven, 50T

1шт.

180426C91

KIT

PACKAGE, conversion service, to convert 24 ft pickup reel from 6 in. to 87 in. center tube, consists of

1шт.

180248C1

PLATE

spider

1шт.

180253C1

SHAFT

center

1шт.

180252C1

SHAFT

driven end

1шт.

180251C1

SHAFT

driving end

1шт.
