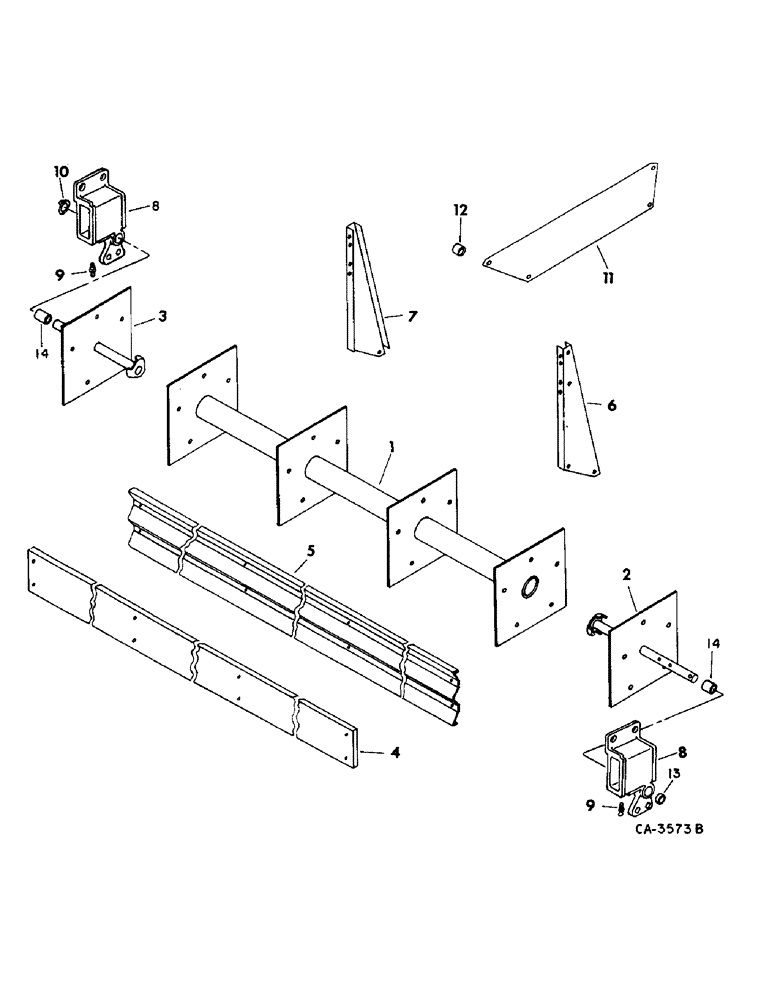

Запчасти Case IH 810 (C-47) - REEL, IH REEL (58) - ATTACHMENTS/HEADERS

1

176771C1

TUBE

ASSY, reel, 10.0 ft

1шт.

1

176772C1

TUBE

ASSY, reel, 13.0 ft

1шт.

1

176773C1

TUBE

ASSY, reel, 15.0 ft

1шт.

1

197201C1

TUBE

ASSY, reel, 16.5 ft

1шт.

1

176774C1

TUBE

ASSY, reel, 17.5 ft

1шт.

1

176775C1

TUBE

ASSY, reel, 20.0 ft

1шт.

1

197202C1

TUBE

ASSY, reel, 22.5 ft

1шт.

1

176776C1

TUBE

ASSY, reel, 24.0 ft

1шт.

1

184930C1

TUBE,8859.5 mm Length

ASSY, reel, 30.0 ft

1шт.

2

176798C1

SHAFT

ASSY, reel drive, serial no. 30000 and below, lh per print

1шт.

2

185772C1

SHAFT

ASSY, reel drive, not for 30.0 ft, serial no. 30001 and above, lh per print

1шт.

2

184927C1

SHAFT

ASSY, RH reel drive, for 30.0 ft

1шт.

3

176802C1

SHAFT

ASSY, reel RH idler, not for 30.0 ft

1шт.

3

184926C1

SHAFT

ASSY, LH reel idler, for 30.0 ft

1шт.

4

176804C1

BAT

reel, 10.0 ft, white

5шт.

4

179107C1

BAT ASSY.

BAT, reel, 13.0 ft, white

5шт.

4

176806C1

BAT

reel, 15.0 ft, white, order 187019C1

1шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 CAD p/t lock type 5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

5

187017C1

BAT ASSY.

BAT, reel, 10.0 ft

5шт.

5

187018C1

BAT ASSY.

BAT, reel, 13.0 ft, black

5шт.

5

187019C1

BAT ASSY.

BAT, reel, 15.0 ft, black

5шт.

5

187020C1

BAT ASSY.

BAT, reel, 16.5 ft, black, replaces 197205C1

5шт.

5

187021C1

BAT ASSY.

BAT, reel, 17.5 ft, black, replaces 176807C1

5шт.

5

187022C1

BAT ASSY.

BAT, reel, 20.0 ft, black, replaces 176808C1

5шт.

5

187023C1

BAT ASSY.

BAT, reel, 22.5 ft, black

5шт.

5

187024C1

BAT ASSY.

BAT, reel, 24.0 ft, black, replaces 176809C1

5шт.

5

187439C1

BAT ASSY.

BAT, reel, 30.0 ft, black

5шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 prevailing torque lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

6

179108C1

SUPPORT

reel bat LH, not for 30.0 ft

10шт.

6

184924C1

SUPPORT

reel bat LH, for 30.0 ft

15шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

7

179109C1

SUPPORT

reel bat RH, not for 30.0 ft

1шт.

7

184925C1

SUPPORT

reel bat RH, for 30.0 ft

15шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

8

176811C2

SUPPORT

reel shaft

2шт.

9

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 str self tapping lub

2шт.

10

633177R1

WASHER

WASHER, cotter pin retaining

1шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

1шт.

Q3859

WASHER

1-25/32 x 2-3/4 x 11 ga

1шт.

11

171396C1

GUARD

5-bat reel end

10шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 hex-hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

61851V

SPACER,1/4" Pipe x 3/4"

Pipe 1/4" Pipe x 3/4"

20шт.

13

185874C1

SPACER

1.81 x 2.12 x .88

1шт.

14

172318C1

SPACER

1.81 x 2.12 x 3.35

2шт.

FOOTNOTE

1шт.
