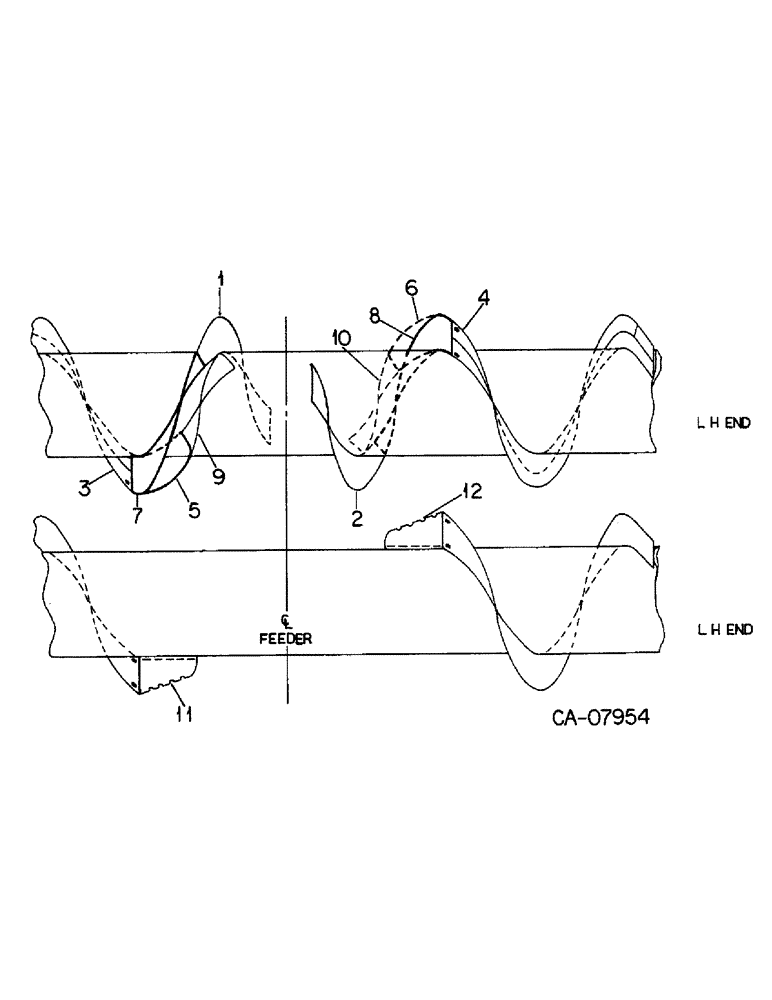

Запчасти Case IH 810 (C-45) - AUGER, AUGER EXTENSIONS, SPECIAL (58) - ATTACHMENTS/HEADERS

1

587775R91

AUGER

EXTENSION ASSY, RH, 20 in., 508.0mm pitch, for downed crops

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

626610R91

AUGER

EXTENSION ASSY, LH, 20 in., 508.0 mm pitch, for downed crops

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

181645C1

DECAL

WEAR STRIP, RH, order package 180990C91

3шт.

3

189671C1

AUGER

WEAR STRIP, RH, order package 180620C91

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

181644C1

DECAL

WEAR STRIP, LH, order package 180990C91

3шт.

4

189670C1

AUGER

WEAR STRIP, LH, order package 180620C91

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

184878C1

EXTENSION ASSY.

EXTENSION ASSY, RH, short, 22.8 in., 579.1 mm pitch, for 30.0 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

3шт.

6

184877C1

AUGER

EXTENSION ASSY, LH, short, 22.8 in., 579.1mm pitch, for 30.0 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

3шт.

7

177029C1

EXTENSION ASSY.

EXTENSION ASSY, RH, 20 in., 508.8 mm pitch, for 615

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

8

177028C1

EXTENSION ASSY.

EXTENSION ASSY, LH, 20 in., 508.0mm pitch, for 615

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

9

184882C1

AUGER

EXTENSION ASSY, RH, long, 22.8 in., 579.1mm pitch, for 30.0 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

4шт.

10

184881C1

AUGER

EXTENSION ASSY, LH, long, 22.8 in., 579.1mm pitch, for 30.0 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

4шт.

11

NSS

NOT SOLD SEPARAT

EXTENSION, RH, order package 1300428C91

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

NSS

NOT SOLD SEPARAT

EXTENSION, LH, order package 1300428C91

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

180620C91

AUGER

WEAR STRIP PACKAGE, 20 in., 508.0mm pitch, parts accessory, for 10.0 thru 17.5 ft w/grain auger, for 20.0 and 22.5 ft w/rice auger, not for 16.5 ft draper extension, consists of ref. nos. 3 and 4

1шт.

180990C91

AUGER

WEAR STRIP PACKAGEM 26 in., 660.4mm pitch, parts accessory, for 20.0, 22.5 and 24.0 ft, w/grain auger, consists of ref. nos. 3 and 4

1шт.

1300428C91

PACKAGE

auger flight extensions, paddle type, for tall dry crops, consists of, (NSS) extension, LH, (NSS) extension, RH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock, (NSS) manual, instruction

6шт.
