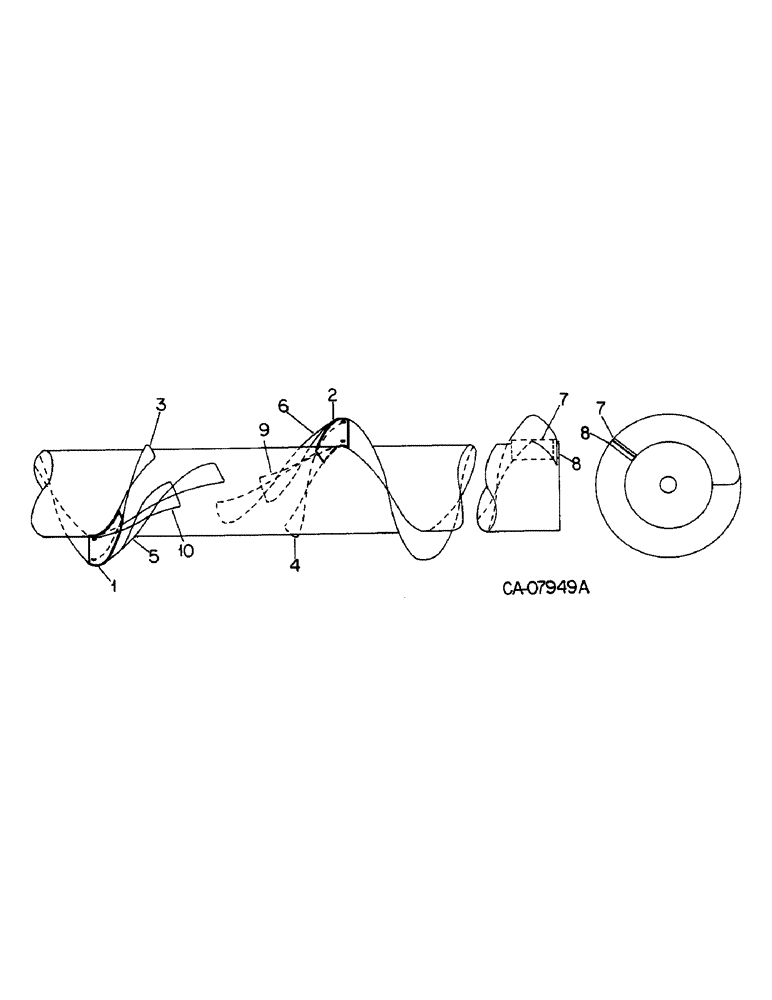

Запчасти Case IH 810 (C-44) - AUGER, AUGER EXTENSIONS, STANDARD (58) - ATTACHMENTS/HEADERS

1

1305933C1

EXTENSION ASSY.

EXTENSION ASSY, RH, short, 20 in., 508.0mm pitch, for grain, not for 30.0 ft, not for 915 and 1480

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

3шт.

2

1305932C1

EXTENSION ASSY.

EXTENSION ASSY, LH, short, 20 in., 508.0mm pitch, for grain, not for 30.0 ft, not for 915 and 1480

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

3шт.

3

1304753C1

AUGER

EXTENSION ASSY, RH, 20 in., 508.0mm pitch, for 1470

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

4

1304752C1

AUGER

EXTENSION ASSY, LH, 20 in., 508.0mm pitch, for 1470

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

5

1313064C1

EXTENSION ASSY.

EXTENSION ASSY, RH, 48 in., 1219.2mm pitch, for rice, special for grain, not for 30.0 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

6

1313063C1

EXTENSION

ASSY, LH, 48 in., 1219.2 mm pitch, for rice, special for grain, not for 30.0 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

7

1304207C1

BAR

paddle, for 1470

2шт.

8

1304208C1

BRACKET

ANGLE, paddle, for 1470

2шт.

9

1308445C2

EXTENSION

ASSY, LH, 56.7 in., 1440.0mm pitch, for 20, 22.5 and 24 ft w/23.6, 6000mm auger

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd, used w/1308445C1

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock, used w/1308445C1

3шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 znp p/hdcr mach, used w/1308445C2

3шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock, used w/1308445C2

3шт.

10

1308446C2

EXTENSION

ASSY, RH, 56.7 in., 1440.0mm pitch, for 20, 22.5 and 24 ft w/23.6 in., 600mm auger

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd, used w/1308445C1

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock, used w/1308445C1

3шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 znp p/hdcr mach, used w/1308445C2

3шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock, used w/1308445C2

3шт.
