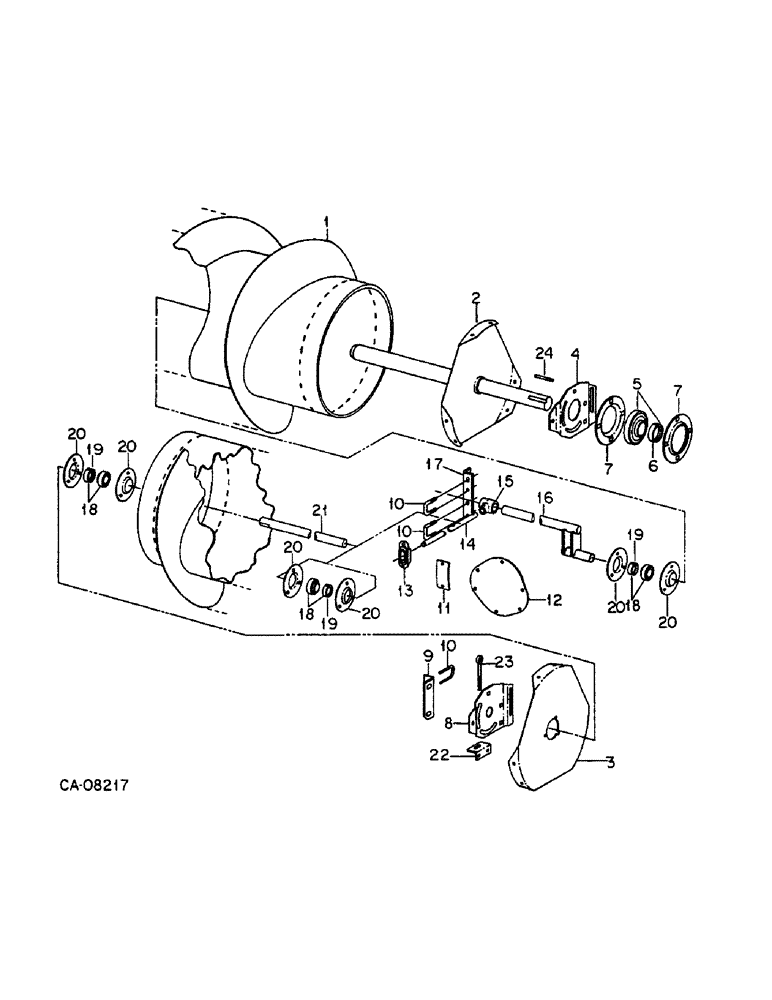

Запчасти Case IH 810 (C-42) - AUGER, HEADER AUGER, 23.6 IN., 600B MM AUGER (58) - ATTACHMENTS/HEADERS

1

1319140C2

AUGER

ASSY, header, for 20.0 ft

1шт.

1

1319141C1

AUGER ASSY, header, for 22.5 ft

1шт.

1

1319142C1

AUGER

ASSY, header, for 24.0 ft

1шт.

1

185993C2

AUGER

ASSY, header, for 30.0 ft

1шт.

2

1319165C1

SHAFT

ASSY, LH drive, for 20.0, 22.5 & 24.0 ft

1шт.

2

185991C1

SHAFT

ASSY, RH drive, for 30.0 ft

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

6шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

6шт.

366862C1

LOCK WASHER,3/8"

3/8"

6шт.

25534R1

WASHER

.406 x .812 x .065 PHC hdn

6шт.

3

1319182C1

SUPPORT

ASSY, RH, for 20.0 22.5 & 24.0 ft

1шт.

3

184502C1

RETAINER

LH shaft, for 30.0 ft

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

25534R1

WASHER

.406 x .812 x .065 PHC hdn

1шт.

4

177081C1

BRACKET

bearing LH, for 20.0, 22.5 & 24.0 ft

1шт.

4

1313877C1

BRACKET

bearing LH, for 30.0 ft

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

5

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

BEARING ASSY, drive shaft

1шт.

6

455112R11

COLLAR

ASSY, bearing locking

1шт.

7

663562R1

FLANGE

drive bearing

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

177082C1

BRACKET

bearing RH, for 20.0, 22.5 & 24.0 ft

1шт.

8

177081C1

BRACKET

bearing RH, for 30.0 ft

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

9

1313062C1

ANGLE

finger adjustment

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

726510R1

U-BOLT,3/8" - 16 x 1 3/4"

3/8 round

3шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 PHC hdn

1шт.

11

167823C1

COVER

finger hole, for 20.0, 22.5 & 24.0 ft

4шт.

273924

SNAP RING

NUT, 1/4 CAD p/t lock type 5

1шт.

1313021C1

SERRATED SCREW,Cross Rec Truss Hd, 1/4" - 20 x 3/4", Cl 8

1/4-20 x 3/4 t/hrc flg lk

1шт.

12

184505C1

COVER

hand hole

2шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 p/hdcr tap

12шт.

13

1307259C2

GUIDE

finger, for 20.0, 22.5 & 24.0 ft

1шт.

127550

NUT,Tee, 1/4"-20

1/4-20 pln tee

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

13

189649C1

GUIDE

finger, for 30.0 ft

16шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 p/hdcr tap

1шт.

14

1308312C1

FINGER

retractable, for 20.0, 22.5 & 24.0 ft

14шт.

14

185987C2

FINGER

retractable, for 30.0 ft

16шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, quick attachable cot.

1шт.

15

1308425C1

HUB

finger, for 20.0 22.5 & 24.0 ft

20шт.

15

187071C1

HUB

finger, for 30.0 ft

16шт.

16

185988C1

SHAFT ASSY.

SHAFT ASSY, finger

1шт.

17

185990C1

ANGLE

finger shaft

1шт.

18

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

shaft inner

3шт.

19

455102R21

COLLAR

W/SET SCREW, bearing locking

3шт.

20

937517R1

FLANGE

inner bearing

6шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

9шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

9шт.

21

189965C1

SHAFT

auger adjusting, for 20.0 ft

1шт.

21

189968C1

SHAFT

auger adjusting, for 22-1/2 ft

1шт.

21

189966C1

SHAFT

auger adjusting, for 24 ft

1шт.

21

187383C2

SHAFT

ASSY, auger LH adjusting, for 30.0 ft

1шт.

22

1313849C1

ANGLE

auger adjusting LH & RH, for 20, 22.5 and 24.0 ft

1шт.

22

177065C1

ANGLE

auger adjusting RH, for 30 ft

1шт.

22

1313849C1

ANGLE

auger adjusting LH, for 30 ft

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

23

180350C1

EYEBOLT,1/2" - 13 x 229mm

BOLT, adjusting eye

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

.531 x 1.000 x .054 sq/h

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

24

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 sq gib head tapered

1шт.
