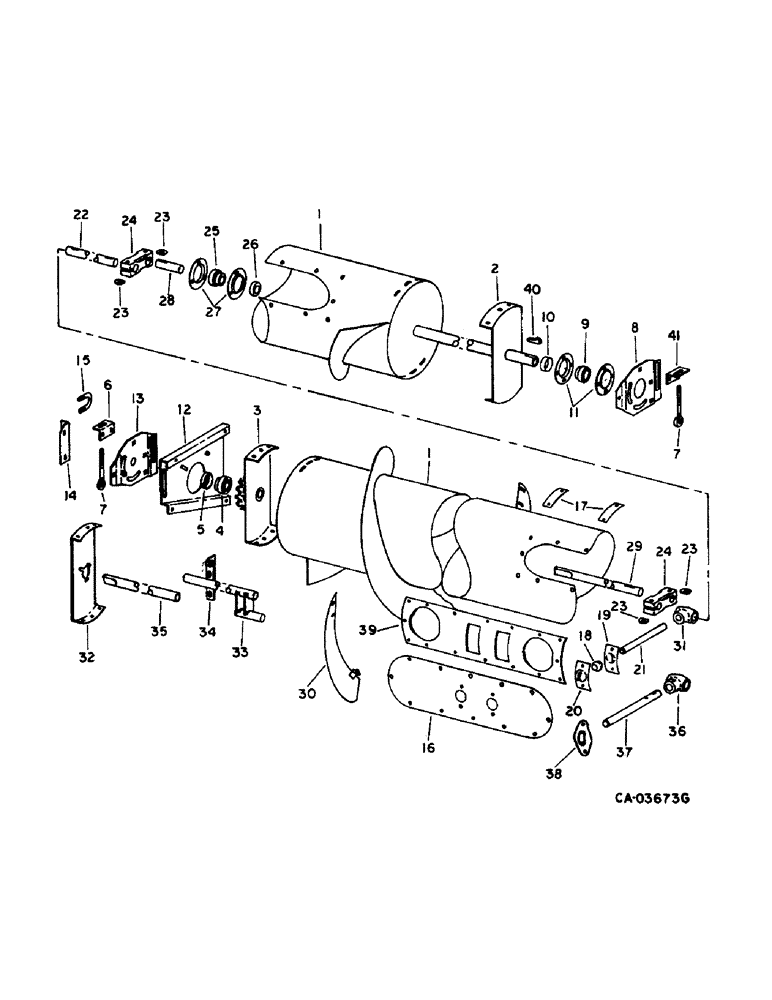

Запчасти Case IH 810 (C-39) - AUGER, HEADER AUGER, 20 IN., 508 MM AUGER (58) - ATTACHMENTS/HEADERS

1

176999C1

AUGER

ASSY, header, 10.0 ft, serial no. 43000 and below

1шт.

1

1313050C1

AUGER

ASSY, header, 10.0 ft, serial no. 43001 and above

1шт.

1

177000C1

AUGER

AUBER ASSY, header, 13.0 ft, serial no. 43000 and below

1шт.

1

1313049C1

AUGER

ASSY, header, 13.0 ft, serial no. 43001 and above

1шт.

1

177001C1

AUGER

ASSY, header, 15.0 ft, serial no. 43000 and above

1шт.

1

1313048C1

AUGER

ASSY, header, 15.0 ft, serial no. 43001 and above

1шт.

1

197175C1

AUGER

ASSY, header, 16.5 ft, serial no. 43000 and above

1шт.

1

1313432C1

AUGER

ASSY, header, 16.5 ft, serial no. 43001 and above

1шт.

1

177002C2

AUGER

ASSY, header, 17.5 ft, serial no. 43000 and below

1шт.

1

1313433C1

AUGER

ASSY, header, 17.5 ft, serial no. 43001 and above

1шт.

1

177003C2

AUGER

ASSY, header, 20.0 ft, grain, serial no. 43000 and below

1шт.

1

1313046C1

AUGER

ASSY, header, 20.0 ft, grain, serial no. 43001 and above

1шт.

1

1305909C1

AUGER

ASSY, header, 20.0 ft, rice, serial no. 43000 and below

1шт.

1

1313041C1

AUGER

ASSY, header, 20.0 ft, rice, serial no. 43001 and above

1шт.

1

197176C2

AUGER

ASSY, header, 22.5 ft, grain, serial no. 43000 and below

1шт.

1

1313044C1

AUGER

ASSY, header, 22.5 ft, grain, serial no. 43001 and above

1шт.

1

1305910C1

AUGER

ASSY, header, 22.5 ft, rice, serial no. 43000 and below

1шт.

1

1313042C1

AUGER

ASSY, header, 22.5 ft, rice, serial no. 43001 and above

1шт.

1

177004C2

AUGER

ASSY, header, 24.0 ft, serial no. 43000 and below

1шт.

1

1313045C1

AUGER

ASSY, header, 24.0 ft, serial no. 43001 and above

1шт.

2

181581C2

SHAFT ASSY.

SHAFT ASSY, auger drive LH

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

6шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

5шт.

366862C1

LOCK WASHER,3/8"

3/8"

6шт.

25534R1

WASHER

.406 x .812 x .065 PHC hdn

6шт.

3

177659C1

RETAINER

W/BRG AND SPROCKET, RH shaft, includes ref. nos. 4, serial no. 30000 and below

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

4

586609R92

BEARING ASSY,1.0005" ID x 52 mm OD x 1.21875"

ASSY, serial no. 30000 and below

1шт.

4

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, auger shaft, serial no. 30001 and above

1шт.

5

455102R21

COLLAR

W/SET SCREW, brg lkg

1шт.

6

177065C1

ANGLE

auger adjusting RH

1шт.

598802C1

BOLT

5/16 x 3/4 crg type 5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

7

177662C1

EYEBOLT,1/2" - 13 x 3 1/2"

BOLT, auger adj eye

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

.531 x 1.000 x .054 sq/h

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

6шт.

8

177081C1

BRACKET

auger brg LH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

9

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

BEARING, auger shaft

1шт.

10

455112R11

COLLAR

W/SET SCREW, brg lkg

1шт.

11

663562R1

FLANGE

bearing

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

12

177658C1

SUPPORT

auger RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

13

177082C1

BRACKET

auger brg RH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

14

177663C4

ANGLE

finger adjustment

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

15

726510R1

U-BOLT,3/8" - 16 x 1 3/4"

3/8 PHC round

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 PHC hdn

1шт.

16

150731C2

COVER

auger finger, serial no. 43000 and below

1шт.

16

1313091C1

COVER

auger finger, serial no. 43001 and above

1шт.

ref # 16 150731c2 has 2 finger holes, and p/n 1313091c1 has 3 finger holes. CH 7/13/98

1шт.

167345

BOLT (SPREADER),Cross Pan Hd, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 p/hdcr tap

12шт.

17

167823C1

COVER

auger finger hole

4шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 CAD p/t lock type 5

8шт.

1313021C1

SERRATED SCREW,Cross Rec Truss Hd, 1/4" - 20 x 3/4", Cl 8

1/4-20 x 3/4 t/hcr flange lock

8шт.

18

170720C1

BUSHING,13.13mm ID x 28.4mm OD

finger guide, for 1/2 in. dia., 12.7 mm dia. finger, 12 for 615, 715 and 815, 16 for 915

1шт.

19

150723C1

RETAINER

finger bushing inner, for 1/2 in. dia., 12.7 mm dia. finger, 12 for 615, 715 and 815, 16 for 915

1шт.

20

150726C1

RETAINER

finger bushing outer, for 1/2 in. dia. 12.7 mm dia. finger, 12 for 615, 715 and 815, 16 for 915

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

150728C1

SHAFT

FINGER, retractable, 1/2 in. dia., 12.7 mm dia., 12 for 615, 715 and 815, 16 for 915

1шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, quick attachable cot.

1шт.

22

159181C1

SHAFT

auger center, serial no. 30000 and below

1шт.

23

28459KA

WASHER

auger center shaft, serial no. 30000 and below

4шт.

24

158912C1

CLAMP

auger center shaft, serial no. 30000 and below

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

1шт.

25

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, auger shaft inner

2шт.

26

455102R21

COLLAR

W/SET SCREW, brg lkg

2шт.

27

937517R1

FLANGE

inner brg

6шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

9шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

9шт.

28

558353R1

SHAFT

auger stub, serial no. 30000 and below

1шт.

29

177075C2

SHAFT

auger adj, 10.0 ft

1шт.

29

177076C2

SHAFT

auger adj, 13.0 ft

1шт.

29

177077C2

SHAFT

auger adj, 15.0 ft

1шт.

29

197173C2

SHAFT

auger adj, 16.5 ft

1шт.

29

177078C2

SHAFT

auger adj, 17.5 ft

1шт.

29

177079C2

SHAFT

auger adj, 20.0 ft

1шт.

29

197174C2

SHAFT

auger adj, 22.5 ft

1шт.

29

177080C2

SHAFT

auger adj, 24.0 ft, serial no. 30000 and below

1шт.

30

(Not used in this application)

1шт.

31

HUB, finger, not serviced separately order package 180924C92

1шт.

32

184556C1

RETAINER

auger RH shaft, serial no. 30001 and above

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

6шт.

21333R1

NUT,3/8"-16, G8

BOLT, 3/8 type 8

6шт.

366862C1

LOCK WASHER,3/8"

3/8"

6шт.

25534R1

WASHER

.406 x .812 x .065 PHC hdn

6шт.

33

185638C1

SHAFT ASSY.

SHAFT ASSY, center, serial no. 30001 and above

1шт.

34

197879C1

ANGLE

auger center shaft clamp

1шт.

35

189961C1

SHAFT

auger adjust, RH, 10.0 ft

1шт.

35

189962C1

SHAFT

auger adjust, RH, 13.0 ft

1шт.

35

189963C1

SHAFT

auger adjust, RH, 15.0 ft

1шт.

35

189967C1

SHAFT

auger adjust, RH, 16.5 ft

1шт.

35

189964C1

SHAFT

auger adjust, RH, 17.5 ft

1шт.

35

189965C1

SHAFT

auger adjust, RH, 20.0 ft

1шт.

35

189968C1

SHAFT

auger adjust, RH, 22.5 ft

1шт.

35

189966C1

SHAFT

auger adjust, RH, 24.0 ft, serial no. 30001 and above

1шт.

36

187071C1

HUB

finger, for 5/8 in. dia., 15.7 mm dia. finger, for 10.0 thru 24.0 ft w/serial, no. 43000 and below

1шт.

36

1308425C1

HUB

finger, for 10.0 thru 24.0 ft w/serial no. 43001 and above

1шт.

37

187072C3

FINGER

retractable, 5/8 in. dia., 15.7 mm dia., for 10.0 thru 24.0 ft w/serial, no. 43000 and below

1шт.

37

1313061C2

PIN,15.87mm OD x 195mm L

retractable, finger, for 10.0 thru 24.0 ft w/serial no. 43001 and above

1шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, quick attachable cot.

16шт.

38

189649C1

GUIDE

finger, for 5/8 in. dia., 15.7 mm dia. finger, for 10.0 thru 24.0 ft w/serial, no. 43000 and below

1шт.

167257

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 p/hdcr tap

1шт.

38

1307259C2

GUIDE

finger, for 10.0 thru 24.0 ft w/serial no. 43001 and above

16шт.

127550

NUT,Tee, 1/4"-20

1/4-20 pln tee

32шт.

1313021C1

SERRATED SCREW,Cross Rec Truss Hd, 1/4" - 20 x 3/4", Cl 8

1/4-20 x 3/4 t/hcr flange lock

32шт.

39

179266C1

COVER

auger center inner, for 20, 22.5 and 24 ft w/serial, no. 43000 and below

1шт.

39

1313092C2

COVER

SUPPORT, auger center inner cover, for 20, 22.5 and 24 ft w/serial no. 43001 and above

1шт.

167345

BOLT (SPREADER),Cross Pan Hd, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 p/hdcr tap

4шт.

40

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib-hd sq tapered

1шт.

41

177065C1

ANGLE

auger adjusting LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

180924C92

FINGER

PACKAGE, 5/8 in. diameter auger finger, for season 1978 & prior service, consists of

1шт.

189649C1

GUIDE

finger

1шт.

187071C1

HUB

finger

1шт.

187072C3

FINGER

SHAFT, retractable, finger

1шт.
