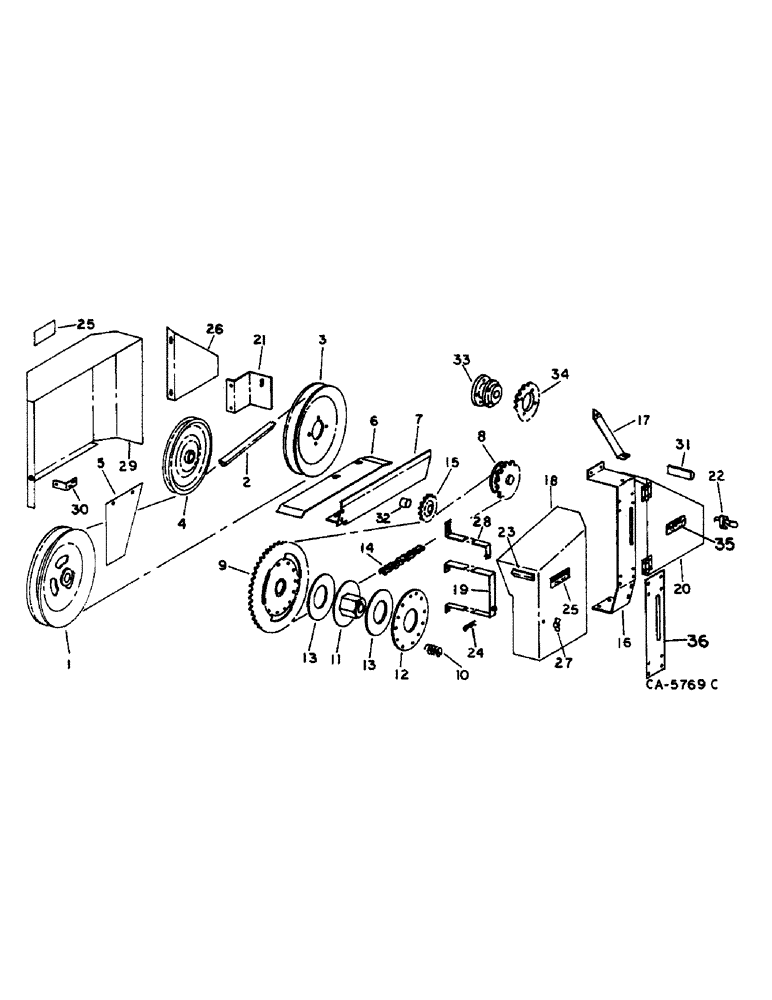

Запчасти Case IH 810 (C-36) - KNIFE, AUGER AND KNIFE DRIVE (58) - ATTACHMENTS/HEADERS

1

178032C1

PULLEY

driven, 10-1/2 in. OD, 266.7mm OD, use w/197610C1 shaft, serial no. 12000 and below, also for hart carter floating cutter bar w/serial no. 12000 and below

1шт.

1

197611C2

X

PULLEY, driven, 500 CPM, 10-1/2 in. OD, 266.7mm OD, use w/197610C1 shaft, serial no. 12001 thru 30000, also for hart carter floating cutter bar w/serial no. 12001 thru 26000

1шт.

1

189276C1

PULLEY

driven, 600 CPM, 10-1/2 in. OD, 266.7mm OD, use w/197610C1 shaft, for floating cutter bar w/serial no. 26001 thru 30000

1шт.

1

182074C1

PULLEY

driven, 500 CPM, 10-1/2 in. OD, 266.7mm OD, use w/1305084C1 shaft, serial no. 12001 and above, for floating cutter bar w/serial no. 26000 and below

1шт.

1

182029C1

PULLEY

driven, 600 CPM, 10-1/2 in. OD, 266.7mm OD, use w/1305084C1 shaft, for floating cutter bar w/serial no. 26001 and above, refer to 1300031C91 package

1шт.

218446

NUT,Jam, 1 1/8"-7, G5

1-1/8 pln jam type 5

1шт.

2

178019C1

BELT,0.879" W x 102.74" L

V-BELT , Knife drive, 500 CPM, OC, Not for 30.0 ft, Also for hart carter floating cutter bar w/S/N 26000 and below 0.879" W x 102.74" L

1шт.

2

1319245C1

V-BELT,22.33 mm W x 2748.69 mm L

Knife Drive, 600 CPM 22.33 mm W x 2748.69 mm L

1шт.

2

187415C2

V-BELT,0.879" W x 109.87" L

Knife drive, 500 CPM, OC, For 30.0 ft 0.879" W x 109.87" L

1шт.

2

552747R2

V-BELT

Knife drive, 600 CPM, 99.7 in. OC, 2532.4 mm OC

1шт.

3

184815C1

PULLEY ASSY.

PULLEY ASSY, drive, 10-1/2 in. OD, 266.7mm OD, replaces 939241R11

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

W/BEARING, idler, 8-3/4 in. OD, 222.3mm OD

1шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 crg type 1

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

21471R1

WASHER

.656 x 1.000 x .105 (or as required)

4шт.

668752R1

WASHER

.906 x 1.250 x .054

1шт.

5

(Not used in this application)

1шт.

6

(Not used in this application)

1шт.

7

197992C1

SHIELD

knife drive pulley, standard for rice, special for grain

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

8

177965C1

SPROCKET ASSY.

SPROCKET, auger drive, 18T, 191RPM, special for 20, 22.5 & 24.0 ft w/23.6 in., 600mm auger, not for 10 and 13 ft less cutting equipment and hydraulic windrow pickup drive

1шт.

8

197598C1

SPROCKET ASSY.

SPROCKET ASSY, auger & pickup double drive, 16 and 18T, for 10, 13 and 16.5 ft less cutting equipment and hydraulic windrow pickup drive

1шт.

8

197991C2

SPROCKET ASSY.

SPROCKET, auger drive, 14T, 160 RPM, standard for 20, 22.5 & 24.0 ft w/23.6 in., 600mm auger, slow speed for 20.0 and 22.5 ft rice header, slow speed for 10.0 thru 24.0 ft w/o rice header, not for windrow pickup

1шт.

8

1300482C91

SPROCKET ASSY.

SPROCKET ASSY, auger drive, 22T, fast speed 235 RPM, not used w/LH mechanical windrow pickup drive

1шт.

9

177966C2

SPROCKET ASSY.

SPROCKET W/BUSHING, auger driven, 47T

1шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 type 1

12шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

12шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

12шт.

20893R1

WASHER

.344 x 1.000 x .105

12шт.

10

568243R1

SPRING

clutch

12шт.

11

177962C1

HUB

auger clutch

1шт.

12

177963C1

PLATE

clutch

1шт.

13

177964C2

FACING

clutch

2шт.

14

CHAIN ASSY, auger drive, not for 20 and 30 ft w/23.6 in. 600mm auger, use 87 links from 10 ft rollmarked 611362R91, 1 connecting link 574532R91 and 1 offset link 612612R91

1шт.

14

CHAIN ASSY, auger drive, for 20 thru 30 ft w/23.6 in. 600mm auger, use 89 links from 10 ft roll marked 611362R91, 1 connecting link 574532R91 and 2 offset links 612612R91

1шт.

15

571441R91

SPROCKET ASSY.,15T

SPROCKET, idler, 15T

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 type 1

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

22191R1

WASHER

.531 x 1.750 x .064

1шт.

16

177968C3

SUPPORT

idler sprocket, 1 used for 10.0 thru 23.0 ft, 2 used for 30.0 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

177969C1

BRACE

auger idler support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

18

180562C92

SHIELD

ASSY, knive drive front, no for 30.0 ft

1шт.

18

1300720C92

SHIELD

ASSY, front drive, for 20, 22.5 & 24.0 ft w/23.6 in., 600mm auger

1шт.

18

1305696C2

GUARD

SHIELD ASSY, knife drive front, for 30.0 ft, includes ref. no. 25

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

19

197582C2

SUPPORT

ASSY, front shield, 500 CPM, for 10, 13 and 16.5 ft, for use on headers less cutting equipment only

1шт.

19

184817C1

SUPPORT ASSY.

SUPPORT ASSY, front shield, 600 CPM, for all except 10 ft

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

20

1319301C91

SHIELD

ASSY, LH rear drive, replaces 177972C1, for 10 thru 30 ft

1шт.

20

1319302C91

GUARD

SHIELD ASSY, auger drive RH rear, replaces 184907C1, for 30.0 ft

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

21

189224C3

SUPPORT

LH rear shield latch, not for 30.0 ft

1шт.

21

184935C1

SUPPORT

rear shield latch, for 30.0 ft

2шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

22

168481C1

LATCH ASSY.

LATCH ASSY, auger drive rear shield

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znp p/hds mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

23

174732C1

REFLECTOR

amber front, not for hart carter floating cutter bar

1шт.

24

(Not used in this application)

1шт.

25

1320694C1

DECAL

PRODUCT GRAPHIC, danger instruction, replaces 176977C1

1шт.

26

187248C1

GUARD ASSY.

SHIELD ASSY, knife drive LH rear

1шт.

26

184904C1

GUARD

SHIELD ASSY, auger drive RH, for 30.0 ft

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

27

488245R1

WING NUT

3/8 nylon insert wing

1шт.

28

1319159C1

SUPPORT

ASSY, front shield, for 20, 22.5 & 24 ft w/23.6, 600mm auger

1шт.

28

184890C1

SUPPORT

ASSY, LH front shield, for 30.0 ft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

29

1305695C2

PROTECTOR

SHIELD ASSY, auger drive RH front, for 30.0 ft, includes ref. no. 25

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

4шт.

30

181690C1

SUPPORT

ASSY, front shield RH, for 30.0 ft

1шт.

176978C1

THUMB SCREW,5/16" - 18 x 0.75"

5/16 thumb

1шт.

31

175311C1

REFLECTOR

red rear

1шт.

32

610399R1

SPACER,13.9mm ID x 21.34mm OD x 9.5mm L

1/2 x .875 x/strg pipe, for 30.0 ft.

1шт.

33

1308276C1

HUB

auger drive sprocket, 213 RPM

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

359783C1

LOCK NUT

3/8 CAD p/t lock type 8

4шт.

34

1308251C1

SPROCKET ASSY.

SPROCKET, auger drive, 20T, 213 RPM, for 20, 22.5 and 24 ft, not for rice

1шт.

35

179749C2

PRODUCT GRAPHIC

danger

1шт.

36

1319273C1

BAR

idler stiffener, for 20 thru 30 ft w/23.6 in. 600mm auger

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

22191R1

WASHER

.531 x 1.750 x .164

1шт.

1300031C91

CONVERSION PACKAGE

PACKAGE, to convert knife drive from 500 to 600 CPM, parts accessory, consists of

1шт.

552747R2

V-BELT

Drive

1шт.

197230C91

HEAD

W/BEARING, knife

1шт.

182029C1

PULLEY

knife driven, 10-1/2 in. OD

1шт.

184817C1

SUPPORT ASSY.

SUPPORT ASSY, front shield

1шт.

185873C2

SUPPORT

front mounting

1шт.

185872C2

BRACKET

SUPPORT, rear mounting, (NSS) manual, instruction

1шт.
