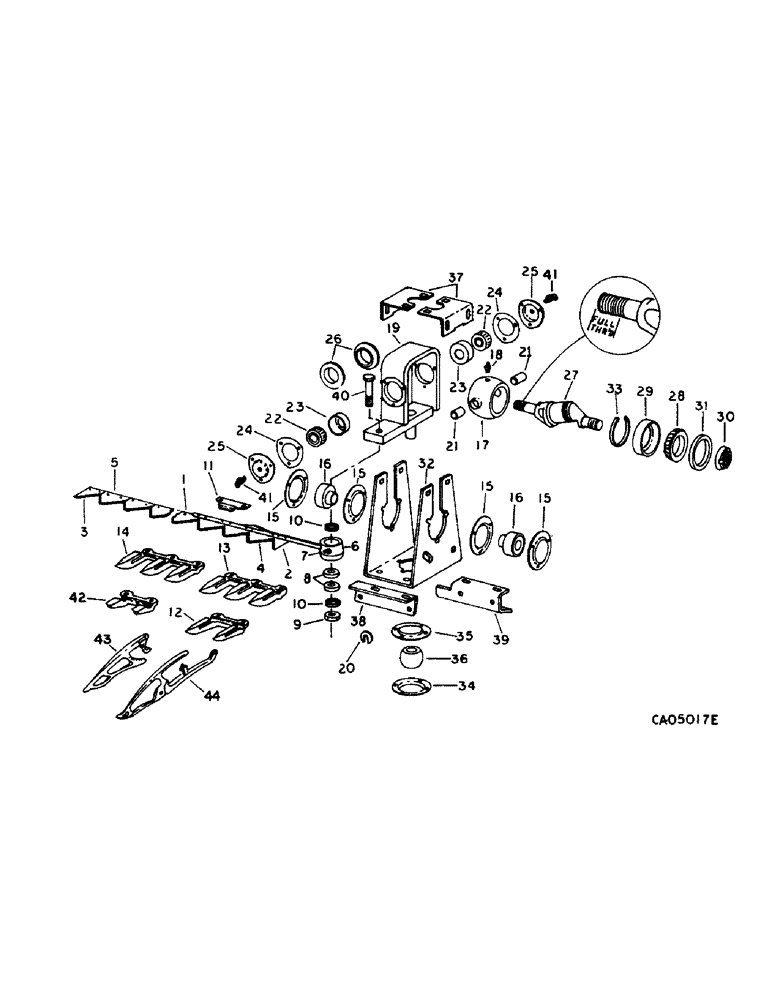

Запчасти Case IH 810 (C-33) - KNIFE, KNIFE, DRIVE AND GUARDS (58) - ATTACHMENTS/HEADERS

1

176692C93

BLADE

KNIFE ASSY, 10.0 ft., for 500 CPM, not for floating cutting bar

1шт.

1

176716C93

KNIFE ASSY

chrome, 10.0 ft, for 500 CPM, parts accessory

1шт.

1

176693C93

KNIFE ASSY

13.0 ft, for 500 CPM

1шт.

1

1308206C91

KNIFE ASSY

13.0 ft, for 600 CPM, not for floating cutting bar

1шт.

1

176717C93

KNIFE ASSY

chrome, 13.0 ft, for 500 CPM

1шт.

1

1308207C91

KNIFE

ASSY, chrome, 13.0 ft, for 600 CPM, parts accessory

1шт.

1

176694C93

KNIFE ASSY

15.0 ft, for 500 CPM

1шт.

1

1308208C91

BLADE

KNIFE ASSY, 15.0 ft, for 600 CPM, not for floating cutting bar

1шт.

1

176718C93

KNIFE ASSY

chrome, 15.0 ft, for 500 CPM

1шт.

1

1308209C91

KNIFE

ASSY, chrome, 15.0 ft, for 600 CPM, parts accessory

1шт.

1

197183C93

KNIFE ASSY

16.5 ft, for 500 CPM

1шт.

1

1308210C91

KNIFE ASSY

16.5 ft, for 600 CPM, not for floating cutting bar

1шт.

1

197185C93

BLADE

KNIFE ASSY, chrome, 16.5 ft, for 500 CPM

1шт.

1

1308211C91

KNIFE

ASSY, chrome, 16.5 ft, for 600 CPM, parts accessory

1шт.

1

176695C93

KNIFE ASSY

17.5 ft, for 500 CPM

1шт.

1

181952C93

KNIFE ASSY

17.5 ft, for 600 CPM, not for floating cutting bar

1шт.

1

176719C93

KNIFE ASSY

chrome, 17.5 ft, for 500 CPM

1шт.

1

181953C93

BLADE

KNIFE ASSY, chrome, 17.5 ft, for 600 CPM, parts accessory

1шт.

1

176696C93

KNIFE ASSY

20.0 ft, for 500 CPM

1шт.

1

1308212C91

KNIFE ASSY

20.0 ft, for 600 CPM, not for floating cutting bar

1шт.

1

176720C93

KNIFE ASSY

chrome, 20.0 ft, for 500 CPM

1шт.

176720c93 is the bolted knife. 10-13-99 cw.

1шт.

1

1308213C91

KNIFE

ASSY, chrome, 20.0 ft, for 600 CPM, parts accessory

1шт.

1

197184C93

KNIFE ASSY

22.5 ft, for 500 CPM

1шт.

1

1308214C91

KNIFE ASSY

KNIFE AASY, 22.5 ft, for 600 CPM, not for floating cutting bar

1шт.

1

197186C93

KNIFE ASSY

chrome, 22.5 ft, for 500 CPM

1шт.

1

1308215C91

KNIFE ASSY

chrome, 22.5 ft, for 600 CPM, parts accessory

1шт.

1

176697C93

KNIFE ASSY

24.0 ft, for 500 CPM

1шт.

1

1308216C91

KNIFE

ASSY, 24.0 ft, for 600 CPM, not for floating cutting bar

1шт.

1

176721C93

KNIFE ASSY

chrome, 24.0 ft, for 500 CPM

1шт.

1

1308217C91

KNIFE

ASSY, chrome, 24.0 ft, for 600 CPM, parts accessory

1шт.

1

187416C93

KNIFE ASSY

30.0 ft, not for floating cutter bar

1шт.

1

187418C93

KNIFE ASSY

chrome, 30.0 ft, parts accessory, includes ref. nos. 2 thru 6

1шт.

13968R1

RIVET,Csk, 1/4" x 7/8"

1/4 x 7/8 pln 74 d c/hd sol

1шт.

14755R1

RIVET,Oval Hd, .203" x 5/8"

no. 6 x 5/8 pln o/hd

1шт.

14763R1

RIVET,Oval Hd, .203" x 7/8"

no. 6 x 7/8 pln o/hd

1шт.

2

1319390C1

KNIFE SECTION

SECTION, half LH, plain serrated, replaces 634789R1 & 634790R1, not for floating cutting bar

1шт.

3

1319391C1

KNIFE SECTION

SECTION, half RH, plain serrated, replaces 634791R1 & 634792R1, not for floating cutting bar

1шт.

4

634787R2

KNIFE SECTION

SECTION, knife LH, plain serrated, not for floating cutting bar

3шт.

4

634788R2

KNIFE SECTION

SECTION, knife LH, chrome serrated, parts accessory

3шт.

5

634793R2

KNIFE SECTION

SECTION, knife, plain serrated, not for floating cutting bar

1шт.

5

634794R2

KNIFE SECTION

SECTION, knife, chrome serrated, parts accessory, 35 for 10.0 ft, 47 for 13.0 ft, 55 for 15.0 ft, 61 for 16.5 ft, 65 for 17.5 ft, 75 for 20.0 ft, 85 for 22.5 ft, 91 for 24.0 ft, 115 for 20.0 ft

1шт.

6

178466C91

HEAD ASSY.

HEAD W/BEARINGS ASSY, knife, 500 CPM, includes ref nos 7, 8 and 10, not for floating cutter bar

1шт.

6

197230C91

HEAD

W/BEARINGS ASSY, knife, 600 CPM, includes ref nos 7, 8 and 10, not for floating cutter bar

1шт.

7

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

1шт.

8

176699C91

BEARING ASSY,19.1mm ID x 41.3mm OD x 11.1mm W

knife head ball

2шт.

9

22244R1

LOCK NUT

3/4 zn nylon insert

1шт.

10

299470R1

SNAP RING,1.625", Int, #162

Ring, Snap, , knife head brg 1.625", Int, #162

2шт.

11

176722C1

CLIP

knife hold down, not for floating cutting bar, 9 for 10.0 ft, 12 for 13.0 ft, 14 for 15.0 ft, 15 for 16.5 ft, 16 for 17.5 ft, 19 for 20.0 ft, 21 for 22.5 ft, 23 for 24.0 ft, 29 for 30.0 ft

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

633098R1

GUARD

knife double, not for floating cutting bar, 1 for 15.0, 16.5, 22.5, 24.0 and 30.0 ft, 2 for 20.0 ft, 3 for 10.0, 13.0 and 17.5 ft

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

13

176724C1

GUARD

knife triple LH, not fot floating cutting bar, 2 for 10.0 ft, 3 for 13.0 thru 30.0 ft

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

633240R1

GUARD

knife triple, not for floating cutting bar, 9 for 10.0 ft, 12 for 13.0 ft, 16 for 15.0 ft, 18 for 16.5 and 17.5 ft, 22 for 20.0 ft, 26 for 22.5 ft, 28 for 24.0 ft, 36 for 30.0 ft

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

202909C1

BEARING HOUSING

FLANGE, shaft bearing, replaces 470746R1

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 sq-nk crg type 5

1шт.

1306680C1

FLANGE NUT

NUT, 3/8 pt flange

1шт.

16

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

shaft

2шт.

17

178020C1

HOUSING

bearing

1шт.

18

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

1шт.

19

187067C1

CLEVIS

YOKE W/STUD, drive, serial no. 26000 and below

1шт.

19

181865C2

SUPPORT ASSY.

YOKE W/STUD, drive, serial no. 26001 and above

1шт.

178024C2

PIN,28.57mm OD x 89mm L

STUD, bearing

1шт.

20

545484R1

WASHER

WASHER, shim

1шт.

21

178025C1

PIN,21.49mm OD x 36.58mm L

brg housing

2шт.

22

458952R91

ROLLER BEARING

W/CUP AND SEAL, roller, serial no. 19000 and below

2шт.

22

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, serial no. 19001 and above

2шт.

23

371883R1

BEARING CUP

2шт.

24

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

bearing retainer .002

1шт.

24

458956R1

SHIM

bearing retainer .005

1шт.

24

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

bearing retainer .010

1шт.

25

1316859C1

CAP

RETAINER, brg, replaces 458958R1

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 ptf short 90D lub

1шт.

26

178026C1

RING

bearing seal, serial no. 19000 and below

2шт.

26

197895C1

SEAL

SEAL, bearing, serial no. 19001 and above

2шт.

27

1305084C1

SHAFT

wobble, 2.05 in. full thread, replaces 184757C1

1шт.

28

G15215

ROLLER BEARING

BEARING ASSY, cone

2шт.

29

619387R1

BEARING CUP

BEARING, cup

2шт.

30

178028C1

LOCK NUT

lock

1шт.

Ref#30 - the spanner wrench for the 178028C1 is listed in 1600 Service Manual ection 9115 as a 16-569.

1шт.

31

178029C91

OIL SEAL,54.89mm ID x 77.88mm OD x 9.5mm Thk

SEAL, oil

2шт.

32

1307386C2

SUPPORT

drive, replaces 178030C2 by also ordering, (1) flange 1307388C1 and (1) flange 1307387C1

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 hex-hd type 8

1шт.

9412231

NUT

5/8 PHC p/t lock type 8

1шт.

390309C1

WASHER

.656 x 1.312 x .095 hdn

1шт.

33

627095C1

SPACER

snap ring cup

1шт.

34

167878C11

FLANGE

W/FITTING, brg, 3 bolt, use w/drive support 178030C2

1шт.

34

1307388C1

FLANGE

W/FITTING, brg, 4 bolt, use w/drive support 1307386C2

1шт.

35

202909C1

BEARING HOUSING

FLANGE, bearing, 3 bolt, replaces 470746C1, use w/drive support 178930C2

1шт.

35

1307387C1

FLANGED BEARING

bearing, 4 bolt, use w/drive support 1307386C2

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC p/t lock type 8

1шт.

25534R1

WASHER

.406 x .812 x .065 PHC hdn

1шт.

36

178031C91

BEARING ASSY,1.125" ID x 1.438"

BEARING ASSY, knife drive pivot, serial no. 26000 and below

1шт.

36

1316463C91

SPHERICAL BEARING,Needle, 28.56mm ID x 62.04mm OD x 36.52mm W

ASSY, knife drive pivot, replaces 181866C91, serial no. 26001 and above

1шт.

37

178033C1

SHIELD

drive

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

6шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

6шт.

38

178034C1

BRACKET

ANGLE, front mounting, 500 CPM

1шт.

38

185873C2

SUPPORT

front mounting, 600 CPM

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

2шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

2шт.

25536R1

WASHER

.531 x 1.062 x .095 PHC hdn, (or as required)

6шт.

39

178035C1

CONDUIT

SUPPORT, rear mounting, 500 CPM

1шт.

39

185872C2

BRACKET

SUPPORT, rear mounting, 600 CPM

1шт.

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

5/8 x 1-1/4 type 8

2шт.

9412231

NUT

5/8 PHC p/t lock type 8

2шт.

40

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

knife head

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga hard

1шт.

334273C1

SPECIAL WASHER,19.84mm ID x 31.75mm OD x 1.52mm Thk

25/32 x 1-1/4 x 16 ga

1шт.

41

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 ptf short 90D lub

2шт.

42

176723C1

GUARD

knife double, for downed crops, parts accessory

6шт.

43

163417C91

GRAIN LIFTER

LIFTER, grain, heavy duty, parts accessory

1шт.

44

608787R91

GRAIN LIFTER

LIFTER, grain, parts accessory

1шт.

1330048C91

WOBBLE BOX

800 SERIES WOBBLE BOX

1шт.

1330048C91R

REMAN-WOBBLE BOX

Remanufactured, Wobble Box, N.A. Only

1шт.

1330048C91C

CORE-WOBBLE BOX

Return Number, Wobble Box, N.A. Only

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING

1шт.

1307388C1

FLANGE

W/FITTING

1шт.

1307387C1

FLANGED BEARING

1шт.

178020C1

HOUSING

1шт.

178025C1

PIN,21.49mm OD x 36.58mm L

2шт.

178029C91

OIL SEAL,54.89mm ID x 77.88mm OD x 9.5mm Thk

SEAL

2шт.

1307386C2

SUPPORT

DRIVE SUPPORT

1шт.

178033C1

SHIELD

2шт.

181865C2

SUPPORT ASSY.

SUPPORT W/STUD

1шт.

1316463C91

SPHERICAL BEARING,Needle, 28.56mm ID x 62.04mm OD x 36.52mm W

ASSY

1шт.

197895C1

SEAL

BEARING SEAL

2шт.

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

371883R1

BEARING CUP

1шт.

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

2шт.

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

.002

2шт.

458956R1

SHIM

.005

2шт.

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

.010

3шт.

1316859C1

CAP

RETAINER

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING

2шт.

202909C1

BEARING HOUSING

FLANGE

4шт.

1306680C1

FLANGE NUT

NUT, 3/8 p/t flange

1шт.

G15215

ROLLER BEARING

BEARING CONE

2шт.

619387R1

BEARING CUP

2шт.

627095C1

SPACER

1шт.

1305084C1

SHAFT

WOBBLE SHAFT

1шт.

178028C1

LOCK NUT

LOCK NUT, (NSS) product graphic, (NSS) product graphic, (NSS) product graphic, (NSS) product graphic (2), and all attaching hardware

1шт.
