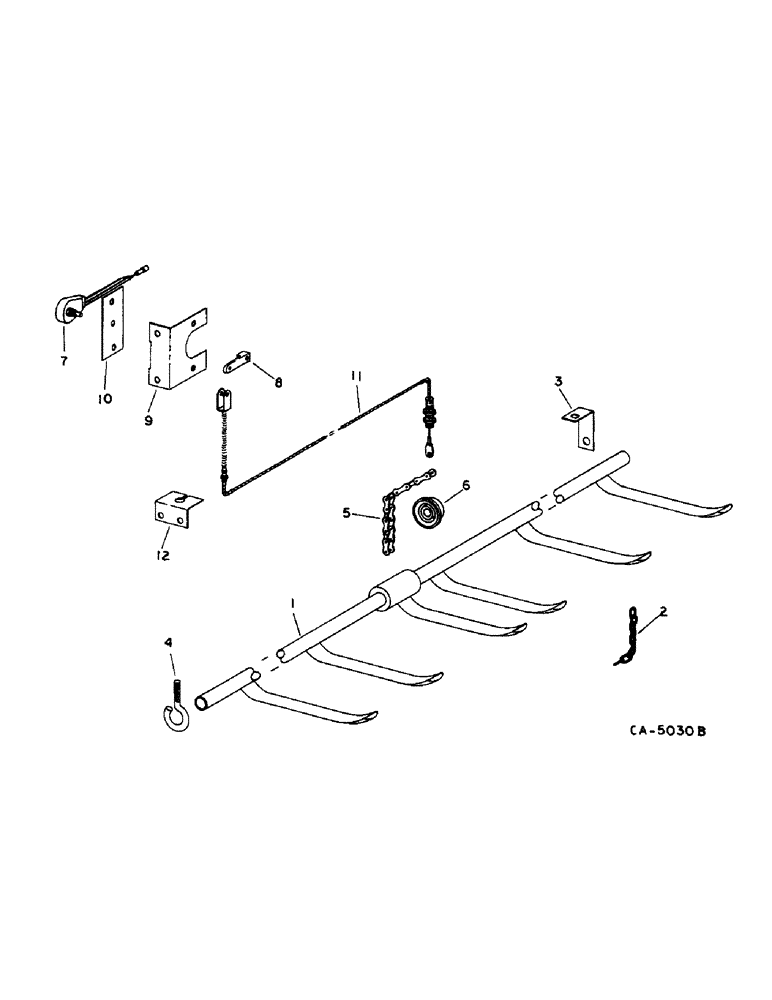

Запчасти Case IH 810 (C-32) - GRAIN HEADER, AUTOMATIC HEADER CONTROL, HEADER PARTS (58) - ATTACHMENTS/HEADERS

1

178823C1

BAR ASSY.

BAR ASSY, finger, for 10, 13 and 15 ft

1шт.

1

178825C1

BAR ASSY.

BAR ASSY, finger, for 16.5, 17.5 and 20 ft

1шт.

2

167570C1

CHAIN,203.2mm L

finger stop

2шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 type 1

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

4шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

2шт.

21870R1

WASHER

.266 x .750 x .054

2шт.

3

179435C1

ANGLE

chain anchor

2шт.

4

159780C1

EYEBOLT,3/8" - 16 x 2.20", Full Thd

finger bar, 6 for 10.0 ft, 8 for 13 ft, 10 for 15.0, 16.5 and 17.5 ft, 12 for 20.0 ft

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

5

174266C1

CHAIN (AG)

CHAIN, finger pivot

1шт.

6

482635R2

ROLLER

finger pivot

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

607895R1

WASHER

.531 x 1.000 x .105

1шт.

22042R1

WASHER

.531 x 2.000 x .105

1шт.

7

1301147C91

POTENTIOMETER

Sensing, for Combines with Electro-Hydraulic

1шт.

68107H

LOCK NUT

3/8 lock

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

477242R1

WASHER

.406 x 1.000 x .027

1шт.

8

183597C1

ARM

potentiometer, for combines w/electro hydraulic

1шт.

193222

SET SCREW,Hex Soc, #8-32 x 1/4"

SCREW, no. 8 x 1/4 c/pt znp hdl/s set

1шт.

9

1301282C1

SUPPORT

potentiometer, for combines w/electro hydraulic

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

10

1301279C1

STRIP

potentiometer, for combines w/electro hydraulic

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

11

1301318C1

CABLE

control, 52 in., for combines w/electro hydraulic

1шт.

11

1314088C1

CABLE

control, 56 in., for 20 ft, w/23.6 in., 600mm auger, for combines w/electro hydraulic

1шт.

148151

COTTER PIN,Hairpin, 716"

CLIP, control cable

1шт.

379187C1

CLIP

spring

1шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

20286R1

SPLIT PIN/SAFETY PIN

PIN, 3/16 x 1.031 clevis

1шт.

12

1301345C1

ANGLE

cable anchor, for combines w/electro hydraulic

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex/hd flg lock

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.
