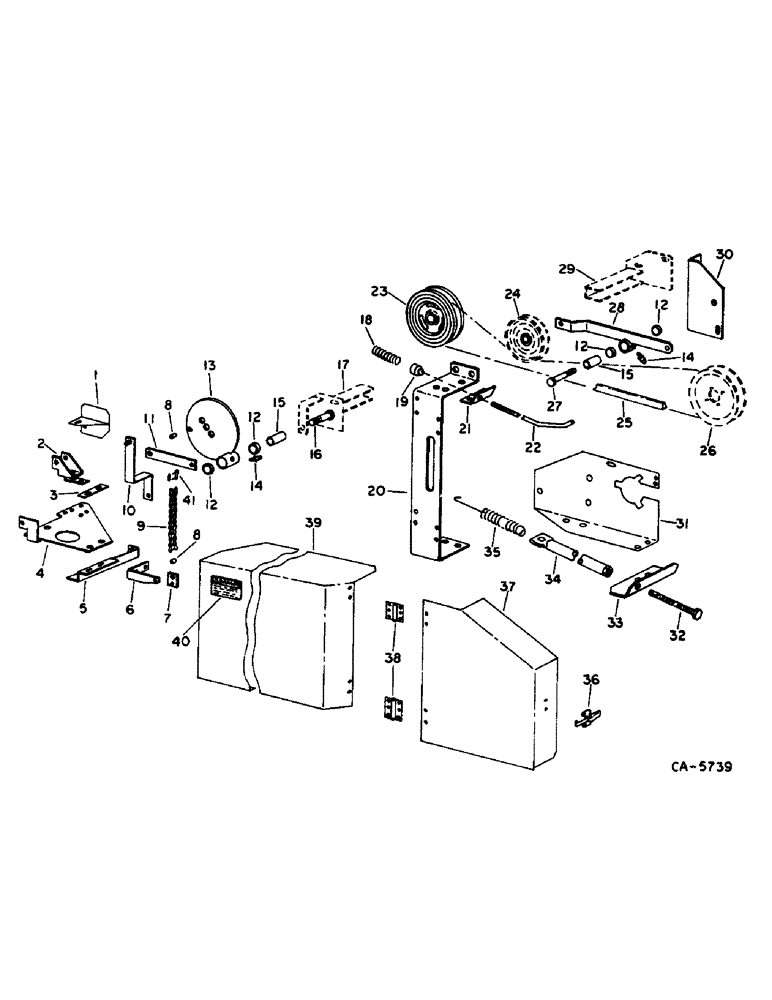

Запчасти Case IH 810 (C-30) - GRAIN HEADER, HART CARTER FLOATING CUTTER BAR, COUNTER BALANCE DRIVE & SHIELD (58) - ATTACHMENTS/HEADERS

1

180852C1

GUARD

SHIELD, knife box nip

1шт.

2

180871C1

CLEVIS

YOKE ASSY, divider pivot LH

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 type 1

1шт.

16874R1

BOLT,Short NK, 7/16"-14 x 2 3/4", G2

7/16 x 2-3/4 crg type 1

1шт.

9413947

NUT,7/16"-14, GA

7/16 CAD p/t lock type 1

1шт.

3

180875C1

SHIM

knife box

2шт.

4

180873C1

BRACKET

drive support

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 type 1

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2 type 5

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

9413947

NUT,7/16"-14, GA

7/16 CAD p/t lock type 1

1шт.

9413969

NUT,5/8"-11, GB

5/8 CAD p/t lock type 5

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

5

180872C1

BRACKET

drive brace

1шт.

6

180876C1

BRACKET

counter balance

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

180906C1

PIVOT

chain

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

8

180883C1

BUSHING

pivot

2шт.

9

CHAIN, roller, use 9 links from 10 ft roll marked 1790D

1шт.

10

180905C1

SUPPORT

side sheet

1шт.

11

180904C1

PIVOT

spring

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

12

180897C1

BUSHING

cam and idler

4шт.

13

180902C91

CAM

ASSY, counterbalance, includes ref. nos. 12 and 14

1шт.

14

87414

LUBE NIPPLE,1/4" - 28

FITTRING, 1/4-28 str self-tap

2шт.

15

180898C1

BUSHING

spacer

2шт.

16

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 type 1

1шт.

9413948

NUT,5/8"-11, GA

5/8 CAD p/t lock type 1

1шт.

17

BRACKET, counterbalance support LH, refer to this group under header for 13 thru 24 ft

1шт.

18

174519C1

SPRING

compression

1шт.

19

180842C1

RETAINER

spring rod

1шт.

20

180894C1

SUPPORT

idler

1шт.

21

180893C1

BRACKET

spring support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

180840C1

ROD

idler adjustment

1шт.

23

182029C1

PULLEY

knife driven, 10.50 in. OD, 266.7 mm OD

1шт.

24

PULLEY W/BEARING, idler, refer to group 4 this section under auger and knife drive

1шт.

25

184796C1

BELT,0.897" W x 113.39" L

V-BELT , Knife drive, OC 0.897" W x 113.39" L

1шт.

26

PULLEY, drive, refer to group 4 this section under auger and knife drive

1шт.

27

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2.50 type 1

1шт.

9413969

NUT,5/8"-11, GB

5/8 CAD p/t lock type 5

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

28

180896C91

ARM W/BUSHINGS, idler, includes ref. nos. 12 and 14

1шт.

29

BRACKET, support RH, refer to this group under header for 13 thru 24 ft

1шт.

30

180899C1

SUPPORT

idler

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8 x 2-1/2 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8 CAD p/t lock type 5

1шт.

31

180900C1

SUPPORT

bearing

1шт.

32

180819C1

BOLT

spring adjusting

1шт.

33

180901C1

BRACKET, spring adjusting

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

34

180820C1

ROD

spring adjusting

1шт.

35

180829C1

SPRING

tension

1шт.

36

168481C1

LATCH ASSY.

LATCH ASSY, rear shield

1шт.

37

180823C91

GUARD

SHIELD ASSY, rear, includes ref. nos. 36 and 38

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

551130C1

RIVET

1/8 pop

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, no. 10 x 1/2 r/hds mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

38

180895C1

HINGE

front and rear shield

4шт.

39

180909C91

GUARD

SHIELD ASSY, front, includes ref. nos. 38 and 40

1шт.

551130C1

RIVET

RIBET, 1/8 pop

1шт.

40

1320694C1

DECAL

PRODUCT GRAPHIC, danger instruction, replaces 176977C1

1шт.

41

1301D

CHAIN LINK

LINK, connector

2шт.
