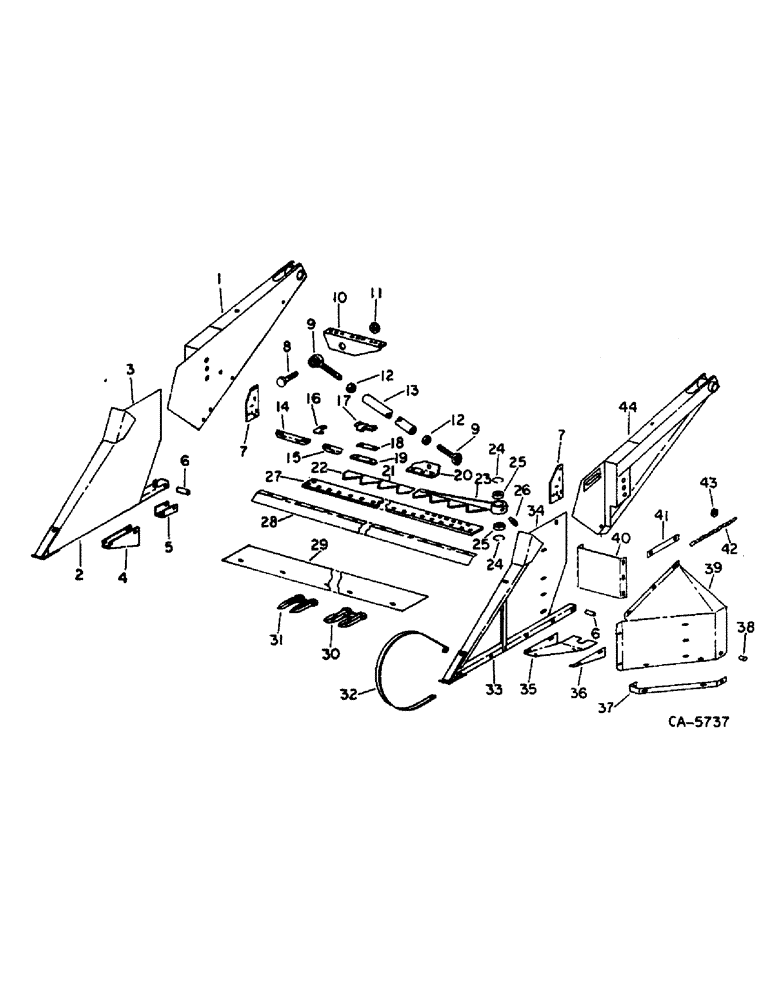

Запчасти Case IH 810 (C-27) - GRAIN HEADER, HART CARTER FLOATING CUTTER BAR, CUTTING PARTS FOR HEADERS W/S/N 26001 & AFT (58) - ATTACHMENTS/HEADERS

1

180817C1

PANEL

SHEET, header end RH

1шт.

2

179954C92

DIVIDER

ASSY, cutter bar RH, includes ref. nos. 3, 4 and 6

1шт.

3

179956C1

PANEL

SHEET ASSY, divider RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 crg type 1

1шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16 x 2-1/4 crg type 1

1шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

3/8 x 2-1/2 PHC type 8

1шт.

120376

NUT,5/16"-18, G5

1шт.

274993

SHIELD

3/8 CAD p/t lock type 1

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

179136

SET SCREW,Sq Hd, 1/2"-13 x 2 1/2"

SCREW, 1/2 x 2-1/2 znp co/pt sq/hd set

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

4

180496C1

GUARD

SHIELD, knife guard RH

1шт.

5

180485C2

SUPPORT

CHANNEL, divider pivot RH

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 crg type 1

1шт.

9413947

NUT,7/16"-14, GA

7/16 CAD p/t lock type 1

1шт.

6

179958C1

TUBE

divider pivot

2шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

3/8 x 2-1/2 PHC type 8

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

7

180821C1

BAR

end sheet support

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

18174R1

BOLT,Hex, 3/4"-10 x 2 1/2", G2

3/4 x 2-1/2 hex-hd type 1

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga hard

1шт.

9

180868C91

BEARING ASSY

ASSY, rod end

2шт.

10

180843C1

BRACKET

stabilizer upper

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/8 p/t lock type 5

2шт.

12

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-NF jam type 5

2шт.

13

180866C1

TUBE,1" OD

stabilizer adjusting

1шт.

14

179772C1

BRACKET

feather bar, 11 for 13.0 ft, 13 for 15.0 ft, 16 for 16.5 17 for 17.5 ft, 18 for 20.0 ft, 22 for 22.5 ft

1шт.

15

179773C1

BRACKET

feather bar, 2 for 13, 15 and 20 ft

1шт.

16

179798C1

STRAP

bar feather, 15 for 13.0 ft, 18 for 15.0 ft, 19 for 16.5 ft, 20 for 17.5 ft, 24 for 20.0 ft, 26 for 22.5 ft

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 crg type 1

1шт.

273924

SNAP RING

NUT, 1/4 CAD p/t lock type 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

17

179757C1

CLIP

knife, 13 for 13.0 ft, 15 for 15.0 ft, 16 for 16.5 ft, 17 for 17.5 ft, 20 for 20.0 ft, 22 for 22.5 ft

1шт.

18

179770C1

SHIM

knife clip, 20 ga

1шт.

18

179771C1

BLOCK

SHIM, knife clip, 28 ga, 13 for 13.0 ft, 15 for 15.0 ft, 16 for 16.5 ft, 17 for 17.5 ft, 20 for 20.0 ft, 22 for 22.5 ft

1шт.

19

179759C1

PLATE

knife clip wear, 13 for 13.0 ft, 15 for 15.0 ft, 16 for 16.5 ft, 17 for 17.5 ft, 20 for 20.0 ft, 22 for 22.4 ft

1шт.

20

180867C1

BRACKET

stabilizer lower

1шт.

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

7/16-NF x 1-1/4 type 5

1шт.

274841

BEARING CONE,2.9528" ID x 0.9843"

NUT, 7/16-NF CAD p/t lock type 5

1шт.

21

.180853C91

KNIFE ASSY, cutter bar, for 13.0 ft

1шт.

21

180854C91

KNIFE ASSY

cutter bar, for 15.0 ft

1шт.

21

180855C91

KNIFE ASSY

cutter bar, for 16.5 ft

1шт.

21

180856C91

KNIFE ASSY

cutter bar, for 17.5 ft

1шт.

21

180857C91

KNIFE

ASSY, cutter bar, for 20.0 ft

1шт.

21

180858C91

KNIFE

ASSY, cutter bar, for 22.4 ft, includes ref. nos. 22 and 23

1шт.

22

179736C2

KNIFE SECTION

SECTION, knife, 52 for 13.0 ft, 60 for 15.0 ft, 66 for 16.5 ft, 70 for 17.5 ft, 80 for 20.0 ft, 90 for 22.5 ft

1шт.

185956C1

RIVET

no. 5-1/2 x 5/8 pln 60 deg c/40 solid

1шт.

185957C1

RIVET

no. 5-1/2 x 7/8 pln 60 deg c/hd solid

1шт.

23

180859C91

KNIFE HEAD

HEAD W/BEARINGS, knife, includes ref. nos. 24, 25 and 26

1шт.

25358R1

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 8

3/4 x 3-3/4 PHC type 8

1шт.

359793C1

NUT,3/4"-10, GC

3/4 CAD p/t lock type 8

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga hard

1шт.

334273C1

SPECIAL WASHER,19.84mm ID x 31.75mm OD x 1.52mm Thk

25/32 x 1-1/4 x 16 ga, hard

1шт.

24

299470R1

SNAP RING,1.625", Int, #162

Ring, Snap, , brg 1.625", Int, #162

2шт.

25

176699C91

BEARING ASSY,19.1mm ID x 41.3mm OD x 11.1mm W

knife head ball

2шт.

26

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

1шт.

27

180860C1

KNIFE

BACK, cutter bar, for 13.0 ft

1шт.

27

180861C1

KNIFE

BACK, cutter bar, for 15.0 ft

1шт.

27

180862C1

LARGE PLATE

BACK, cutter bar, for 16.5 ft

1шт.

27

180863C1

KNIFE

BACK, cutter bar, for 17.5 ft

1шт.

27

180864C1

KNIFE

BACK, cutter bar, for 20.0 ft

1шт.

27

180865C1

KNIFE

BACK, cutter bar, for 22.5 ft

1шт.

28

179947C1

GUARD

SHIELD, cutter bar, 64 in., 1625.6 mm, for 13.0 ft

1шт.

28

179948C1

GUARD

SHIELD, cutter bar, 88 in., 2235.2 mm, for 15.0 ft

1шт.

28

179949C1

GUARD

SHIELD, cutter bar, 40 in., 1016.0 mm, for 17.5 ft

1шт.

28

179950C1

GUARD

SHIELD, cutter bar, 52 in., 1320.8 mm, for 20.0 ft

1шт.

28

179951C1

GUARD

SHIELD, cutter bar,76 in., 1930.4 mm, 1 for 17.5 and 22.5 ft

1шт.

28

179952C1

GUARD

SHIELD, cutter bar, 100 in., 2540.0 mm, 1 for 13, 15 and 17.5 ft, 2 for 16.5, 20 and 22.5 ft

1шт.

29

180877C1

BAR

feather shield, 48 in., 1219.2 mm, for 13.0 ft

1шт.

29

180879C1

BAR

feather shield, 24 in., 609.6 mm, for 15.0 ft

1шт.

29

180880C1

BAR

feather shield, 42 in., 1066.8 mm, for 16.5 ft

1шт.

29

180881C1

BAR

feather shield, 36 in., 914.4 mm, for 20.0 ft

1шт.

29

180882C1

BAR

feather shield, 66 in., 1676.4 mm for 22.5 ft

1шт.

29

179934C1

BAR

feather shield, 50 inl., 1270.0 mm, 1 for 13.0 ft, 2 for 16, 16.5, 17.5 and 20 ft, 3 for 22.5 ft

1шт.

29

180878C1

BAR

feather shield, 54 in., 1371.6 mm, 1 for 13, 16, 16.5, 20 and 22.5 ft, 2 for 17.5 ft

1шт.

30

179776C1

FINGER

GUARD W/SHORT CLIPS, knife LH

1шт.

31

179775C1

FINGER

GUARD W/LONG CLIPS, 25 for 13.0 ft, 29 for 15.0 ft, 32 for 16.5 ft, 34 for 17.5 ft, 39 for 20.0 ft, 44 for 22.5 ft

1шт.

931192R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 pln plow type 5

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16 plow type 5

1шт.

27718R1

CARRIAGE BOLT,#3, 7/16" - 14 x 2", Gr 5

BOLT, 7/16 x 2 plow type 5

1шт.

9413947

NUT,7/16"-14, GA

7/16 CAD p/t lock type 1

1шт.

32

180526C91

KIT

loop divider

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 crg type 1

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 CAD p/t lock type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

180816C91

DIVIDER

ASSY, cutter bar LH, includes ref. nos. 6, 34, thru 43

1шт.

34

180889C1

GUARD

SHIELD DIVIDER LH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

35

180890C1

SUPPORT

divider

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

36

180886C1

SUPPORT

side

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

37

180887C1

SUPPORT

BRACE, deflector

1шт.

598807R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

BOLT, 5/16 x 2 crg type 5

1шт.

27443R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

BOLT, 5/16 x 2-1/4 crg type 5

1шт.

27444R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

BOLT, 5/16 x 2-1/2 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

38

180883C1

BUSHING

pivot

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

39

180892C1

GUARD

SHIELD, divider

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4 x 1/2 crg type 5

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

40

180884C1

GUSSET

divider shield

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4 x 1/2 crg type 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

41

180885C1

SUPPORT

BRACE, divider

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

42

CHAIN, divider, use 10 links from bulk stock marked zan 4030136

1шт.

43

62036R1

SPACER

divider chain

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .406 x .812 x .051

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

44

180818C1

PANEL

SHEET, header end LH

1шт.
