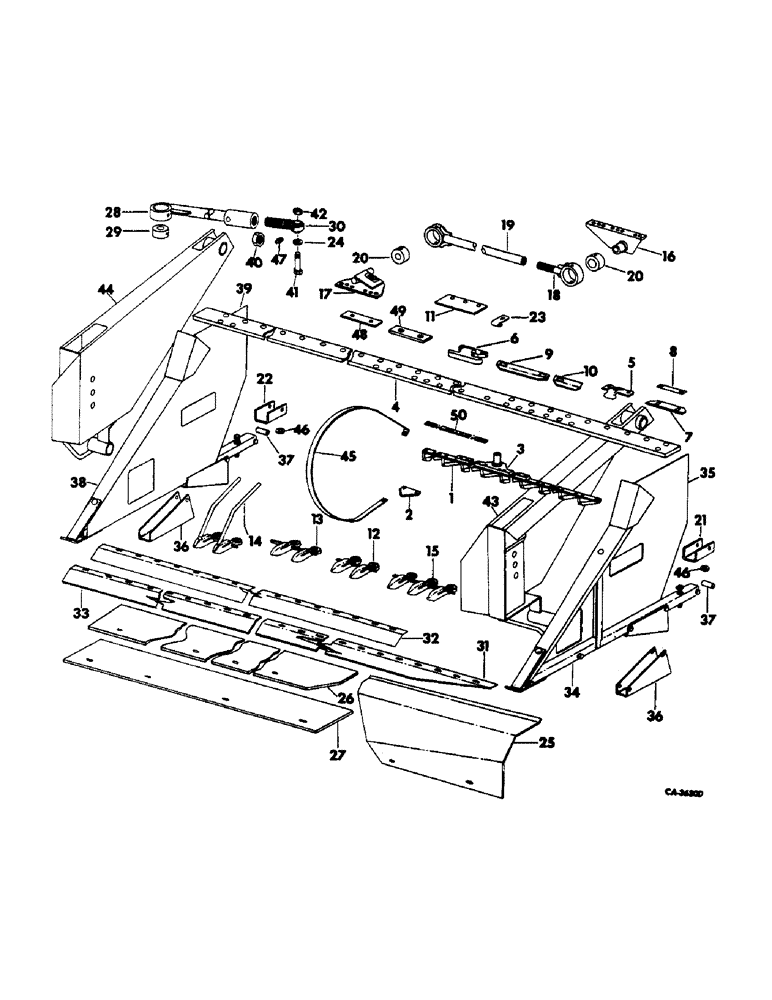

Запчасти Case IH 810 (C-24) - GRAIN HEADER, HART CARTER FLOATING CUTTER BAR, CUTTING PARTS (58) - ATTACHMENTS/HEADERS

1

180467C91

KNIFE ASSY

cutter bar, for 13 ft, includes ref. nos. 2 and 50

1шт.

1

180468C91

KNIFE ASSY

cutter bar, for 15 ft, includes ref. nos. 2 and 50

1шт.

1

180469C91

KNIFE ASSY

cutter bar, for 16.5 ft, includes ref. nos. 2 and 50

1шт.

1

180470C91

KNIFE ASSY

cutter bar, for 17.5 ft, includes ref. nos. 2 and 50

1шт.

1

180471C91

KNIFE ASSY

cutter bar, for 20 ft, includes ref. nos. 2 and 50

1шт.

1

180472C91

BLADE

KNIFE ASSY, cutter bar, for 22.5 ft, includes ref. nos. 2 and 50

1шт.

13840R1

RIVET

no. 5-1/2 x 11/16 rd-hd

1шт.

2

179736C2

KNIFE SECTION

SECTION, knife, 51 for 13 ft, 59 for 15 ft, 65 for 16.5 ft, 69 for 17.5 ft, 79 for 20 ft, 89 for 22.5 ft

1шт.

185956C1

RIVET

no. 5-1/2 x .62 csk-hd

1шт.

180998C1

RIVET

no. 5-1/2 x 1.0 csk-hd

1шт.

3

180473C2

HEAD

ASSY, knife, bolt, type head, 1/4 in. thick

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21883R1

WASHER

.53 x 1.75 x .10

1шт.

3

180716C1

HEAD ASSY.

HEAD ASSY, knife, bolt type head, 3/8 in. thick

1шт.

180717C1

FLANGE BOLT,Lock, Hex, 5/16" - 18 x 0.62"

SCREW, 5/16 x 5/8 flange lock

1шт.

4

180474C1

KNIFE

BACK, cutter bar, for 13 ft

1шт.

4

180475C1

KNIFE

BACK, cutter bar, for 15 ft

1шт.

4

180476C1

KNIFE

BACK, cutter bar, for 16.5 ft

1шт.

4

180477C1

KNIFE

BACK, cutter bar, for 17.5 ft

1шт.

4

180478C1

KNIFE

BACK, cutter bar, for 20 ft

1шт.

4

180479C1

KNIFE

BACK, cutter bar, for 22.5 ft

1шт.

5

179757C1

CLIP

knife, regular, 10 for 13 ft, 12 for 15 ft, 13 for 16.5 ft, 14 for 17.5 ft, 17 for 20 ft, 19 for 22.5 ft

1шт.

6

180481C1

CLIP

knife, medium clearance

2шт.

6

180480C1

CLIP

knife, high clearance

2шт.

7

179759C1

PLATE

knive clip wear, 14 for 13 ft, 16 for 15 ft, 17 for 16.5 ft, 18 for 17.5 ft, 21 for 20 ft, 23 for 22.5 ft

1шт.

8

179770C1

SHIM

knife clip, 20 ga

1шт.

8

179771C1

BLOCK

SHIM, knife clip, 28 ga, 14 for 13 ft, 16 for 15 ft, 17 for 16.5 ft, 18 for 17.5 ft, 21 for 20 ft, 23 for 22.5 ft

1шт.

9

179772C1

BRACKET

feather bar, double, 10 for 13 ft, 12 for 15 ft, 14 for 16.6 ft, 15 for 17.5 ft, 17 for 20 ft, 20 for 22.5 ft

1шт.

931192R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 no. 3 plow type 5

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

10

179773C1

BRACKET

feather bar, single, 2 for 13, 15 and 20 ft, 1 for 16.5, 17.5 and 22.5 ft

1шт.

931192R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 no. 3 plow type 5

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

11

(Not used in this application)

1шт.

12

179775C1

FINGER

GUARD, knife double, 20 for 13 ft, 24 for 15 ft, 27 for 16.5 ft, 29 for 17.5 ft, 34 for 20 ft, 39 for 22.5 ft

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16 no. 3 plow type 5

1шт.

9413947

NUT,7/16"-14, GA

7/16 x hex. lock

1шт.

13

179776C1

FINGER

GUARD W/SHORT CLIPS, knife

2шт.

930717R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 5

BOLT, 7/16 x 1-3/4 no. 3 plow type 5

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

14

179777C1

GUARD

W/LIFTER RODS, knife

1шт.

930717R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 5

BOLT, 7/16 x 1-3/4 no. 3 plow type 5

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

15

179778C1

FINGER

GUARD, knife triple

2шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16 no. 3 plow type 5

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

16

179779C2

BRACKET

ANGLE ASSY, stabilizer anchor

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21883R1

WASHER

.53 x 1.75 x .10

1шт.

17

180483C1

SUPPORT

ASSY, stabilizer anchor

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 hex-hd

1шт.

231-4617

LOCK NUT,7/16"-20, GB

NUT, 7/16 prevailing torque type 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 znd hex-hd cap

1шт.

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

SCREW, 7/16-20 x 1-1/4 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

453231R1

WASHER

.40 x 1.75 x .10

1шт.

495-11094

WASHER,7/8", SAE

.93 x 1.75 x .13

1шт.

18

179781C1

ADJUSTMENT SCREW,3/4"

ASSY, stabilizer adjusting

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex-jam

1шт.

172427

SHIELD

1/4-20 x 1/2 hex-hd

1шт.

19

179782C1

TUBE

ASSY, pitman stabilizer

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4-20 x 1/2 hex-hd

1шт.

20

179783C1

BUSHING,22.1mm ID x 50.93mm OD x 31.75mm L

pitman stabilizer rubber

2шт.

21

180484C2

SUPPORT

CHANNEL, divider pivot LH

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 hex-hd

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 sq-nk crg

1шт.

27718R1

CARRIAGE BOLT,#3, 7/16" - 14 x 2", Gr 5

BOLT, 7/16 x 2 no. 3 plow type 5

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

22

180485C2

SUPPORT

CHANNEL, divider pivot RH

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 hex-hd

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 sq-nk crg

1шт.

27718R1

CARRIAGE BOLT,#3, 7/16" - 14 x 2", Gr 5

BOLT, 7/16 x 2 no. 3 plow type 5

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

23

179798C1

STRAP

bar feather short, 13 for 13 ft, 16 for 15 ft, 17 for 16.5 ft, 18 for 17.5 ft, 22 for 20 ft, 25 for 22.5 ft

1шт.

24

179927C1

SPACER

drive

2шт.

25

179932C1

BAR

feather shield drive, 265 in., 660.4 mm

1шт.

26

179936C1

BAR

feather shield, 60 in., 1524.0 mm

1шт.

27

179937C1

BAR

feather shield, 63 in., 1600.2 mm, for 13 ft

1шт.

27

179933C1

BAR

feather shield, 39 in., 990.6 mm, for 15 ft

1шт.

27

179934C1

BAR

feather shield, 50 in., 1270.0 mm, for 15, 16.5, 17.5, 20 and 22.5 ft

1шт.

27

180257C1

BAR

feather shield, 57 in., 1447.8 mm, for 16.5 ft

1шт.

27

179938C1

BAR

feather shield, 69 in., 1752.6 mm, for 17.5 ft

1шт.

27

179935C1

BAR

feather shield, 51 in., 1295.4 mm, for 20 ft

1шт.

27

180466C1

BAR

feather shield, 33 in. 838.2 mm, for 22.5 ft

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 sq-nk crg

1шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4 hex. lock

1шт.

120392

WASHER,1/4", SAE

.28 x .62 x .06

1шт.

28

179939C1

PITMAN

ASSY, knife

1шт.

172427

SHIELD

1/4-20 x 1/2 hex-hd

1шт.

29

179783C1

BUSHING,22.1mm ID x 50.93mm OD x 31.75mm L

knife pitman rubber

1шт.

30

179940C1

JOINT

END ASSY, pitman rod, includes ref. no. 47

1шт.

31

179946C1

GUARD

SHIELD, cutter bar LH, 95 in., 2413.0 mm

1шт.

32

179947C1

GUARD

SHIELD, cutter bar RH, 65 in., 1651.0 mm, for 3 ft

1шт.

32

179948C1

GUARD

SHIELD, cutter bar RH, 89 in., 2260.6 mm, for 15 ft

1шт.

32

179949C1

GUARD

SHIELD, cutter bar RH, 41 in., 1041.4 mm, for 17.5 ft

1шт.

32

179950C1

GUARD

SHIELD, cutter bar RH, 53 in., 1346.2 mm, for 20 ft

1шт.

33

179951C1

GUARD

SHIELD, cutter bar center, 77 in., 1955.8 mm, for 17.5 and 22.5 ft

1шт.

33

179952C1

GUARD

SHIELD, cutter bar, 101 in., 2565.4 mm, RH for 16.5 ft, center for 20 and 22.5 ft

1шт.

34

179953C92

DIVIDER

ASSY, cutter bar LH, incl ref. nos. 35, 36 and 37

1шт.

35

179955C1

PANEL

SHEET ASSY, divider LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 sq-nk crg

1шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16 x 2-1/4 sq-nk crg

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 hex-jam

1шт.

179136

SET SCREW,Sq Hd, 1/2"-13 x 2 1/2"

SCREW, 1/2 x 2-1/2 sq-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06

1шт.

36

180496C1

GUARD

SHIELD, knife guard

2шт.

37

179958C1

TUBE

divider pivot

2шт.

38

179954C92

DIVIDER

ASSY, cutter bar RH, incl ref. nos. 36, 37 and 39

1шт.

39

179956C1

PANEL

SHEET ASSY, divider RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 sq-nk crg

1шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16 x 2-1/4 sq-nk crg

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 hex-jam

1шт.

179136

SET SCREW,Sq Hd, 1/2"-13 x 2 1/2"

SCREW, 1/2 x 2-1/2 sq-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06

1шт.

40

384442R1

JAM NUT

NUT, pitman rod end

1шт.

41

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

knife head

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga, hard

1шт.

334273C1

SPECIAL WASHER,19.84mm ID x 31.75mm OD x 1.52mm Thk

25/32 x 1-1/4 x 16 ga, hard

1шт.

42

22244R1

LOCK NUT

3/8 nylon insert

1шт.

43

179885C2

PANEL

SHEET, header end LH

1шт.

44

179886C2

PANEL

SHEET, header end rh

1шт.

45

180526C91

KIT

loop divider, parts accessory

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 sq-nk crg

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 stover lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

46

62036R1

SPACER

WASHER, divider pivot spacer, use w/180484C2 and 180485C2 channel

6шт.

47

20810R1

LUBE NIPPLE,#10-32 x .50" lg

FITTING, no. 10-32 NF str lub

1шт.

48

180491C1

BAR

knife head shim

1шт.

49

180482C1

BAR

knife head wear

1шт.

50

180497C1

BAR

knife head

1шт.
