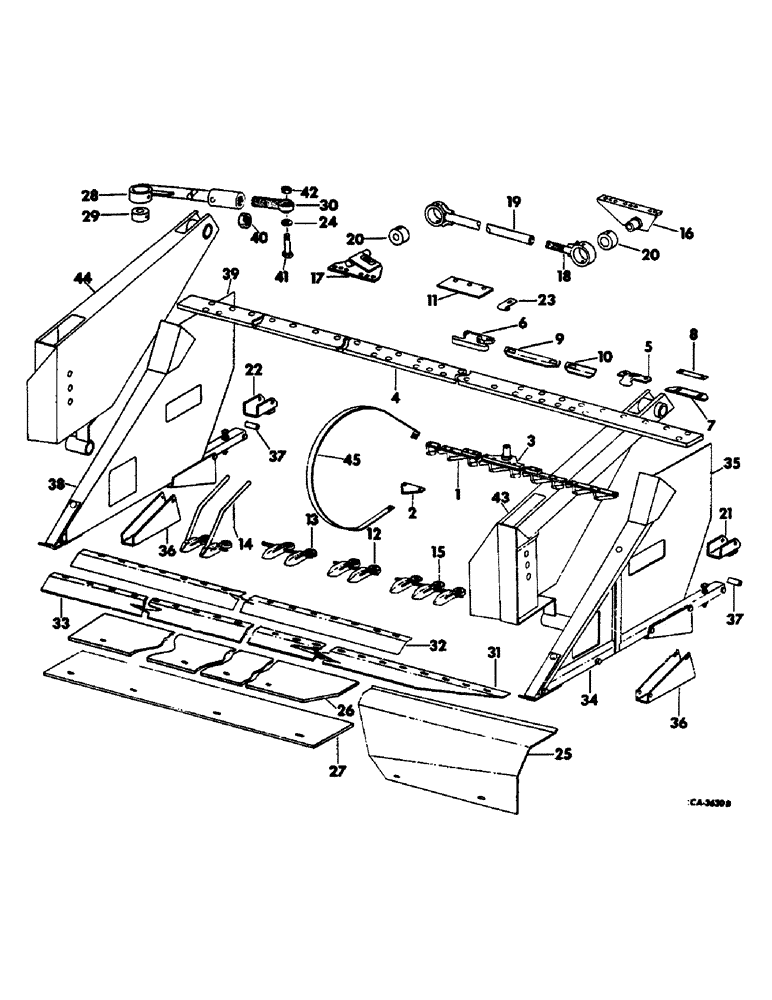

Запчасти Case IH 810 (C-21) - GRAIN HEADER, HART CARTER FLOATING CUTTER BAR, CUTTING PARTS, S/N 19000 & BELOW (58) - ATTACHMENTS/HEADERS

1

179761C91

KNIFE

ASSY, cutter bar, for 13 ft, includes ref. nos. 2 and 3

1шт.

1

179762C91

KNIFE

ASSY, cutter bar, for 15 ft, includes ref. nos. 2 and 3

1шт.

1

180254C91

KNIFE

ASSY, cutter bar, for 16.5 ft, includes ref. nos. 2 and 3

1шт.

1

179763C91

KNIFE

ASSY, cutter bar, for 17.5 ft, includes ref. nos. 2 and 3

1шт.

1

179764C91

KNIFE

ASSY, cutter bar, for 20 ft, includes ref. nos. 2 and 3

1шт.

2

179736C2

KNIFE SECTION

SECTION, knife, 51 for 13 ft, 59 for 15 ft, 65 for 16.5 ft, 69 for 17.5 ft, 79 for 20 ft

1шт.

185956C1

RIVET

no. 5-1/2 x .62 csk-hd

1шт.

3

179765C1

HEAD

ASSY, knife, rivet type head

1шт.

22444R1

CLEVIS PIN,3/8" x 1"

PIN, 3/8 x 1 rod end

1шт.

13861R1

RIVET,Csk, .211, 15/16"

NO. 5-1/2 x 15/16 rd-hd solid

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4 x 3-1/2 hex-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21883R1

WASHER

.53 x 1.75 x .10

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga hard

1шт.

334273C1

SPECIAL WASHER,19.84mm ID x 31.75mm OD x 1.52mm Thk

25/32 x 1-1/4 x 16 ga, hard

1шт.

4

179766C1

KNIFE

BACK, cutter bar, for 13 ft

1шт.

4

179767C1

KNIFE

BACK, cutter bar, for 15 ft

1шт.

4

180258C1

KNIFE

BACK, cutter bar, for 16.5 ft

1шт.

4

179768C1

KNIFE

BACK, cutter bar, for 17.5 ft

1шт.

4

179769C1

KNIFE

BACK, cutter bar, 20 ft

1шт.

5

179757C1

CLIP

knife, 12 for 13 ft, 14 for 15 ft, 15 for 16.5 ft, 16 for 17.5 ft, 19 for 20 ft

1шт.

6

179758C1

CLIP

knife, high clear

2шт.

7

179759C1

PLATE

knife clip wear, 14 for 13 ft, 16 for 15 ft, 17 for 16.5 ft, 18 for 17.5 ft, 21 for 20 ft

1шт.

8

179770C1

SHIM

knife clip, 20 ga

1шт.

8

179771C1

BLOCK

SHIM, knife clip, 28 ga, 14 for 13 ft, 16 for 15 ft, 17 for 16.5 ft, 18 for 17.5 ft, 21 for 20 ft

1шт.

9

179772C1

BRACKET

feather bar, double, 10 for 13 ft, 12 for 15 ft, 14 for 16.5 ft, 15 for 17.5 ft, 17 for 20 ft

1шт.

931192R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 no. 3 plow

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

10

179773C1

BRACKET

feather bar, single, 2 for 13, 15 and 20 ft, 1 for 16.5 and 17.5 ft

1шт.

931192R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 no. 3 plow

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

11

179774C1

PLATE

knife head wear

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

12

179775C1

FINGER

GUARD, knife double, 20 for 13 ft, 24 for 15 ft, 27 for 16.5 ft, 29 for 17.5 ft, 34 for 20 ft

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16 no. 3

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

13

179776C1

FINGER

GUARD W/SHORT CLIPS, knife

2шт.

930717R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 5

BOLT, 7/16 x 1-3/4 no. 3 plow

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

14

179777C1

GUARD

W/LIFTER RODS, knife

1шт.

931192R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 no. 3 plow

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

15

179778C1

FINGER

GUARD, knife triple

2шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16 no. 3

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

16

179779C2

BRACKET

ANGLE ASSY, stabilizer anchor

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

1шт.

274993

SHIELD

3/8 hex.

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21883R1

WASHER

.53 x 1.75 x .10

1шт.

17

179780C1

PLATE

ASSY, stabilizer anchor

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

453231R1

WASHER

.40 x 1.75 x .10

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

130384

SHOVEL

.93 x 1.75 x .13

1шт.

18

179781C1

ADJUSTMENT SCREW,3/4"

ASSY, stabilizer adjusting

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex-jam

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4-20 x 1/2 hex-hd

1шт.

19

179782C1

TUBE

ASSY, pitman stabilizer

1шт.

172427

SHIELD

1/4-20 x 1/2 hex-hd

1шт.

20

179783C1

BUSHING,22.1mm ID x 50.93mm OD x 31.75mm L

pitman stabilizer rubber

2шт.

21

179784C1

BRACKET

ASSY, divider pivot LH

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 hex-hd

1шт.

930717R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 5

BOLT, 7/16 x 1-3/4 no. 3 plow

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22

179785C1

BRACKET

ASSY, divider pivot RH

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 hex-hd

1шт.

930717R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 5

BOLT, 7/16 x 1-3/4 no. 3 plow

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

23

179798C1

STRAP

bar feather short, 13 for 13 ft, 16 for 15 ft, 17 for 16.5 ft, 18 for 17.5 ft, 22 for 20 ft

1шт.

24

179927C1

SPACER

drive

2шт.

25

179932C1

BAR

feather shield drive, 26 in., 660.4 mm

1шт.

26

179936C1

BAR

feather shield, 60 in., 1524.0 mm

1шт.

27

179937C1

BAR

feather shield, 63 in., 1600.2 mm, for 13 ft

1шт.

27

179933C1

BAR

feather shield, 39 in., 990.6 mm, for 15 ft

1шт.

27

179934C1

BAR

feather shield, 50 in. 1270.0 mm, for 15, 16.5, 17.5 and 20 ft

1шт.

27

180257C1

BAR

feather shield, 57 in. 1447.8 mm, for 16.5 ft

1шт.

27

179938C1

BAR

feather shield, 69 in., 1752.6 mm, for 17.5 ft

1шт.

27

179935C1

BAR

feather shield, 51 in., 1295.4 mm, for 20 ft

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 sq-nk crg

1шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4 hex. lock

1шт.

120392

WASHER,1/4", SAE

.28 x .62 x .06

1шт.

28

179939C1

PITMAN

ASSY, knife

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4-20 x 1/2 hex-hd

1шт.

29

179783C1

BUSHING,22.1mm ID x 50.93mm OD x 31.75mm L

knife pitman rubber

1шт.

30

179940C1

JOINT

END ASSY, pitman rod

1шт.

31

179946C1

GUARD

SHIELD, cutter bar LH, 95 in., 2413.3 mm

1шт.

32

179947C1

GUARD

SHIELD, cutter bar RH, 65 in., 1651.0 mm, for 13 ft

1шт.

32

179948C1

GUARD

SHIELD, cutter bar RH, 89 in., 2260.6 mm, for 15 ft

1шт.

32

179949C1

GUARD

SHIELD, cutter bar RH, 41 in., 1041.4 mm, for 17.5 ft

1шт.

32

179950C1

GUARD

SHIELD, cutter bar RH, 53 in., 1346.2 mm, for 20 ft

1шт.

33

179951C1

GUARD

SHIELD, cutter bar center, 77 in., 1955.8 mm, for 17.5 ft

1шт.

33

179952C1

GUARD

SHIELD, cutter bar, 101 in. 2565.4 mm, RH for 16.5 ft, center for 20 ft

1шт.

34

179953C92

DIVIDER

ASSY, cutter bar LH, incl ref. nos. 35, 36 and 37

1шт.

35

179955C1

PANEL

SHEET ASSY, divider LH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 sq-nk crg

1шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16 x 2-1/4 sq-nk crg

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 hex-jam

1шт.

179136

SET SCREW,Sq Hd, 1/2"-13 x 2 1/2"

SCREW, 1/2 x 2-1/2 sq-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06

1шт.

36

179957C1

GUARD

SHIELD, knife guard

2шт.

37

179958C1

TUBE

divider pivot

2шт.

38

179954C92

DIVIDER

ASSY, cutter bar RH, incl ref. nos. 36, 37 and 39

1шт.

39

179956C1

PANEL

SHEET ASSY, divider RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

18482R1

BOLT,Short NK, 5/16"-18 x 2", G2

5/16 x 2 sq-nk crg

1шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16 x 2-1/4 sq-nk crg

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 hex-jam

1шт.

179136

SET SCREW,Sq Hd, 1/2"-13 x 2 1/2"

SCREW, 1/2 x 2-1/2 sq-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06

1шт.

40

384442R1

JAM NUT

NUT, pitman rod end

1шт.

41

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

knife head

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga, hard

1шт.

334273C1

SPECIAL WASHER,19.84mm ID x 31.75mm OD x 1.52mm Thk

25/32 x 1-1/4 x 16 ga, hard

1шт.

42

22244R1

LOCK NUT

3/4 nylon insert

1шт.

43

179885C2

PANEL

SHEET, header end LH

1шт.

44

179886C2

PANEL

SHEET, header end RH

1шт.

45

180526C91

KIT

divider loop, parts accessory

1шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 sq-nk crg

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 hex. lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
