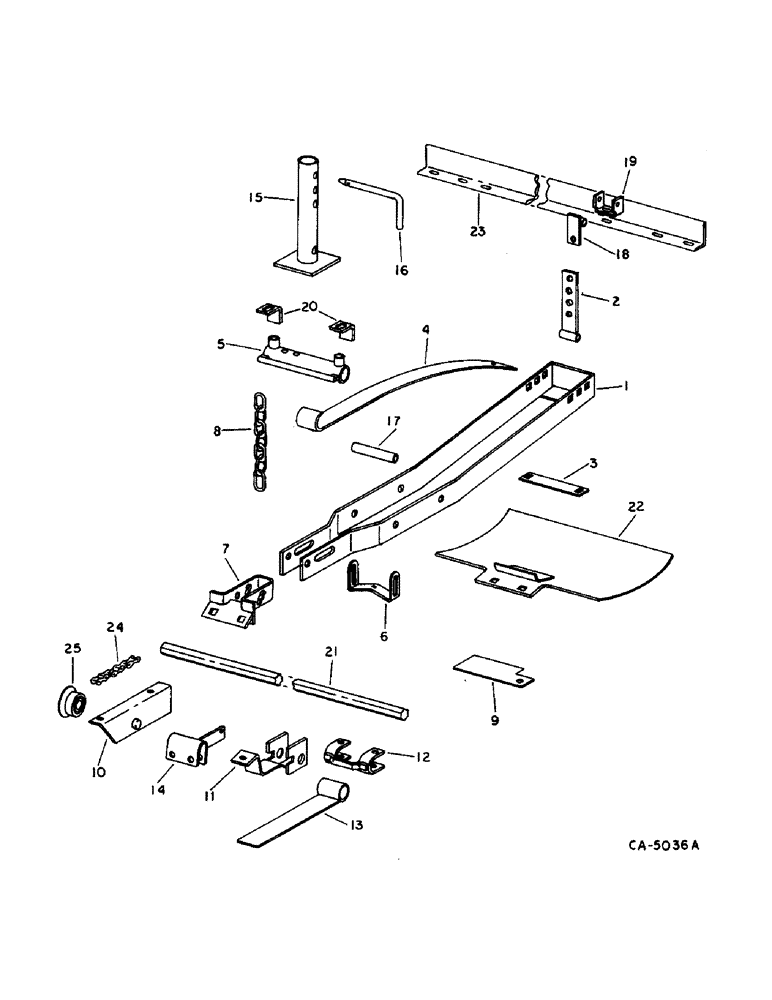

Запчасти Case IH 810 (C-15) - GRAIN HEADER, HART CARTER FLOATING CUTTER BAR, FLOATING PARTS (58) - ATTACHMENTS/HEADERS

1

180489C1

SUPPORT

ASSY, spring, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft, 7 for 22.5 ft

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

2

180490C2

SUPPORT

ASSY, hanger short rear, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft, 7 for 22.5 ft

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex.

1шт.

27454R1

BOLT

BOLT, 3/8 x 3-1/4 sq-nk crg type 5

1шт.

274993

SHIELD

3/8 hex.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

180493C1

BAR

spring adjustment, 8 for 13 ft, 10 for 15, 16.5 and 17.5 ft, 12 for 20 ft, 14 for 22.5 ft

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 sq-nk crg

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

4

179963C1

SPRING

shoe flat, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft, 7 for 22.5 ft

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd

1шт.

274993

SHIELD

3/8 hex. torque lock

1шт.

5

179964C1

BRACKET

ASSY, shoe hanger, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft., 7 for 22.5 ft

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 hex-hd

1шт.

18516R1

BOLT,3/8" x 3 3/4"

3/8 x 3-3/4 sq-nk crg

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06

1шт.

6

180495C1

SUPPORT

lockup, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft, 7 for 22.5 ft

1шт.

18516R1

BOLT,3/8" x 3 3/4"

3/8 x 3-3/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06

1шт.

7

180492C1

SUPPORT

bar attaching, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft, 7 for 22.5 ft

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 sq-nk crg

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

8

CHAIN ASSY, anchor, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft, 7 for 22.5 ft, use 7 links of 1/4 in. coil chain from 100 ft roll marked zan 4030236

1шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 hex-hd

1шт.

274993

SHIELD

3/8 hex.

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga

1шт.

9

178222C2

PLATE

GUIDE, control feeler, 3 for 13 ft, 5 for 15, 16.5 , 17.5 20 and 22.5 ft

1шт.

120389

WASHER,7/16"

.500 x 1.250 x .064

1шт.

10

179786C1

SUPPORT

ASSY, control cable anchor

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

11

179787C1

SUPPORT

ASSY, control bar pivot, 4 for 13 ft, 6 for 15, 16.5, 17.5, 20 and 22.5 ft

1шт.

12

179788C1

BAR ASSY.

BAR ASSY, feeler stop, 3 for 13 ft, 5 for 15, 16.5, 17.5, 20 and 22.5 ft

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

13

179789C1

BAR

FEELER ASSY, header control, 3 for 13 ft, 5 for 15, 16.5, 17.5, 20 and 22.5 ft

1шт.

14

179790C1

ARM

ASSY, control cable anchor

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

15

179791C1

STAND

ASSY, header support

2шт.

16

179792C1

ROD

support stand holder

2шт.

517843R1

COTTER PIN

PIN, 3/16 cot.

1шт.

17

155588C1

SPACER,3/8" X-Strng Pipe x 2"

3/8 x 2 extra strong pipe, 4 for 13 ft, 5 for 15, 16.6 and 17.5 ft, 6 for 20 ft, 7 for 22.5 ft

1шт.

18

179796C2

PIVOT ASSY.

PIVOT ASSY, hanger strap, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft, 7 for 22.5 ft

1шт.

19

179797C1

BRACKET

hanger pivot, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft, 7 for 22.5 ft

1шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 hex-hd

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

20

180488C1

BRACKET

ANGLE, shoe hanger bracket, 8 for 13 ft, 10 for 15, 16.5 and 17.5 ft, 12 for 20 ft, 14 for 22.5 ft

1шт.

21

179928C1

BAR

control hex., 11.5 ft, for 13 ft

1шт.

21

179929C1

BAR

control hex., 13.5 ft, for 15 ft

1шт.

21

180256C1

BAR

control hex., 15 ft, for 16.5 ft

1шт.

21

179930C1

BAR

control hex., 16 ft, for 17.5 ft

1шт.

21

179931C1

BAR

control hex., 18.5 ft, for 20 ft

1шт.

21

180465C1

BAR

control hex., 21 ft, for 22.5 ft

1шт.

22

180458C1

SHOE

skid, 5 for 13 ft, 6 for 15, 16.5 ft, 7 for 17.5 ft, 8 for 20 ft, 9 for 22.5 ft

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 sq-nk crg

1шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2 sq-nk crg

1шт.

9413947

NUT,7/16"-14, GA

7/16 hex. lock

1шт.

23

180459C1

BRACKET

ANGLE, shoe side hanger, for 13 ft

2шт.

23

180460C1

BRACKET

ANGLE, shoe side hanger, for 15 ft

2шт.

23

180461C1

BRACKET

ANGLE, shoe side hanger, for 16.5 ft

2шт.

23

180462C1

BRACKET

ANGLE, shoe side hanger, for 17.5 ft

2шт.

23

180463C1

BRACKET

ANGLE, shoe side hanger, for 20 ft.

2шт.

23

180464C1

BRACKET

ANGLE, shoe side hanger, for 22.5 ft

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

24

174266C1

CHAIN (AG)

CHAIN, finger pivot

1шт.

25

482635R2

ROLLER

chain idler

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

22042R1

WASHER

17/32 x 2 x 11 ga

1шт.
