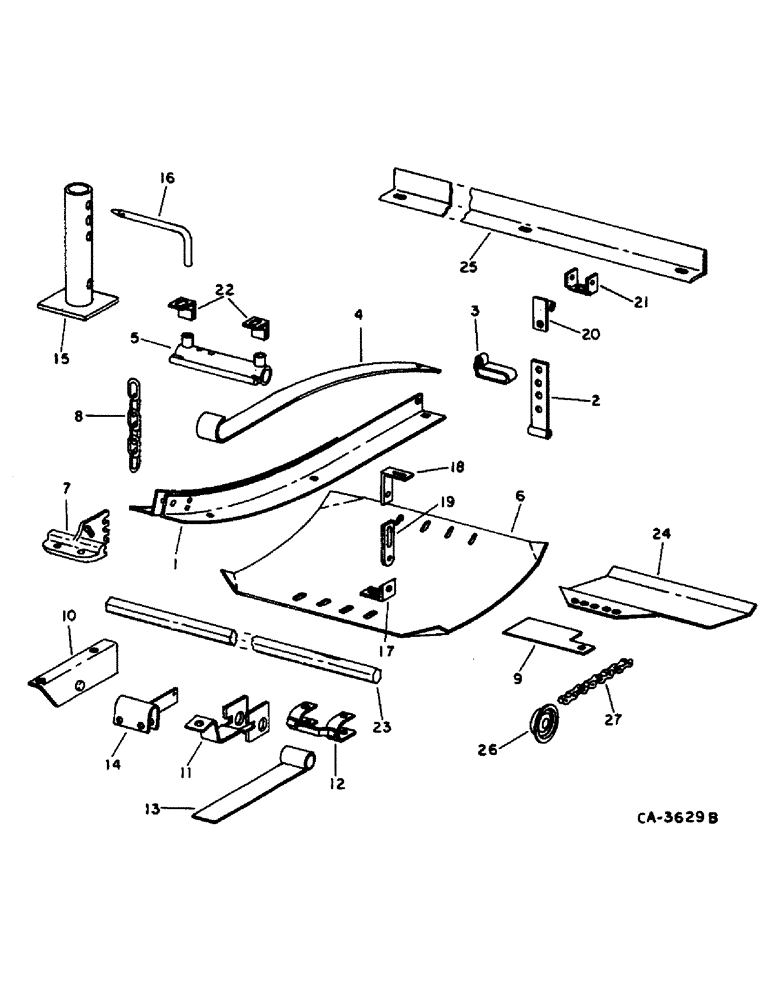

Запчасти Case IH 810 (C-12) - GRAIN HEADER, HART CARTER FLOATING CUTTER BAR, FLOATING PARTS, S/N 19000 AND BELOW (58) - ATTACHMENTS/HEADERS

1

179959C1

ARM

ASSY, floating shoe, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

2

179960C1

STRAP

ASSY, shoe adjusting, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex

1шт.

27490R1

BOLT,Hex, 3/8"-16 x 2 1/2", G8

3/8 x 2-1/2 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

274993

SHIELD

3/8 hex.

1шт.

425-126

SLOTTED NUT,3/8"-16, G5

NUT, 3/8 slt-hex.

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

179962C1

SPRING

ASSY, spring tension clip, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16 x 3/8 hex-soc-hd

1шт.

4

179963C1

SPRING

shoe flat, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

5

179964C1

BRACKET

ASSY, shoe hanger, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 hex-hd

1шт.

19611R1

BOLT,3/8" x 3 1/4"

3/8 x 3-1/4 sq-nk crg

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06

1шт.

6

179965C1

PLATE

floating shoe, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

179966C1

PAD

floating shoe, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

427586

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

5/16 x 1-1/4 hex-hd

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 hex-hd

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 hex-hd

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 hex. lock

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

21330R1

NUT,1/2"-13, G8

1/2 hex.

1шт.

366861C1

LOCK WASHER

5/16 rib lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

8

179967C1

CHAIN (AG)

CHAIN ASSY, shoe anchor, 6 links, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

9

178222C2

PLATE

GUIDE, control feeler, 3 for 13 ft, 5 for 15, 16.5, 17.5 and 20 ft

1шт.

10

179786C1

SUPPORT

ASSY, control cable anchor

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

11

179787C1

SUPPORT

ASSY, control bar pivot, 4 for 13 ft, 6 for 15, 16.5, 17.5 and 20 ft

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

179788C1

BAR ASSY.

BAR ASSY, feeler stop, 3 for 13 ft, 5 for 15, 16.5, 17.5 and 20 ft

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

13

179789C1

BAR

FEELER ASSY, header control, 3 for 13 ft, 5 for 15, 16.5, 17.5 and 20 ft

1шт.

14

179790C1

ARM

ASSY, control cable anchor

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

15

179791C1

STAND

ASSY, header support

2шт.

16

179792C1

ROD

support stand holder

2шт.

517843R1

COTTER PIN

PIN, 3/16 x 2-7/8 QA cotter

2шт.

17

179793C1

BRACKET

ANGLE, small grain lower, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

179794C1

BRACKET

ANGLE, small grain upper, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

19

179795C1

STRAP

small grain, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

20

179796C2

PIVOT ASSY.

PIVOT ASSY, hanger strap, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

21

179797C1

BRACKET

hanger pivot, 4 for 13 ft, 5 for 15, 16.5 and 17.5 ft, 6 for 20 ft

1шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 hex-hd

1шт.

274993

SHIELD

3/8 hex. lock

1шт.

22

179799C1

SPACER

shoe hanger bracket, 8 for 13 ft, 10 for 15, 16.5 and 17.5 ft, 12 for 20 ft

1шт.

23

179928C1

BAR

control hex., 11.5 ft, for 13 ft

1шт.

23

179929C1

BAR

control hex., 13.5 ft, for 15 ft

1шт.

23

180256C1

BAR

control hex., 15 ft, for 16.5 ft

1шт.

23

179930C1

BAR

control hex. 16 ft, for 17.5 ft

1шт.

23

179931C1

BAR

control hex., 18.5 ft, for 20 ft

1шт.

24

179941C1

SHOE

SKID, cutter bar shoe, 1 for 13 ft, 2 for 15, 16.5 and 17.5 ft, 4 for 20 ft

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25

179942C1

BRACKET

ANGLE, shoe side hanger, for 13 ft

2шт.

25

179943C1

BRACKET

ANGLE, shoe side hanger, for 15 ft

2шт.

25

180255C1

BRACKET

ANGLE, shoe side hanger, for 16.5 ft

2шт.

25

179944C1

BRACKET

ANGLE, shoe side hanger, for 17.5 ft

2шт.

25

179945C1

BRACKET

ANGLE, shoe side hanger, for 20 ft

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

26

482635R2

ROLLER

chain idler

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

22042R1

WASHER

17/32 x 2 x 11 ga

1шт.

27

174266C1

CHAIN (AG)

CHAIN, finger pivot

1шт.

179997C91

BAR ASSY.

BAR ASSY, control hex., service package, consists of, (1) arm assy, 179790C1, (5) bar assy, feeler 179788C1, (1) bar, control hex. 179931C1, (5) feeler assy, 179789C1, (6) support assy, 179787C1

1шт.
