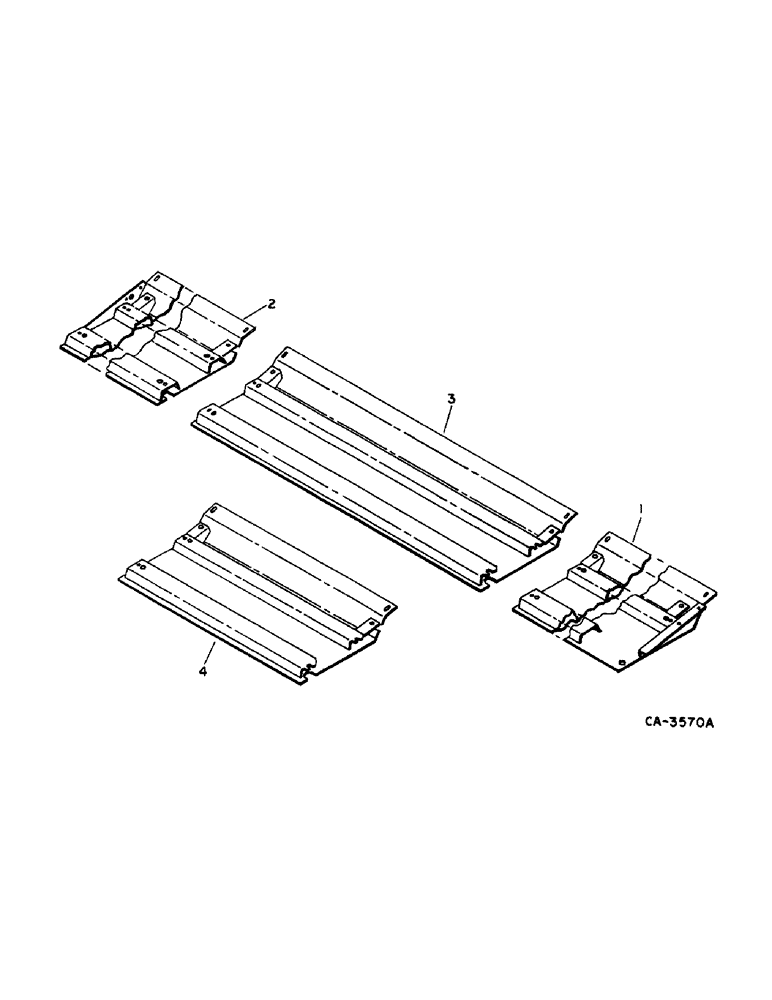

Запчасти Case IH 810 (C-11) - GRAIN HEADER, BOTTOM SHIELDS (58) - ATTACHMENTS/HEADERS

1

179156C1

GUARD

SHIELD ASSY, bottom LH, for 10 ft

1шт.

1

176741C2

GUARD ASSY.

SHIELD ASSY, bottom LH, for 13 ft

1шт.

1

176744C2

GUARD ASSY.

SHIELD ASSY, bottom LH, for 15 ft

1шт.

1

197189C2

GUARD ASSY.

SHIELD ASSY, bottom LH, for 16.5 ft

1шт.

1

176743C2

GUARD ASSY.

SHIELD ASSY, bottom LH, for 17.5 ft

1шт.

1

176739C2

GUARD ASSY.

SHIELD ASSY, bottom LH, for 20 ft w/20 in., 508mm auger

1шт.

1

1319126C1

SHIELD

ASSY, bottom LH, for 20 ft w/23.6 in., 600mm auger

1шт.

1

1319128C1

SHIELD

ASSY, bottom LH, for 22.5 ft w/23.6 in., 600mm auger

1шт.

1

1319130C1

SHIELD

ASSY, bottom LH, for 24 ft w/23.6 in., 600mm auger

1шт.

1

197190C2

GUARD

SHIELD ASSY, bottom LH, for 22.5 ft

1шт.

1

176742C2

SHIELD

ASSY, bottom LH, for 24 ft

1шт.

1

187435C2

GUARD

SHIELD ASSY, bottom LH, for 30.0 ft

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

2шт.

2

179157C1

SHIELD ASSY, bottom RH, for 10 ft

1шт.

2

176736C2

GUARD ASSY.

SHIELD ASSY, bottom RH, for 13 ft

1шт.

2

176738C2

GUARD ASSY.

SHIELD ASSY, bottom RH, for 15 ft

1шт.

2

197191C2

GUARD ASSY.

SHIELD ASSY, bottom RH, for 16.5 ft

1шт.

2

176735C2

GUARD

SHIELD ASSY, bottom RH, for 17.5 ft

1шт.

2

176734C2

GUARD ASSY.

SHIELD ASSY, bottom RH, for 20 ft w/20 in., 508mm auger

1шт.

2

1319127C1

SHIELD

ASSY, bottom RH, for 20 ft w/23.6 in., 600mm auger

1шт.

2

1319129C1

SHIELD

ASSY, bottom RH, for 22.5 ft w/23.6 in., 600mm auger

1шт.

2

1319131C1

SHIELD

ASSY, bottom RH, for 24 ft w/23.6 in., 600mm auger

1шт.

2

197192C2

GUARD

SHIELD ASSY, bottom RH, for 22.5 ft

1шт.

2

176737C2

GUARD

SHIELD ASSY, bottom RH, for 24 ft

1шт.

2

187438C2

GUARD

SHIELD ASSY, bottom RH, for 30.0 ft

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

2шт.

3

176732C2

GUARD ASSY.

SHIELD ASSY, bottom center, for 10 thru 24 ft w/20 in. 508mm auger

1шт.

3

187433C2

GUARD ASSY.

SHIELD ASSY, bottom center, 1 for 20, 22.5 & 24 ft w/23.6 in., 600mm auger, 3 for 30.0 ft

1шт.

4

176733C2

GUARD ASSY.

SHIELD ASSY, bottom inner, for 20, 22.5 and 24 ft w/20 in. 508mm auger

2шт.

4

1319123C1

SHIELD

ASSY, bottom inner, for 20, 22.5 and 24 ft w/23.6 in., 600mm auger

2шт.
