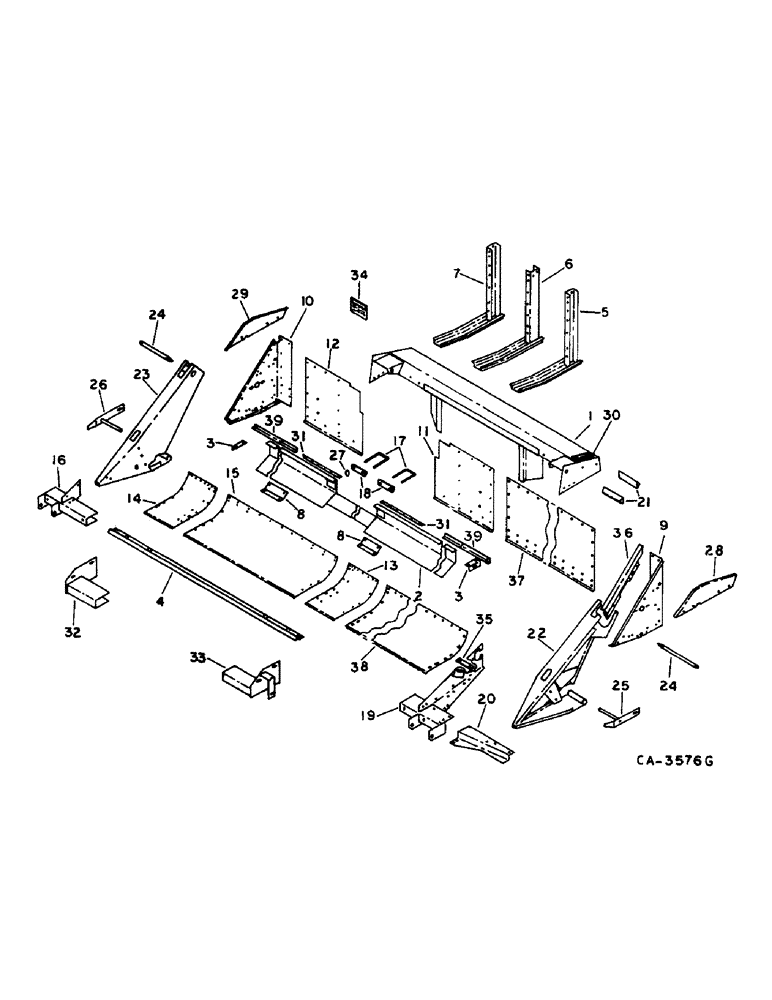

Запчасти Case IH 810 (C-08) - GRAIN HEADER, HEADER, FOR 13, 15, 16.5, 17.5, 20, 22.5, 24, AND 30 FT. (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
184747C92
BEAM ASSY.
BEAM ASSY, main, 13.0 ft
1шт.
1
184748C92
BEAM ASSY.
BEAM ASSY, main, 15.0 ft
1шт.
1
184749C92
BEAM ASSY.
BEAM ASSY, main, 16.5 ft
1шт.
1
184750C92
BEAM ASSY.
BEAM ASSY, main, 17.5 ft
1шт.
1
184751C92
BEAM ASSY.
BEAM ASSY, main, 20 ft w/20 in., 508mm auger
1шт.
1
1319244C91
BEAM
ASSY, main, 20 ft w/23.6 in., 600mm auger
1шт.
1
1319415C91
BEAM
ASSY, main, 22.5 ft w/23.6 in. 600mm auger
1шт.
1
1319416C91
BEAM
ASSY, main, 24 ft w/23.6 in. 600mm auger
1шт.
1
184752C92
BEAM ASSY, main, 22.5 ft
1шт.
1
184753C92
BEAM ASSY, main, 24.0 ft
1шт.
1
1305694C92
BEAM ASSY.
BEAM ASSY, main, 30.0 ft, includes ref no. 30
1шт.
2
176620C2
BEAM ASSY.
BEAM ASSY, lower, 13.0 ft
1шт.
2
176621C2
BEAM ASSY.
BEAM ASSY, lower, 15.0 ft
1шт.
2
197151C2
BEAM ASSY.
BEAM ASSY, lower, 16.5 ft
1шт.
2
176622C2
BEAM ASSY.
BEAM ASSY, lower, 17.5 ft
1шт.
2
176623C2
BEAM
ASSY, lower, 20 ft w/20 in., 508.0mm auger
1шт.
2
1319106C1
BEAM
ASSY, lower, 20 ft w/23.6 in., 600mm auger
1шт.
2
1319107C1
BEAM
ASSY, lower, 22.5 ft w/23.6 in. 600mm auger
1шт.
2
1319108C1
BEAM
ASSY, lower, 24 ft w/23.6 in. 600mm auger
1шт.
2
197152C2
BEAM ASSY.
BEAM ASSY, lower, 22.5 ft
1шт.
2
176624C2
BEAM
ASSY, lower, 24.0 ft
1шт.
2
187384C2
BEAM ASSY.
BEAM ASSY, lower, 30.0 ft
1шт.
598813R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT, 1/2 x 1 sq-nk crg type 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
1шт.
3
176685C2
ANGLE
stripper end
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
4
176640C1
CUTTER BAR
BAR, cutter, 13.0 ft
1шт.
4
176641C1
CUTTER BAR
BAR, cutter, 15.0 ft
1шт.
4
197165C1
CUTTER BAR
BAR, cutter, 16.5 ft
1шт.
4
176642C2
KNIFE
BAR, cutter, 17.5 ft
1шт.
4
176643C1
KNIFE
BAR, cutter, 20.0 ft
1шт.
4
197166C1
CUTTER BAR
BAR, cutter, 22.5 ft
1шт.
4
176644C1
KNIFE
BAR, cutter, 24.0 ft
1шт.
4
187410C1
BAR
cutter, 30.0 ft
1шт.
550796R1
CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5
BOLT, 3/8 x 1-1/4 crg type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
5
177150C2
SUPPORT
ASSY, J inner LH, for 13 thru 24 ft w/20 in. 508mm auger
1шт.
5
1319168C1
SUPPORT
ASSY, J inner LH, for 20, 22.5 & 24 ft w/23.6 in., 600mm auger
1шт.
5
187444C1
SUPPORT ASSY.
SUPPORT ASSY, J inner LH, for 30.0 ft
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
9413969
NUT,5/8"-11, GB
5/8 cad p/t lock type 5
2шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
1шт.
NLS
NO LONGER SERVICED
5/8 x 1-1/4 type 5
2шт.
650338R1
BUSHING
SPACER, 7/8 x .562 tube
2шт.
6
176651C3
SUPPORT ASSY.
SUPPORT ASSY, J inner RH, 1 for 13, 15, 16.5 and 17.5 ft, 2 for 20, 22.5 and 24 ft
1шт.
6
187445C1
SUPPORT ASSY.
SUPORT ASSY, J inner RH, 2 for 20, 22.5 & 24 ft w/23.6 in., 600mm auger, 1 for outer LH and 1 for inner RH, 2 for 30.0 ft
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
9413969
NUT,5/8"-11, GB
5/8 prevailing torque hex.
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
1шт.
271546
BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5
5/8 x 1-1/4 type 5
1шт.
7
176650C3
SUPPORT ASSY.
SUPPORT ASSY, J outer RH, 1 for 20, 22.5 and 24 ft w/20 in. 508mm auger
1шт.
7
187444C1
SUPPORT ASSY.
SUPPORT ASSY, J outer RH, 1 for 20 thru 30 ft w/23.6 in. 600mm auger
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
2шт.
9413969
NUT,5/8"-11, GB
5/8 CAD p/t lock type 5
2шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
2шт.
NLS
NO LONGER SERVICED
5/8 x 1-1/4 type 5
2шт.
8
176655C1
ANGLE
bottom support, 2 for 13, 15, 16.5 and 17.5 ft, 4 for 20, 22.5 and 24 ft
1шт.
598813R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT, 1/2 x 1 sq-nk crg type 5
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
9
176656C2
SHEET
LH end, for 13 thru 24 ft w/20 in., 508mm auger
1шт.
9
180264C4
PANEL
SHEET, LH end, for 20 thru 30 ft w/23.6 in., 600mm auger
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
1шт.
10
176657C2
SHEET
RH end, for 13 thru 24 ft w/20 in. 508mm auger
1шт.
10
180265C4
SHEET
RH end, for 20 thru 30 ft w/23.6 in., 600mm auger
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
1шт.
11
176660C1
SHEET
BACKSHEET, left, 13 ft
1шт.
11
176662C1
SHEET
BACKSHEET, left, 15 ft
1шт.
11
197161C1
SHEET
BACKSHEET, left, 16.5 ft
1шт.
11
176664C1
SHEET
BACKSHEET, left, 17.5 ft
1шт.
11
176666C1
SHEET
BACKSHEET, left, 20 ft
1шт.
11
197163C1
SHEET
BACKSHEET, left, 22.5 ft
1шт.
11
176668C1
PANEL
BACKSHEET, left, 24 ft
1шт.
11
187411C1
SUPPORT
BACKSHEET, left, 30.0 ft
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
12
176661C1
SHEET
BACKSHEET, right, 13 ft
1шт.
12
176663C1
SHEET
BACKSHEET, right, 15 ft
1шт.
12
197162C1
SHEET
BACKSHEET, right, 16.5 ft
1шт.
12
176665C1
SHEET
BACKSHEET, right, 17.5 ft
1шт.
12
176667C1
SHEET
BACKSHEET, right, 20 ft
1шт.
12
197164C1
SHEET
BACKSHEET, right, 22.5 ft
1шт.
12
176669C1
PANEL
BACKSHEET, right, 24 ft
1шт.
12
187412C1
SUPPORT
BACKSHEET, right, 30.0 ft
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
13
176673C2
PLATE
SHEET, left bottom, 13 ft
1шт.
13
176675C2
BOTTOM
SHEET, left bottom, 15 ft
1шт.
13
197157C2
BOTTOM
SHEET, left bottom, 16.5 ft
1шт.
13
176677C2
PLATE
SHEET, left bottom, 17.5 ft
1шт.
13
176679C2
BOTTOM
SHEET, left bottom, for 20 ft w/20 in., 508mm auger
1шт.
13
1319097C1
BOTTOM
SHEET, left bottom, for 20 ft w/23.6 in., 600mm auger
1шт.
13
1319101C1
BOTTOM
SHEET, left bottom, for 22.5 ft w/23.6 in., 600mm auger
1шт.
13
1319103C1
BOTTOM
SHEET, left bottom, for 24 ft w/23.6 in., 600mm auger
1шт.
13
197159C2
PLATE
SHEET, left bottom, 22.5 ft
1шт.
13
176681C2
PLATE
SHEET, left bottom, 24 ft
1шт.
13
187406C2
SUPPORT
SHEET, left bottom, 30 ft
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1 sq-nk crg type 5
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
1/2 x 1 hex-hd flange lock
1шт.
598813R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT, 1/2 x 1 sq-nk crg type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
14
176674C2
PLATE
SHEET, right bottom, 13 ft
1шт.
14
176676C2
BOTTOM
SHEET, right bottom, 15 ft
1шт.
14
197158C2
BOTTOM
SHEET, right bottom, 16.5 ft
1шт.
14
176678C2
BOTTOM
SHEET, right bottom, 17.5 ft
1шт.
14
176680C2
BOTTOM
SHEET, right bottom, for 20 ft w/20 in., 508mm auger
1шт.
14
1319098C1
BOTTOM
SHEET, right bottom, for 20 ft w/23.6 in., 600mm auger
1шт.
14
1319102C1
BOTTOM
SHEET, right bottom, for 22.6 ft w/23.6 in., 600mm auger
1шт.
14
1319104C1
BOTTOM
SHEET, right bottom, for 24 ft w/23.6 in., 600mm auger
1шт.
14
197160C2
PLATE
SHEET, right bottom, 22.5 ft
1шт.
14
176682C2
PLATE
SHEET, right bottom, 24 ft
1шт.
14
187407C2
SUPPORT
SHEET, right bottom, 30 ft
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1 sq-nk crg type 5
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
1/2 x 1 hex-hd flange lock
1шт.
598813R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT, 1/2 x 1 sq-nk crg type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
15
176683C2
BOTTOM
SHEET, center bottom, for 13 thru 24 ft w/20 in., 508mm auger
1шт.
15
187405C2
SUPPORT
SHEET, center bottom, for 20 thru 30 ft w/23.6 in. 600mm auger
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1 sq-nk crg type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
16
176836C1
SUPPORT ASSY.
SUPPORT ASSY, RH divider channel, for 13 thru 24 ft w/20 in. 508mm auger, not for floating cutter bar w/serial no. 26001 and above
1шт.
16
187430C1
SUPPORT ASSY.
SUPPORT ASSY, RH divider channel, for 20 thru 30 ft w/23.6 in. 600mm auger
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
3/8 x 1 slt-truss-hd
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 hex-hd cap
1шт.
17
177134C3
U-BOLT,5/8" - 11 x 2.18" W x 4.60" L
feeder latch
2шт.
231-14410
NUT,5/8"-11, GB
NUT, LOCK, 5/8"-11, GB
4шт.
18
177140C1
BAR
feeder latch u-bolt
2шт.
19
178001C3
SUPPORT
ASSY, knife drive, for 13 thru 24 ft w/20 in. 508mm auger, not for floating cutter bar w/serial no. 26001 and above
1шт.
19
187426C1
SUPPORT ASSY.
SUPPORT ASSY, knife drive, for 20 thru 30 ft w/23.6 in., 600mm auger
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
6шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
20
178004C1
SUPPORT
knife drive lower
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
9412230
LOCK NUT
1/2 PHC p/t lock type 8
1шт.
21330R1
NUT,1/2"-13, G8
1/2 type 8
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 hex-hd cap
1шт.
427566
BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd
1/2 x 1-1/2 hex-hd type 8
1шт.
366864C1
LOCK WASHER,1/2"
1/2"
1шт.
25546R1
WASHER,17/32" x 1 1/16" x .188", HDN
.531 x 1.062 x .188 PHC hdn
1шт.
21
175311C1
REFLECTOR
red
2шт.
22
176812C1
DIVIDER
ASSY, LH, not for floating cutting bar
1шт.
23
176813C1
DIVIDER
ASSY, RH, not for floating cutting bar
1шт.
24
197959C2
AXLE PIN
PIN, upper pivot
2шт.
517843R1
COTTER PIN
PIN, 3/16 QA cotter
1шт.
27807R1
LOCK PIN,3/8" x 4", Slotted
Pin, 3/8" x 4", Slotted
1шт.
591715R1
WASHER
1-1/32 x 1-1/2 x 16 ga
1шт.
25
176830C2
BOLT
PIN ASSY, lower LH
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
21975R1
SPLIT PIN/SAFETY PIN,5/16" x 13/16"
PIN, 5/16 x 13/16 znd std-hd
1шт.
26
176832C2
PIN ASSY.
PIN ASSY, lower RH
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
21975R1
SPLIT PIN/SAFETY PIN,5/16" x 13/16"
PIN, 5/16 x 13/16 std-hd
1шт.
27
155960C1
BELLEVILLE WASHER
u-bolt spring steel
8шт.
28
176937C2
GUARD
SHIELD, auger end LH, for 13 thru 24 ft w/20 in. 508mm auger, for use w/windrow pickup
1шт.
28
187423C4
SHIELD
auger end LH, for 20 thru 30 ft w/23.6 in. 600mm auger
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
4шт.
29
176938C2
GUARD
SHIELD, auger end RH, for use w/windrow pickup, for 13 thru 24 ft w/20 in., 508mm auger
1шт.
29
187424C4
SHIELD
auger end RH, for thru 30 ft w/23.6 in., 600 mm auger
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 slt-truss-hd
4шт.
30
1320694C1
DECAL
PRODUCT GRAPHIC, danger instruction, replaces 176977C1
1шт.
31
NSS
NOT SOLD SEPARAT
STRIPPER, adjusting, order package 180583C91
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
12шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
12шт.
32
180825C1
SUPPORT
front RH, for floating cutter bar w/serial no. 26001 and above
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 crg type 1
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
33
180903C1
BRACKET
support, for floating cutter bar w/serial no. 26001 and above
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 crg type 1
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
271726
ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5
5/8 x 2-3/4 type 5
1шт.
9413969
NUT,5/8"-11, GB
5/8 CAD p/t lock type 5
1шт.
34
184624C1
PRODUCT GRAPHIC
caution, knife and reel
2шт.
35
BAR, bottom sheet spacer, part of ref nos 5, 6 and 7, for 20 thru 30 ft w/23.6 in., 600mm auger
1шт.
36
1313798C2
SUPPORT
LH end sheet, for 20 thru 30 ft w/23.6 in., 600mm auger
1шт.
36
1313799C2
SUPPORT
RH end sheet, for 20 thru 30 ft w/23.6 in., 600mm auger
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
151446C1
SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"
5/16 x 1-1/4 slt-truss-hd
1шт.
116494C1
SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"
1шт.
37
187413C1
SUPPORT
LH outer, for 30.0 ft
1шт.
37
187414C1
SUPPORT
RH outer, for 30.0 ft
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
38
187408C3
SHEET
SUPPORT, LH outer, for 30.0 ft
1шт.
38
187409C3
SUPPORT
RH outer, for 30.0 ft
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1 crg type 5
1шт.
598813R1
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT, 1/2 x 1 crg type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
1шт.
39
1308247C1
ANGLE
stripper extension
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
4шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 znp slt-truss-hd
4шт.
180583C91
STRIPPER PACKAGE
PACKAGE, adjustable auger stripper bar, includes ref no. 31 and attaching hardware, parts accessory
1шт.
Выбрано товаров: 219
