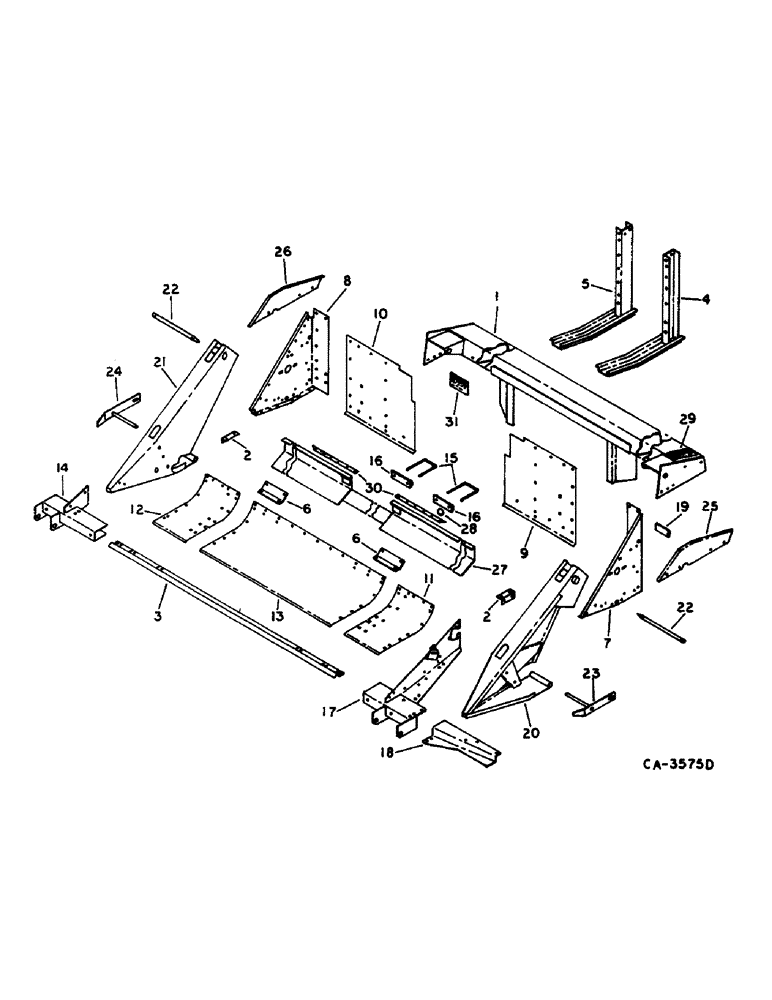

Запчасти Case IH 810 (C-06) - GRAIN HEADER, HEADER 10 FT., PRODUCT GRAPHICS (58) - ATTACHMENTS/HEADERS

1

184745C91

BEAM

ASSY, main, includes ref. nos. 29 and 31

1шт.

2

176685C2

ANGLE

stripper end

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

3

176639C1

KNIFE

BAR, cutter

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

20шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

28шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

8шт.

4

177150C2

SUPPORT

ASSY, J inner LH

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

9413969

NUT,5/8"-11, GB

5/8 CAD p/t lock type 5

2шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

2шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4 type 5

2шт.

5

176651C3

SUPPORT ASSY.

SUPPORT ASSY, J inner RH

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

9413969

NUT,5/8"-11, GB

5/8 CAD p/t lock type 5

2шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

2шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4 type 5

2шт.

6

176655C1

ANGLE

bottom support

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

7

176656C2

SHEET

LH end

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

5шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

3шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

4шт.

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

1/2 x 1-1/2 hex-hd flange

1шт.

8

176657C2

SHEET

RH end

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

5шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

3шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

5шт.

9

176658C1

PANEL

BACKSHEET, left

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

4шт.

10

176659C1

PANEL

BACKSHEET, right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

4шт.

11

176671C1

PLATE

SHEET, left bottom

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

8шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

14шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

5шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

6шт.

12

176672C1

PLATE

SHEET, right bottom

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

8шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

14шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

5шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

6шт.

13

176683C2

BOTTOM

SHEET, center bottom

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

14шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

13шт.

14

176836C1

SUPPORT ASSY.

CHANNEL ASSY, RH divider

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

8шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

6шт.

15

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

feeder latch

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

16

177140C1

BAR

feeder latch u-bolt

2шт.

17

178001C3

SUPPORT

ASSY, knife drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

6шт.

18

178004C1

SUPPORT

knife drive lower

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

6шт.

9412230

LOCK NUT

1/2 PHC p/t lock type 8

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

6шт.

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

.531 x 1.062 x .188 PHC hdn

2шт.

19

175311C1

REFLECTOR

red

2шт.

20

176812C1

DIVIDER

ASSY, LH, not for floating cutting bar

1шт.

21

176813C1

DIVIDER

ASSY, RH, not for floating cutting bar

1шт.

22

197959C2

AXLE PIN

PIN, upper pivot

2шт.

517843R1

COTTER PIN

PIN, 3/16 QA cotter

1шт.

27807R1

LOCK PIN,3/8" x 4", Slotted

Pin, 3/8" x 4", Slotted

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

1шт.

23

176830C2

BOLT

PIN ASSY, lower LH

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21975R1

SPLIT PIN/SAFETY PIN,5/16" x 13/16"

PIN, 5/16 x 13/16 std-hd

1шт.

24

176832C2

PIN ASSY.

PIN ASSY, lower RH

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21975R1

SPLIT PIN/SAFETY PIN,5/16" x 13/16"

PIN, 5/16 x 13/16 znd std-hd

1шт.

25

176937C2

GUARD

SHIELD, auger end LH, for use w/windrow pickup

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

26

176938C2

GUARD

SHIELD, auger end RH, for use w/windrow pickup

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

27

176625C1

BEAM

ASSY, lower

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

1шт.

28

155960C1

BELLEVILLE WASHER

u-bolt spring steel

8шт.

29

1320694C1

DECAL

PRODUCT GRAPHIC, danger instruction, replaces 176977C1

1шт.

30

180583C91

STRIPPER PACKAGE

auger adjustable, for floating cutter bar, parts accessory

1шт.

31

184624C1

PRODUCT GRAPHIC

caution, knife and reel

2шт.

1300902C91

KIT

PACKAGE, product graphics service, consists of

1шт.

1320694C1

DECAL

PRODUCT GRAPHIC, danger instruction (3), (NSS) product graphic, shaft align (2)

1шт.

184624C1

PRODUCT GRAPHIC

caution, knife & reel

2шт.

185944C1

PRODUCT GRAPHIC

danger, reel lift safety lock (2), (NSS) product graphic, max, lub, (NSS) product graphic, lub, 10 hours (3), (NSS) product graphic, lub, 50 hours (5), (NSS) product graphic, knive drive belt

1шт.

179749C2

PRODUCT GRAPHIC

danger

4шт.

547497R92

DECAL

PACKAGE, model designation, consists of, (NSS) model designation 8.78 x 2.45 (2), (NSS) model designation 14.08 x 4.50 (2), (NSS) model designation 20.04 x 7.57 (2), (NSS) model designation 15.20 x 7.56 (2)

1шт.
