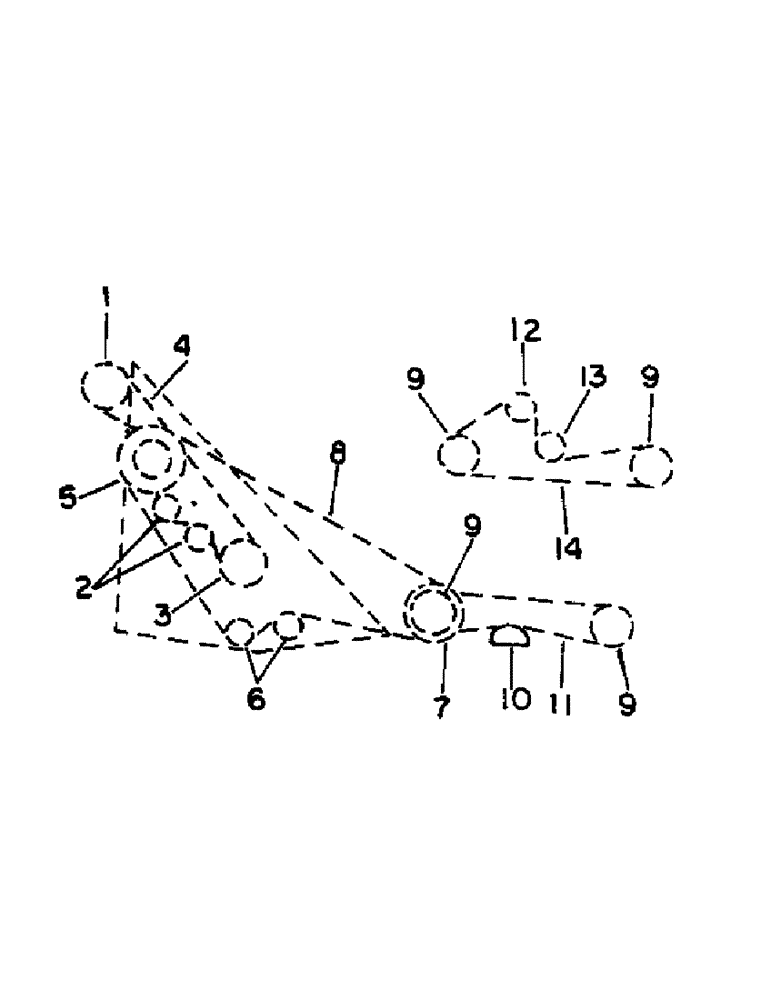

Запчасти Case IH 810 (C-05) - GRAIN HEADER, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, WINDROW PICKUP - RIGHT SIDE (58) - ATTACHMENTS/HEADERS

1

179034C91

DRIVE SPROCKET

SPROCKET W/BUSHING, jackshaft, 8T and 31T, refer to group 6 under mechanical jackshaft drive

1шт.

2

565442R91

SPROCKET

jackshaft idler, 17T, refer to group 6 under mechanical jackshaft drive

2шт.

3

177659C1

RETAINER

W/BEARING AND SPROCKET, refer to group 5 under header auger

1шт.

4

CHAIN ASSY, jackshaft drive, refer to group 6 under mechanical jackshaft drive

1шт.

5

178054C91

DRIVE SPROCKET

SPROCKET ASSY, mechanical drive, 18T and 42T, serial no. 12000 and below

1шт.

5

197589C91

SPROCKET ASSY.

SPROCKET ASSY, mechanical drive, 18T and 42T, serial no. 12001 thru 26000, refer to group 9 under mechanical drive RH

1шт.

6

565442R91

SPROCKET

idler, 17T, refer to group 9 under mechanical drive RH

2шт.

7

162251C1

SPROCKET ASSY.

SPROCKET, mechanical driven, 22T

1шт.

7

162248C1

SPROCKET ASSY.

SPROCKET, mechanical driven, 24T

1шт.

7

162249C1

SPROCKET ASSY.

SPROCKET, mechanical driven, 27T

1шт.

7

162252C1

SPROCKET ASSY.

SPROCKET, mechanical driven, 30T

1шт.

7

162250C1

DRIVE SPROCKET

SPROCKET, mechanical driven, 37T

1шт.

7

162254C1

SPROCKET ASSY.

SPROCKET, mechanical driven, 47T, refer to group 9 under mechanical drive RH

1шт.

8

CHAIN ASSY, mechanical drive, refer to group 9 under mechanical drive RH

1шт.

9

176901C1

SPROCKET ASSY.

SPROCKET ASSY, driven, 17T, refer to group 9 under windrow pickup, basic

2шт.

10

575874R1

BLOCK

chain tightener, refer to group 9 under windrow pickup, basic

1шт.

11

CHAIN ASSY, drive, refer to group 9 under windrow pickup, basic

1шт.

12

594706R91

SPROCKET ASSY.,15T

SPROCKET ASSY, hydraulic idler, 15T, refer to group 9 under hydraulic pickup drive

1шт.

13

179409C1

DRIVE SPROCKET

SPROCKET ASSY, hydraulic drive, 17T

1шт.

13

1305657C1

DRIVE SPROCKET

SPROCKET ASSY, drive, 28T, refer to group 9 under hydraulic pickup drive

1шт.

14

CHAIN ASSY, hydraulic drive extension, refer to group 9 under hydraulic pickup drive

1шт.
